SKU: CC02002

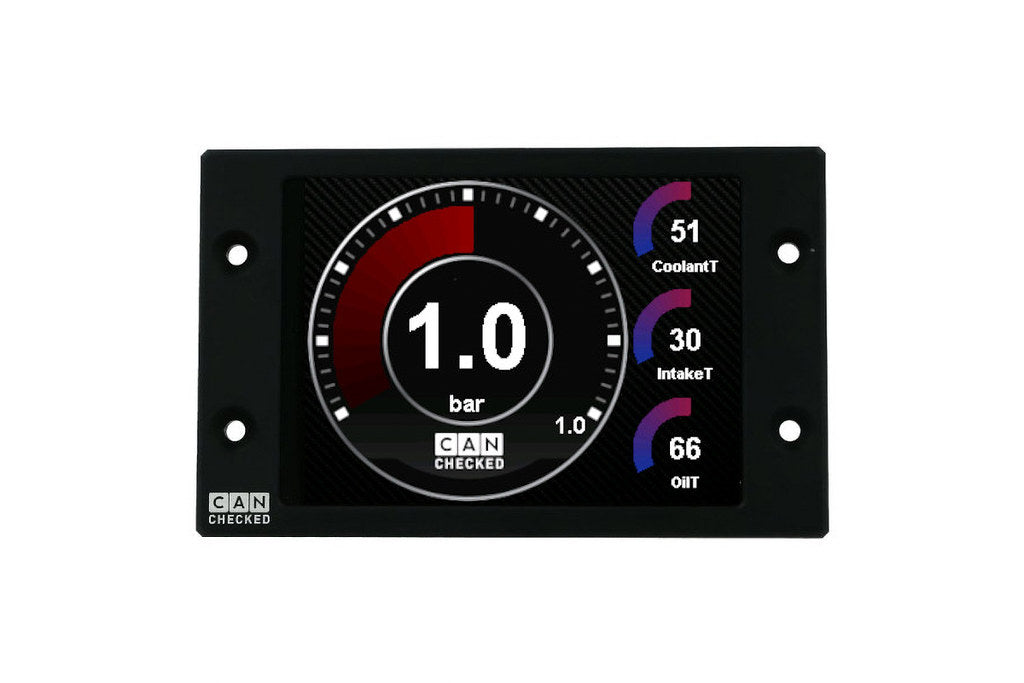

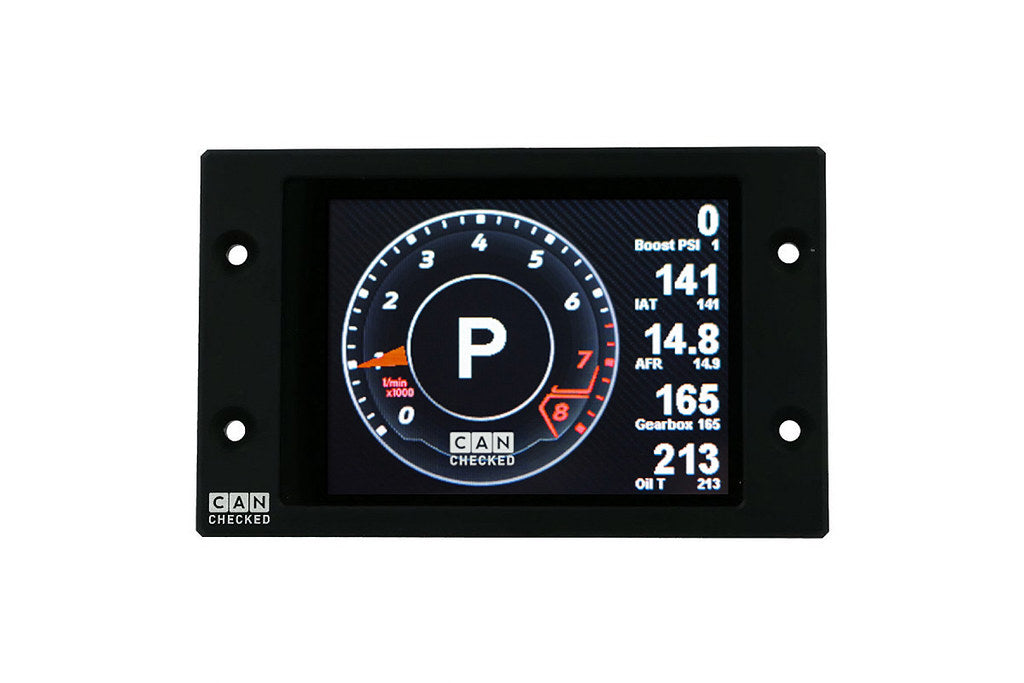

CANchecked MFD28 Multi Function Universal Display | 2.8" Gen2
$504.99
3 IN STOCK
The CANchecked MFD28 Multi Function Universal Display is a compact motorsport-inspired digital display solution engineered for enthusiasts who want expanded vehicle data visibility and customizable CAN bus integration within a clean OEM+ style package. Designed and manufactured in Germany, the MFD28 combines advanced display functionality, broad ECU compatibility, and flexible configuration options into a compact 2.8-inch touchscreen platform suitable for a wide range of automotive applications.
Featuring a symmetrical display layout that can be rotated by 90 degrees, the MFD28 offers flexible installation possibilities across a variety of interior layouts and custom dashboard configurations. The included CNC-milled display surround is manufactured in-house by CANchecked and is supplied with the required wiring, MicroSD card support, connectors, and wire harness for installation.
The MFD28 supports communication through CAN bus protocols including ISO 11898-2 and SAE J2284, allowing users to retrieve extensive ECU data depending on manufacturer support and CAN documentation availability. CANchecked’s system supports up to 128 sensors across CAN bus and internal inputs, while offering configurable pages and widget layouts through the integrated touchscreen interface or CANchecked’s Display Setup Software (DSS).
Designed for both street and motorsport applications, the MFD28 supports broadcast CAN data, OBD2 queries via 11-bit and 29-bit CAN communication, and advanced protocols including TP2.0 for VW/Audi and UDS communication. Whether monitoring engine parameters, custom sensors, or vehicle diagnostics, the MFD28 delivers a highly configurable digital display platform with extensive expandability.
Product Details
- Designed and manufactured in Germany
- 2.8-inch Gen2 TFT touchscreen display
- Heavy-duty CNC-milled display housing for enhanced durability and premium finish
- Symmetrical display layout allows 90-degree rotation
- Universal application compatibility
- Supports ISO 11898-2 and SAE J2284 CAN protocols
- Up to 128 configurable sensors supported
- Supports up to 10 configurable display pages
- Supports up to 64 widgets per page
- Includes MicroSD and MicroUSB support
- 4x analog inputs
- Integrated speed input support
- Optional external shift light support
- CAN bus switching functionality supported
- Supports OBD2 CAN communication (11-bit and 29-bit)
- Supports TP2.0 and UDS communication protocols
- Includes wiring, connectors, and wire harness for display installation
Technology
2.8-inch Touchscreen Display
Origin
Designed and manufactured in Germany
Interface
Seamless CAN bus integration
Vehicle Applications
- Universal application
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.
Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
Product Support Documents
Notes
- Supported values vary depending on vehicle platform and manufacturer ECU compatibility/CAN bus data output.
- If specific values are missing, additional sensors or data channels may be added later depending on the setup.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
Technical Resources
- MFD28 and MFD32 Gen2 Downloads and Documentation
- DSS Display Software Downloads and Connection Guide
- Add-Ons Components - Guides and Technical Information
- Manufacturer Product Page
- CANchecked Support Portal
SKU
- SKU: CC02002
Engineered for Seamless Installation
The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.
German Manufacturing
OEM quality display bezels designed, manufactured, and assembled in Germany.
CANchecked Engineering
Software and hardware developed entirely by CANchecked for seamless system integration.
Complete Installation Kit
Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).
Display Setup Software
Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
