The Baan Velgen G0X X5 / X6 / X7 Airmatic Lowering Link Set provides a simple and fully adjustable solution for reducing ride height on BMW's factory air-suspended SUV platform while retaining all factory suspension functionality. Designed specifically for the BMW G05 X5, BMW G06 X6, and BMW G07 X7, the system replaces the factory ride-height sensor links with precision-adjustable components that allow the suspension to settle lower without requiring electronic modules or software coding.
Unlike electronic lowering modules that manipulate suspension signals, the Baan Velgen system maintains factory suspension operation, self-leveling functions, ride quality, and drive mode functionality while allowing owners to dial in a more aggressive stance.
Vehicle Applications
- BMW G05 X5 equipped with factory two-axle air suspension
- BMW G06 X6 equipped with factory two-axle air suspension
- BMW G07 X7 equipped with factory two-axle air suspension
Installation Information
- Product: Baan Velgen G0X X5 / X6 / X7 Airmatic Lowering Link Set
- SKU: BV-G0X-ALLS
- Installation Difficulty: 3/5
- Estimated Install Time: 60–90 minutes
Tools Required
- 10mm socket
- Trim pry tool
- Tape measure or micrometer
Installation Notes
Before beginning installation, park the vehicle on a flat and level surface. The factory ride-height sensors utilize plastic ball mounts that can be damaged if excessive force is used during removal. Always support the sensor assemblies when separating the factory links.
Measure and document the vehicle's ride height before beginning the installation. This provides a useful baseline when dialing in your final ride height settings.
For optimal handling characteristics and tire wear, a professional alignment is recommended after adjusting ride height.
Product Overview
The Baan Velgen adjustable links replace the factory ride-height sensor arms and allow the air suspension system to recalibrate around a lower static ride height. By adjusting the length of the front and rear links, owners can reduce wheel gap and improve overall vehicle aesthetics while preserving OEM ride quality and suspension functionality.
Shop the Baan Velgen G0X X5 / X6 / X7 Airmatic Lowering Link Set
Baan Velgen Airmatic Lowering Link Installation Steps
Step 1: Locate the Front Ride Height Sensor
Locate the front ride-height sensor assembly behind the front wheel. The factory link connects the upper control arm to the sensor assembly. Use care throughout the process as the factory plastic sensor pins can be fragile.
Step 2: Remove the Upper Control Arm Fastener
Using a 10mm socket, remove the nut securing the factory link bracket to the upper control arm.
Step 3: Remove the Factory Front Link
Release the sensor-side retaining tabs and carefully remove the factory arm assembly from the vehicle.
Step 4: Separate the First Ball Mount
Place the factory arm on a flat surface and carefully pivot the arm upward until it releases from the ball mount.
Step 5: Remove the Opposite Ball Mount
Using a trim pry tool, carefully separate the opposite side of the arm while supporting the ball mount.
Step 6: Locate the Rear Ride Height Sensor
Move to the rear suspension and locate the rear sensor and factory link assembly.
Step 7: Remove Rear Lower Mount
Remove the 10mm fastener securing the lower mount.
Step 8: Remove the Rear Arm Assembly
Support the sensor and carefully pivot the arm away from the sensor ball until the assembly can be removed.
Step 9: Separate the Rear Ball Mount
On a flat work surface, support the ball mount and carefully separate the rear arm assembly.
Step 10: Compare Front and Rear Factory Arms
The rear arm is clocked approximately 90 degrees relative to the front arm, although both arms share the same overall length.
Step 11: Configure Ride Height Adjustment
To achieve approximately a one-inch drop, lengthen the front links by 5mm and shorten the rear links by 5mm. This serves as the recommended starting point and can be fine-tuned after the suspension settles.
Step 12: Lock the Adjustments
Tighten the jam nuts to secure the selected adjustment.
Step 13: Remove Locking Pins
Rotate and remove the locking pins from the adjustable links.
Step 14: Assemble the Front Adjustable Link
Install the ball mount into the front adjustable link and secure it using the supplied locking pin.
Step 15: Complete the Front Adjustable Link Assembly
Install the opposite ball mount and confirm the front adjustable link is fully assembled and ready for installation.
Step 16: Assemble the Rear Adjustable Link
Install the ball mounts into the rear adjustable link and confirm the assembly is ready for installation.
Step 17: Install Rear Link
Install the rear adjustable link onto the sensor ball and verify the link is fully seated before installing the locking clip.
Step 18: Reinstall Lower Mount
Reinstall the lower mount and 10mm fastener. Repeat the reverse of the removal procedure to install the front adjustable link.
Completed Installation

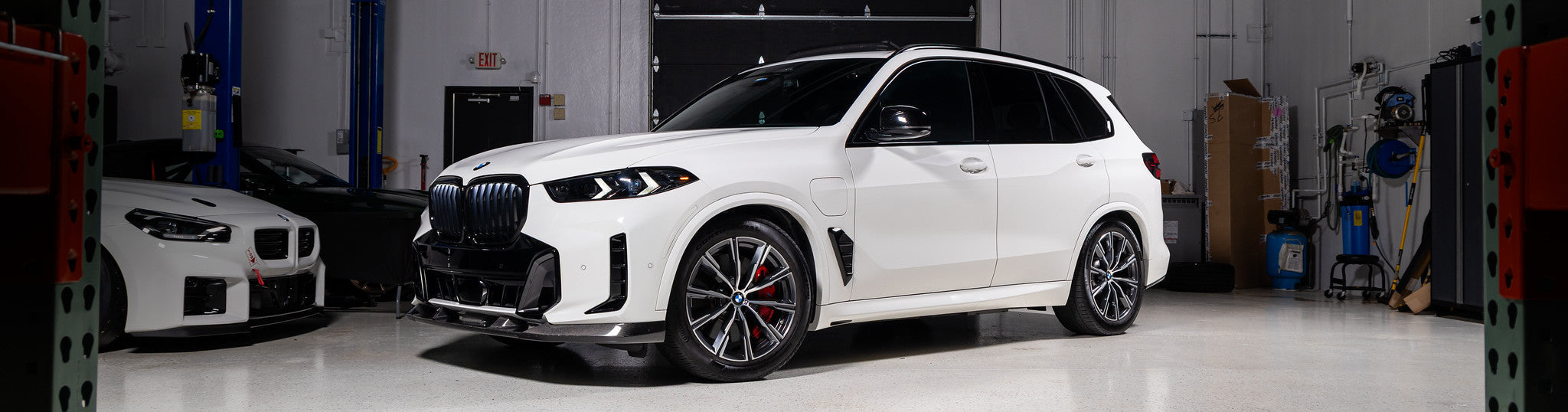

With the installation complete, allow the air suspension to settle on a level surface before measuring final ride height. Using the recommended settings, the vehicle should sit approximately one inch lower than factory ride height while maintaining full factory suspension functionality.
Final Thoughts
For owners looking to reduce wheel gap and improve the stance of their BMW X5, BMW X6, or BMW X7 without sacrificing ride quality, the Baan Velgen G0X X5 / X6 / X7 Airmatic Lowering Link Set offers one of the simplest and most effective upgrades available for BMW's factory air suspension platform.
