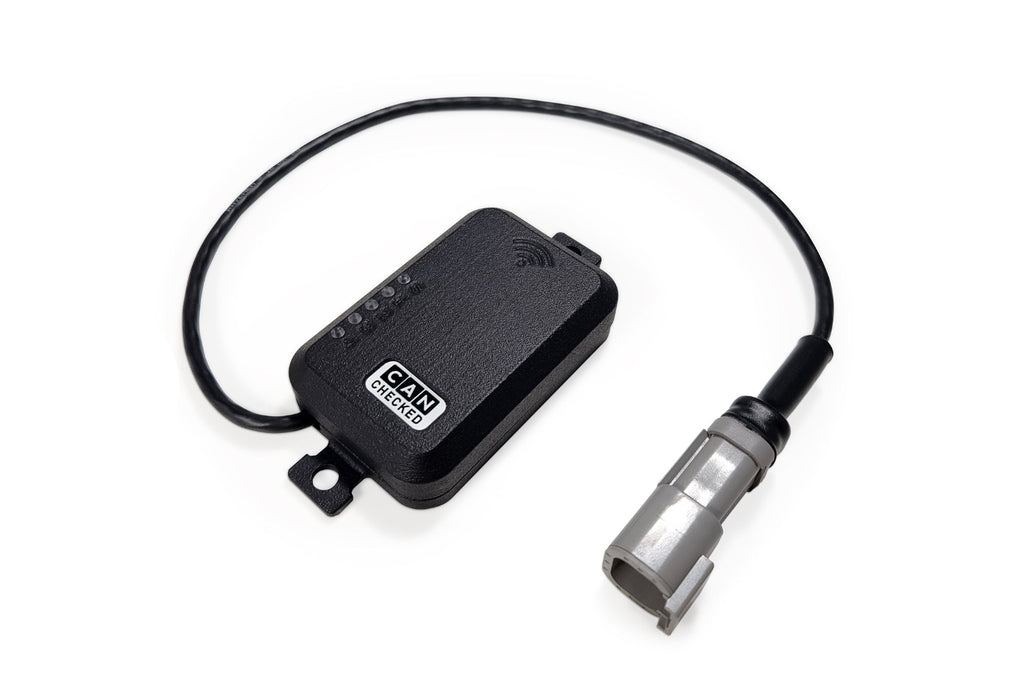

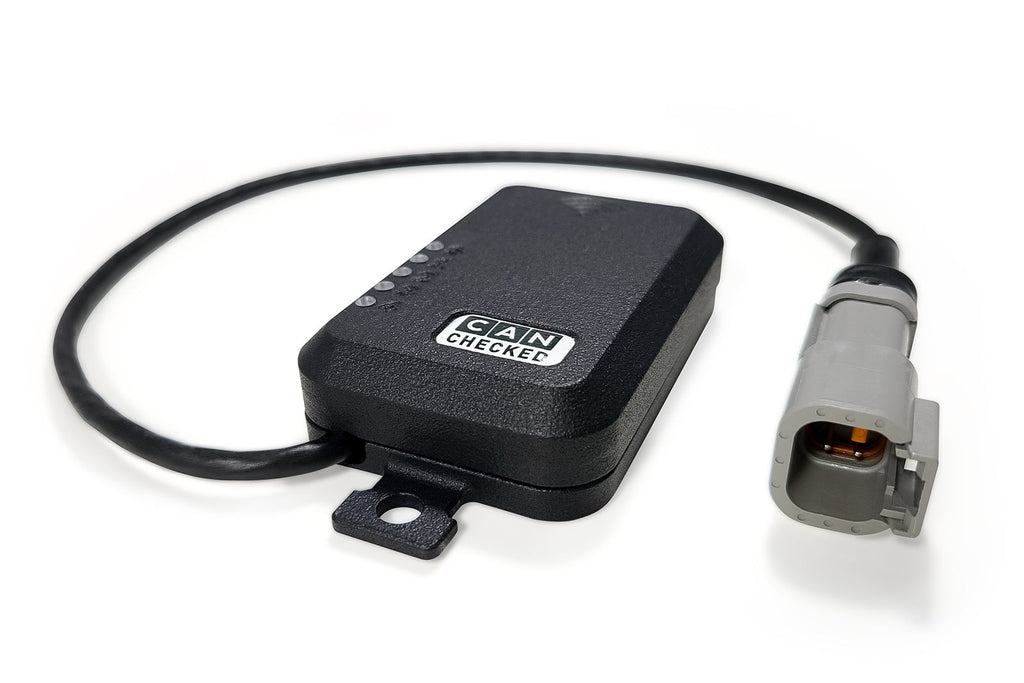

CANchecked BMR01 Replacement Wireless Receiver for Infrared Brake Temp Sensors
$359.99
AVAILABLE TO ORDER
The CANchecked BMR01 Wireless Tire Temperature Monitoring Receiver is a replacement WiFi-enabled receiver component designed to work with the BMU01 infrared brake disc temperature sensors to display data into a compatible CANchecked display or monitoring setup.
It is well suited for projects that require wireless connectivity with the advanced wireless multi-channel infrared sensors.
This is a single replacement WiFi receiver for the full BMU04 kit which provides real-time, high-precision data for optimized temperature management at the track.
Product Details
- Replacement WiFi receiver box for use with the BMU01 wireless brake disc temperature monitoring sensors
- Supply Voltage: 5-20V
- Current Consumption: 50mA
- Cable: 0.5m AWG22
- Connector: DTM04-4P
- CAN Standard: 2.0A (11-bit ID) or 2.0B
- Bit Rate: 500Kbps (Standard) / 1Mbps
- Byte Order: Big Endian (MSB first)
- CAN Termination: none
- Base CAN-ID: Standard 0x310 (Tire) / 0x210 (Brake), configurable via CAN
- Temperature Conversion: -200°C offset, 0.1°C / bit
Interface
Direct CAN Bus Communication
Vehicle Applications
- Universal application
Product Support Documents
Notes
- DBC file documentation may be required for advanced CAN integration.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
