SKU: CC22942

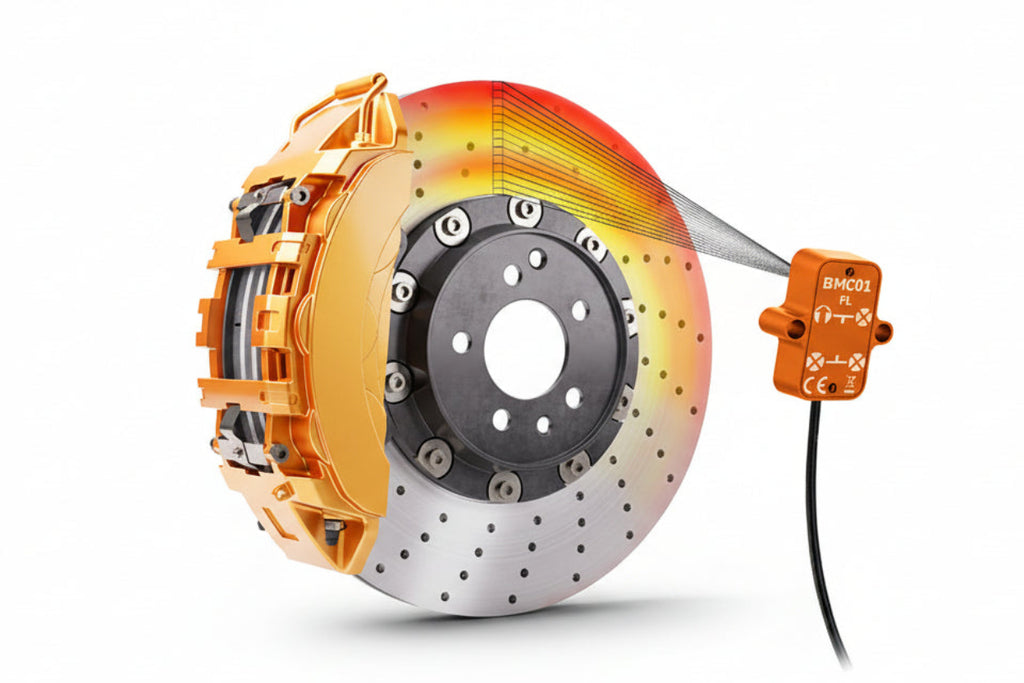

CANchecked BMC01 Brake Temperature Single Replacement Monitor - Wired
$404.99
AVAILABLE TO ORDER
The CANchecked BMC01 replacement single Brake Temperature Cabled Monitor is part of a purpose-built monitoring solution designed to help drivers and builders keep a closer eye on temperature and vehicle condition data in high-performance applications while utilizing wired sensors to provide reliable power, signal, and CAN communication in demanding automotive and motorsport environments.
With a direct cable connection, it is well suited for projects that require motorsport-focused durability. Enhance your racing or high-performance setup with a comprehensive set of four accurate, real-time wired temperature monitors providing unmatched convenience and reliability, making it easier than ever to track and manage brake performance data.
This is a single replacement multi-channel sensor (1 is used for each corner of the vehicle) with a matching DTM connector and pin set. The full kit provides real-time, high-precision data for optimized temperature management, specifically designed to meet the rigorous demands of motorsport environments.
Product Details
- Ultimate Wired Connection Reliability
- Advanced Multi-Channel Infrared Monitoring
- Configurable 16 temperature measurement channels per brake disc sensor
- Adjustable refresh rate up to 64Hz for precise, real-time data insights
- High Precision Sensors with Wide Temperature Range
- Temp range: -40° to +1200°C
- Accuracy: +/- 1% up to 150°C and +/- 3% over 150°C
- Field of view: 110° x 6° for full coverage, with an optional 55° for focused measurements
- Rugged and Compact Design
- Durable aluminum/polyamide housing
- IP66 rated for tough environments
- Dimensions: 48.6 x 25.75 x 13.3 mm per sensor
- Weight: 25g per sensor
- Operating temp: -40° to 85°C
- Also available separately is the sensor protection lens kit: Available to enhance durability and protection
What’s Included
- 1x BMC01 Infrared Temperature Sensor with 0.5m AWG22 cable and a male DTM04-4P connector
- 1x DTM06-4S female connector with pin set
Channels
16 Measurement Channels Per Sensor
Accuracy
±1°C Infrared Temperature Monitoring
Interface
Direct CAN Bus Communication
Vehicle Applications
- Universal application
Product Support Documents
Notes
- DBC file documentation may be required for advanced CAN integration.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
