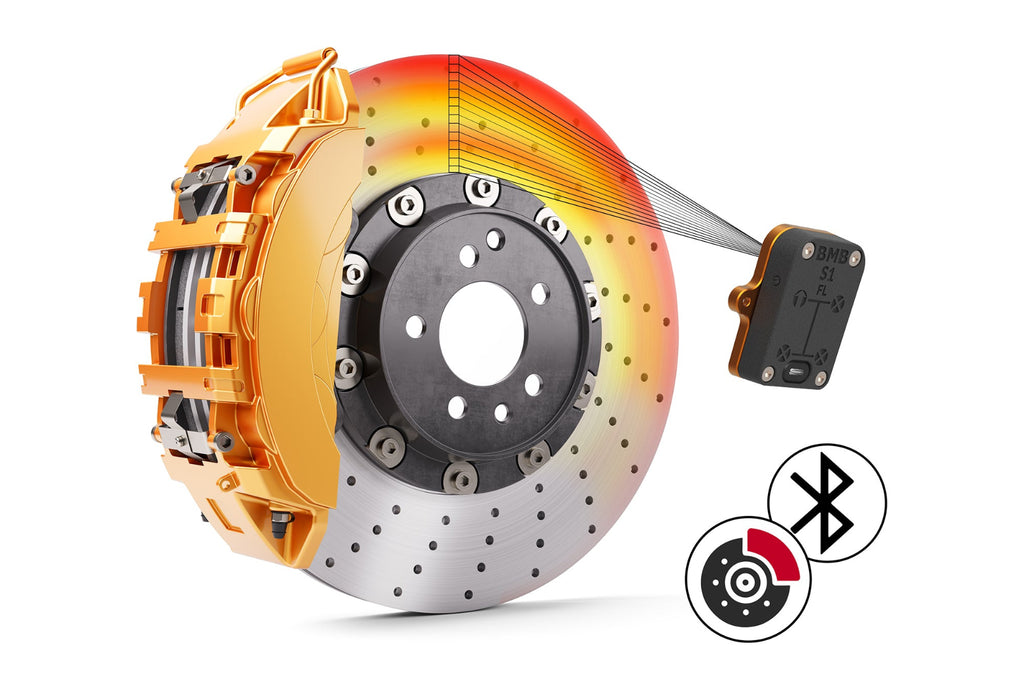

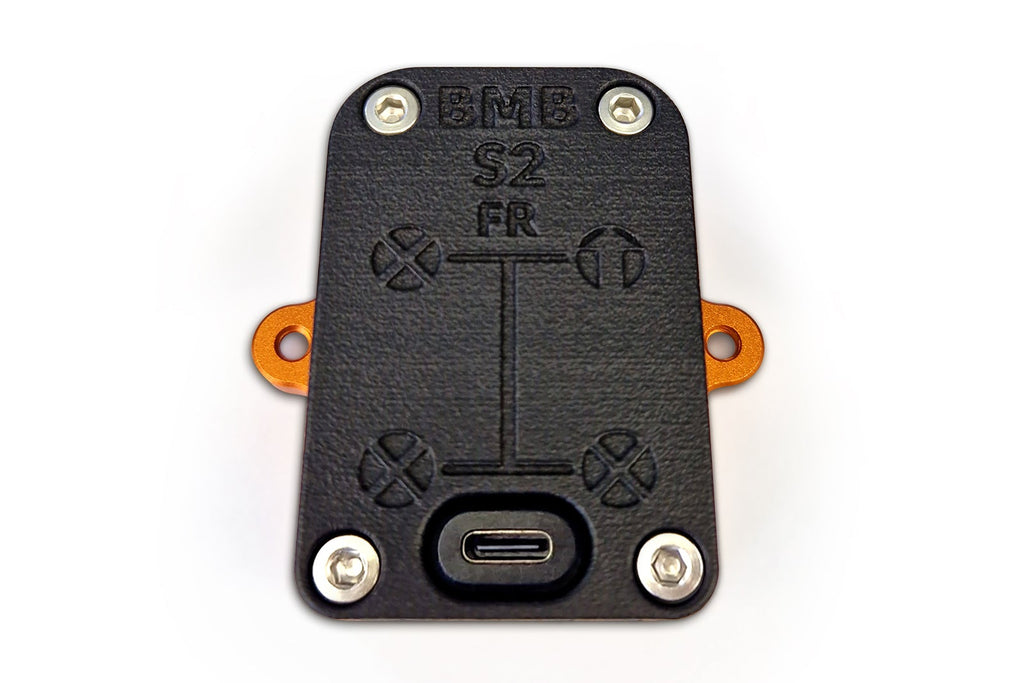

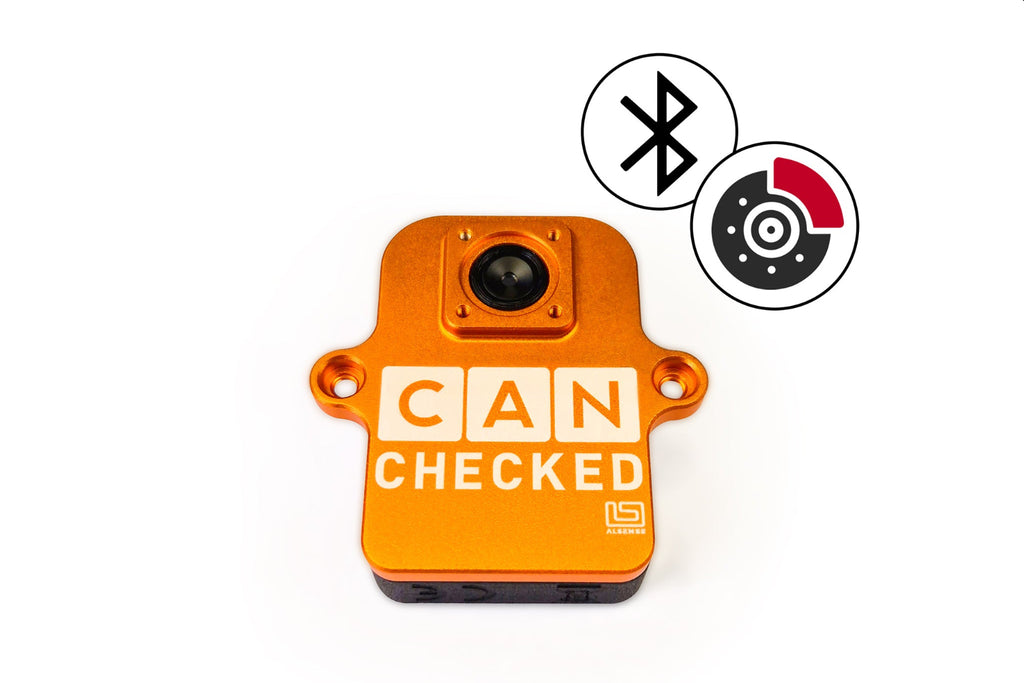

CANchecked BMB01 Brake Temperature Single Replacement Monitor - Bluetooth BLE

The CANchecked BMB01 replacement single Brake Temperature Bluetooth (BLE) Monitor is part of a purpose-built monitoring solution designed to help drivers and builders keep a closer eye on temperature and vehicle condition data in high-performance applications. Enhance your vehicle's performance monitoring with Bluetooth-enabled temperature monitors featuring an advanced infrared temperature sensor with CAN connectivity.

It is well suited for projects that require wireless sensor communication, temperature monitoring, and brake condition monitoring. Perfect for both professional racing and high-performance street vehicle testing, a complete set of 4 Bluetooth Temperature Monitors provide unmatched convenience and reliability, making it easier than ever to track and manage brake performance data. A special feature of the Bluetooth connectivity is that the sensors can be paired with various programs or mobile apps, such as Harry's Laptimer.

This is a single replacement multi-channel sensor (1 is used for each corner of the vehicle); the full kit provides real-time, high-precision data for optimized temperature management at the track.

Product Details

• Wireless via Bluetooth Connectivity and Easy-to-Install: Simple setup with quick transfer between vehicles
  • The temperature sensors can also be paired with various programs or mobile apps, such as Harry's Laptimer.
• Advanced Multi-Channel Infrared Monitoring
  • Configurable 3 temperature measurement channels per brake disc sensor
  • Adjustable refresh rate up to 10Hz for precise, real-time data insights
• Rechargeable Battery for Extended Use
  • 250mAh battery (USB-C charged) in each sensor
  • Delivers up to 15 hours of active track use per charge
• High Precision Sensors with Wide Temperature Range
  • Temp range: -40° to +1200°C
  • Accuracy: +/- 1% up to 150°C and +/- 3% over 150°C
  • Field of view: 110° x 6° for full coverage, with an optional 55° for focused measurements
• Rugged and Compact Design
  • Durable aluminum/polyamide housing
  • IP65 rated for tough environments

  • Dimensions: 64.0 x 42.0 x 17.5 mm
  • Weight: 57g
  • Operating temp: -40° to 85°C
• Also available separately is the sensor protection lens kit: Available to enhance durability and protection

What’s Included

• 1x BMB01 Infrared Temperature Sensor
