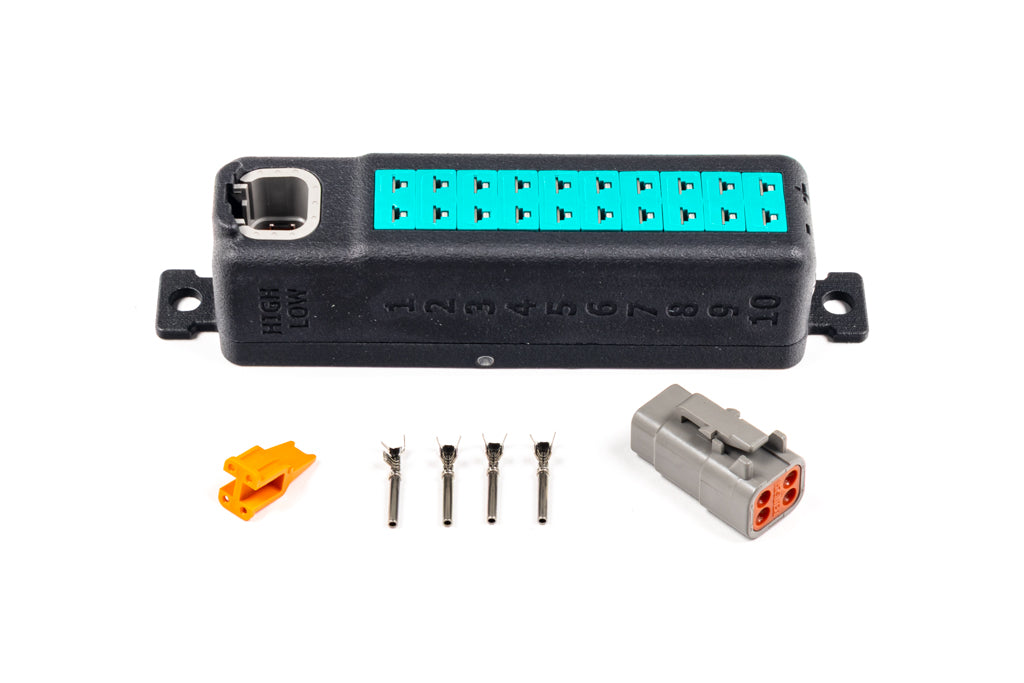

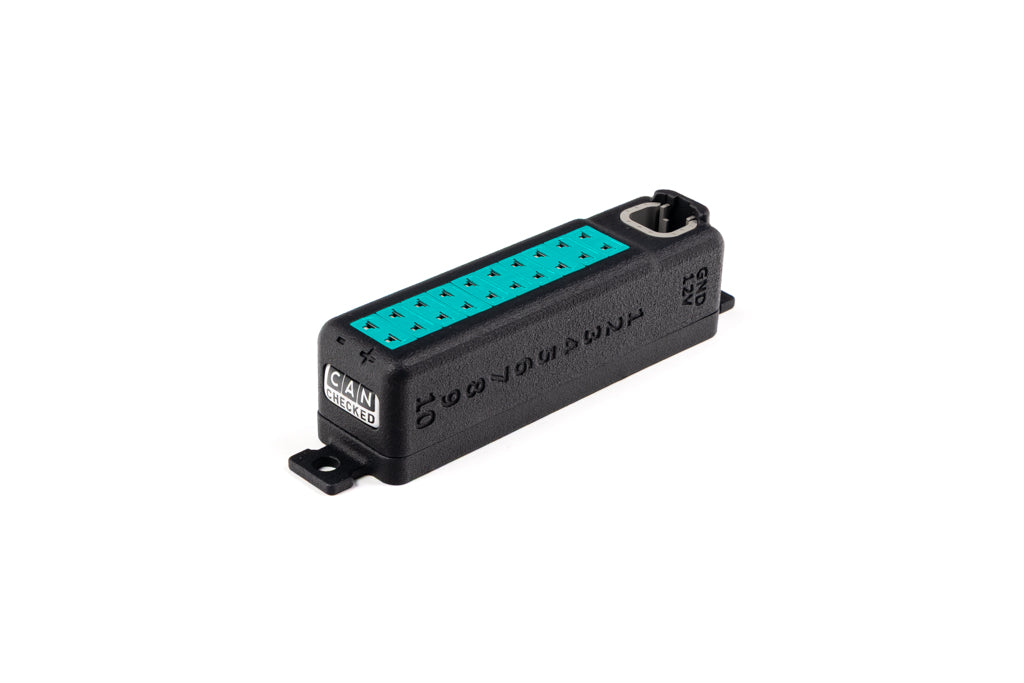

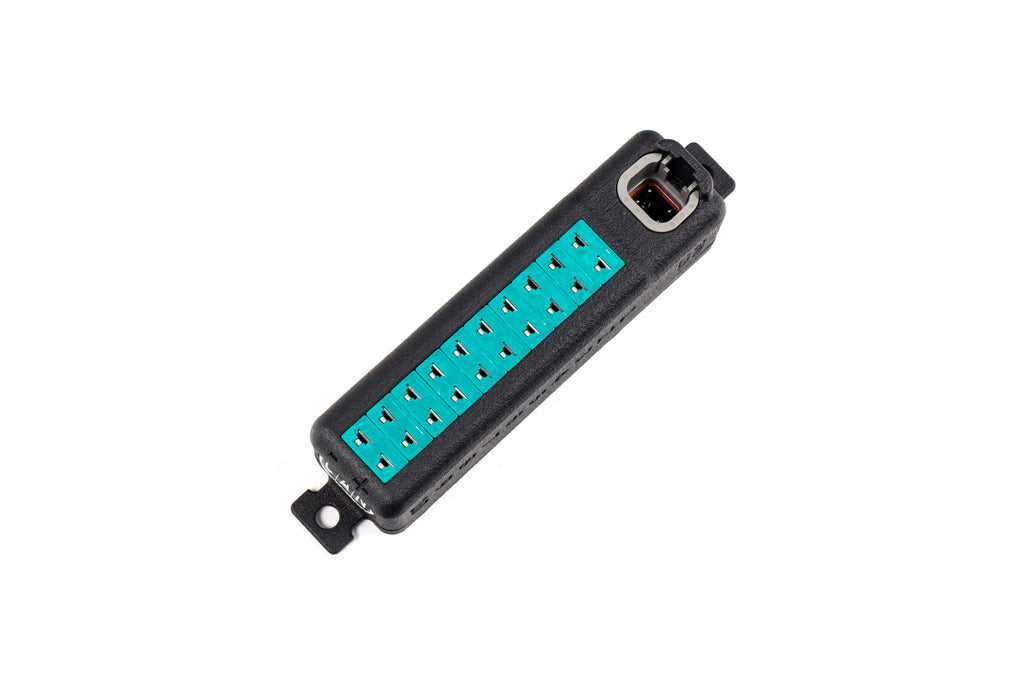

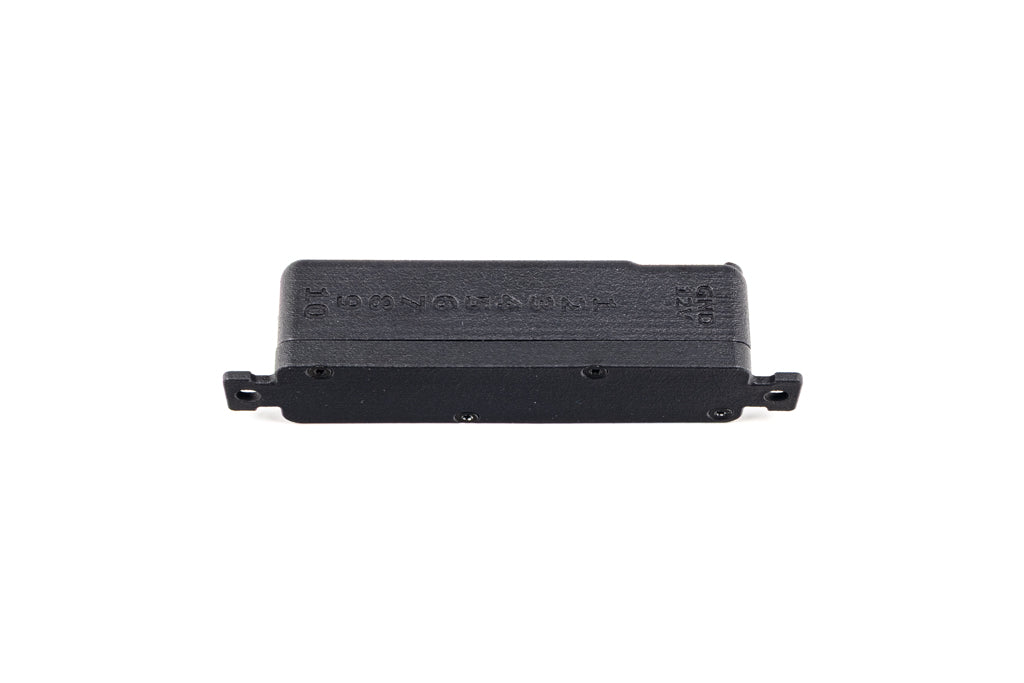

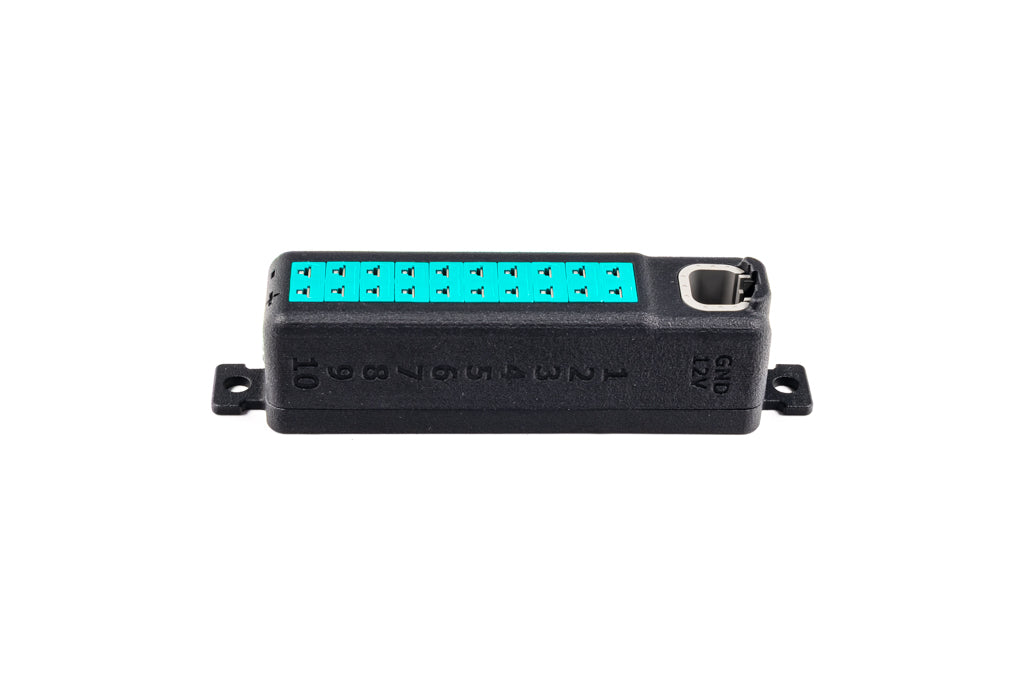

CANchecked TCC10 Thermocouple CAN Converter with 4-pin DTM Connector

The CANchecked TCC10 Thermo Couple Converter with DTM 4-way is the ten-channel flagship of the TCCXX family, delivering direct CAN bus transmission of thermocouple data rather than the analog 0–5V output used by the entry-level TCC01. With support for up to ten Type-K thermocouples, the TCC10 is built for motorsport and high-performance applications where multiple temperature channels must be monitored simultaneously and transmitted reliably across a CAN network.

Type-K thermocouples cover an enormous variety of measurement tasks: exhaust gas temperature (EGT), pre- and post-intercooler temperatures, cylinder head temperatures, water temperature, oil temperature, and more. Every reading is cold-junction compensated, with a measurement range of 0 to 1250°C and a resolution of 0.25°C (14 bits) for exceptional precision. The TCC10 connects to the CAN bus via a practical four-pin DTM connector and supports the CAN 2.0A/B standard with flexible configuration, ensuring compatibility with devices from a wide range of manufacturers. WLAN connectivity is a standout feature: configure the module, push firmware updates, and view real-time temperature data and thermocouple status from any smartphone or PC over Wi-Fi.

Key Features

• Ten Type-K Thermocouple Inputs: Connect up to 10 sensors for simultaneous monitoring across EGT, intercooler, oil, water, and cylinder head channels
• Direct CAN Bus Output: Transmits data via CAN rather than analog 0–5V signal, enabling clean digital integration with data loggers and ECUs
• Measurement Range: 0 to 1250°C with cold-junction compensation and 0.25°C (14-bit) resolution
• CAN 2.0A/B Support: Selectable speeds of 125 kbps, 250 kbps, 500 kbps, or 1 Mbps; configurable Big or Little Endian byte order
• Emulation Modes: Standard, MoTeC, Haltech, Ecumaster, or AEMnet — compatible with Emtron, MaxxECU, MoTeC, Haltech, Ecumaster (Black/Classic), LinkECU, and many more
• WLAN Connectivity: Configure CAN speed, emulation mode, and CAN bus ID wirelessly; retrieve live data and thermocouple status from a smartphone or PC
• DTM 4-pin Connector: Robust four-pin DTM connector for CAN bus and power; miniaturized K connectors for thermocouple inputs

The CANchecked TCC10 Thermo Couple Converter with DTM 4-way delivers a modular, high-channel-count temperature monitoring solution backed by CANchecked's engineering quality — ideal for any build that demands comprehensive thermal data over CAN.
