The release of the Acexxon G87 M2 Full Replacement Rear Reflector Insert Set gives BMW enthusiasts a clean OEM+ solution for eliminating the factory red reflectors while maintaining factory-quality fitment and functionality. Designed specifically for the BMW G87 M2, these full replacement inserts completely replace the original reflector assemblies and retain all factory mounting locations and PDC sensor provisions.
Unlike insert-style solutions that install within the factory reflector housing, the Acexxon design replaces the entire assembly for a more integrated appearance. Developed using extensive 3D scanning, prototype testing, and fitment validation, the finished product delivers a seamless installation process while preserving OEM-level panel alignment and sensor functionality.
To help owners complete the installation confidently, we've created this step-by-step DIY guide covering the entire replacement process.
Vehicle: BMW G87 M2
Product: Acexxon Full Replacement Rear Reflector Insert Set
Estimated Installation Time: 30 Minutes
Installation Difficulty: 2/5
Tools Required
- 10mm Socket
- T-20 Torx Driver
- Pry Tool
Step 1: Remove the Lower Bumper Fasteners
Remove the four 10mm fasteners securing the lower section of the rear bumper.
Step 2: Access the Rear Bumper Retaining Screw
Carefully pull back the wheel well liner to gain access to the bumper retaining screw.
Step 3: Remove the T-20 Torx Screw
Remove the T-20 Torx screw securing the rear bumper to the quarter panel.
Step 4: Release the Rear Bumper Tabs
Gently pull the bumper outward to release the retaining tabs securing it to the vehicle.
Step 5: Locate the Factory Reflector Retaining Tabs
With the bumper side released, you can now access the backside of the factory reflector insert. Note the retaining tabs visible through the bumper opening. Three of the five tabs are visible in this image.
Step 6: Release the Center Retaining Tab
Using a pry tool or your fingers, push the center tab toward the middle of the insert while applying rearward pressure to begin releasing the assembly from the bumper.
Step 7: Remove the Factory Reflector Assembly
Once all retaining tabs have been disengaged, remove the factory reflector assembly from the rear bumper.
Step 8: Transfer the PDC Sensor
Release the PDC sensor by gently pulling the retaining tabs away from the sensor body. Once released, remove the sensor from the factory reflector assembly.
Step 9: Reposition the Rear Bumper
Align the bumper-side tabs with the retaining slots in the quarter panel and begin positioning the bumper back into place.
Step 10: Slide the Bumper Into Position
Work the front edge of the bumper forward until it passes the mounting location and seats correctly.
Step 11: Re-Engage the Bumper Retaining Tabs
Press along the bumper seam to fully engage all retaining tabs.
Step 12: Reinstall the T-20 Torx Fastener
Reinstall the T-20 Torx screw while ensuring all panel gaps remain flush and properly aligned.
Step 13: Reinstall the Lower Fasteners
Reinstall the four 10mm fasteners removed earlier.
Step 14: Install the PDC Sensor Into the Acexxon Insert
Install the factory PDC sensor into the Acexxon replacement insert, ensuring all retaining tabs are fully engaged.
Step 15: Verify Grommet Position
Inspect the rubber grommet around the sensor and verify it is seated correctly without being rolled, twisted, or pinched.
Step 16: Install the Acexxon Rear Reflector Insert
Install the new Acexxon reflector insert into the bumper, making sure all retaining tabs fully engage. Repeat the process on the opposite side of the vehicle.

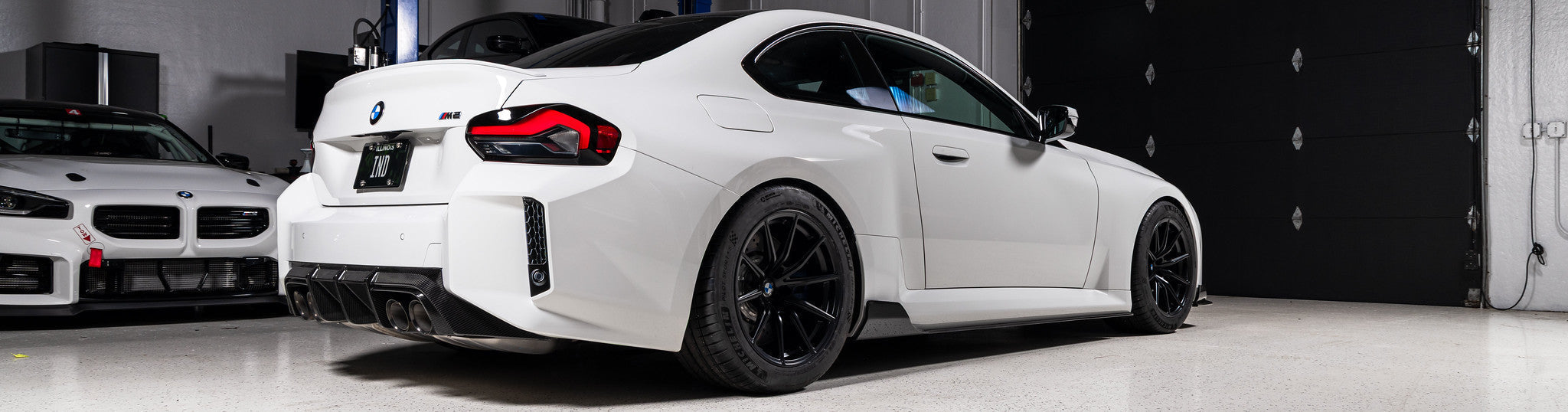

Completed Installation
The finished result removes the factory red reflector elements and replaces them with a clean gloss black design that integrates seamlessly with the rear bumper. Available in both Honeycomb and Horizontal Slat configurations, the Acexxon Full Replacement Rear Reflector Insert Set provides one of the cleanest OEM+ rear styling upgrades currently available for the BMW G87 M2.
