Ohlins R8 (2nd Gen.) TTX-PRO Pro-level Performance
The Öhlins TTX Pro Coilover System for the Audi R8 (4S) is a race-derived suspension package engineered for drivers who demand the highest level of damper performance on circuit. Built around Öhlins' TTX — Twin Tube eXtreme — technology, the system delivers precise, high-resolution control over damping forces, drawing on Öhlins' decades of development in Formula 1, IndyCar, and MotoGP programs.
TTX technology uses a twin-tube damper architecture in which an inner working tube and outer reserve tube work in concert to manage fluid flow with exceptional efficiency. Separate compression and rebound adjusters give the driver fully independent control over each damping phase, allowing the suspension to be tuned precisely for track conditions, tire compound, or driving style. The system can be further upgraded to three or four-way adjustability for advanced setup requirements.
Öhlins' temperature-compensating design maintains consistent damping characteristics as fluid temperatures rise during sustained track use. This ensures repeatable lap times and predictable handling behavior even in the most demanding conditions — critical for a car of the R8's performance level.
Ride height adjustment is handled independently from spring preload, allowing precise corner-weight tuning and rake adjustment without altering spring characteristics or reducing suspension travel.
Product Details
- SKU: AUV MT00S1
- Öhlins TTX (Twin Tube eXtreme) technology
- 2-way independent adjustment: separate compression and rebound knobs
- Upgradeable to 3-way or 4-way adjustability
- Spring rates: 60/120/140 N/mm front, 60/140/140 N/mm rear (as specified)
- Separate ride height adjustment independent of spring preload
- Twin-tube damper construction
- Rebuildable and serviceable dampers
- Designed for serious track and race use

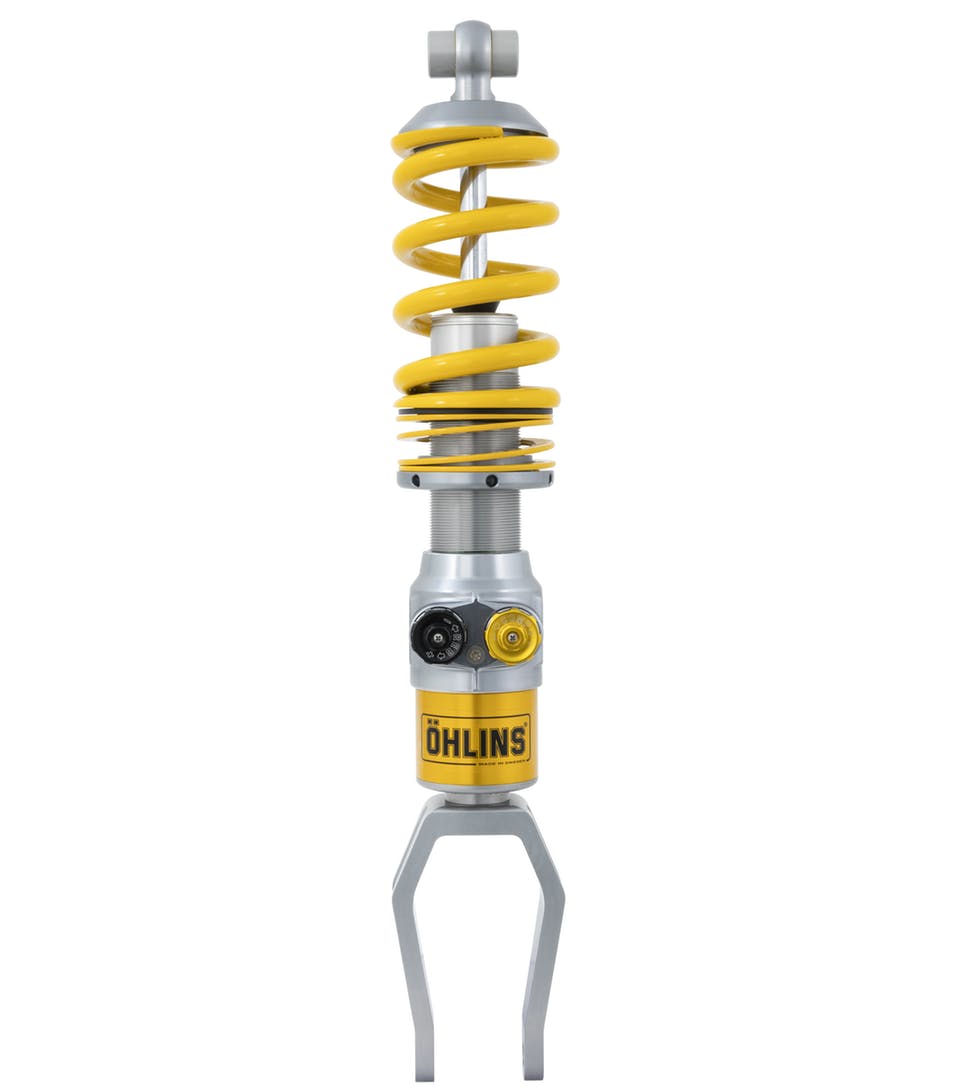

Front Suspension Features
- TTX twin-tube damper with independent compression and rebound adjustment
- Spring preload adjustment
- Ride height adjustment via threaded lower mount
- High spring rate configuration for track-level cornering loads

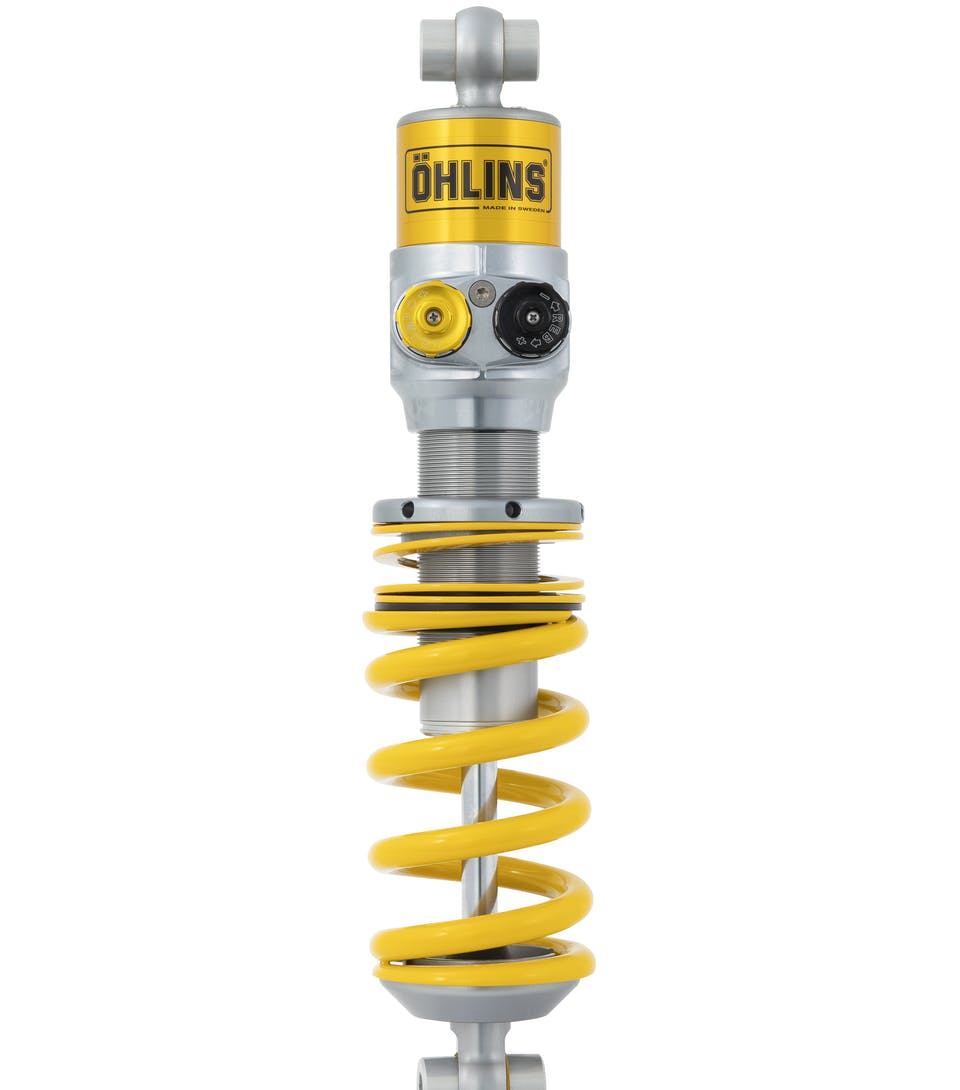

Rear Suspension Features
- TTX twin-tube damper with independent compression and rebound adjustment
- Spring preload adjustment
- Independent ride height adjustment
- High spring rate configuration matched to the R8 platform
Vehicle Applications
- Audi R8 (4S)
Technical Resources
- Mounting Instructions — Öhlins Auto Shock Absorber, Audi R8 (AUV MS00) Front
- Mounting Instructions — Öhlins Cancellation Kit 35020-17
- Owner's Manual — Öhlins TTX46CS / TTX36
Notes
- Suspension components are non-returnable once installed
- This system does not function with the factory magnetic ride or electronic damper control system — an Öhlins cancellation kit (35020-17) is required to suppress dashboard warnings
