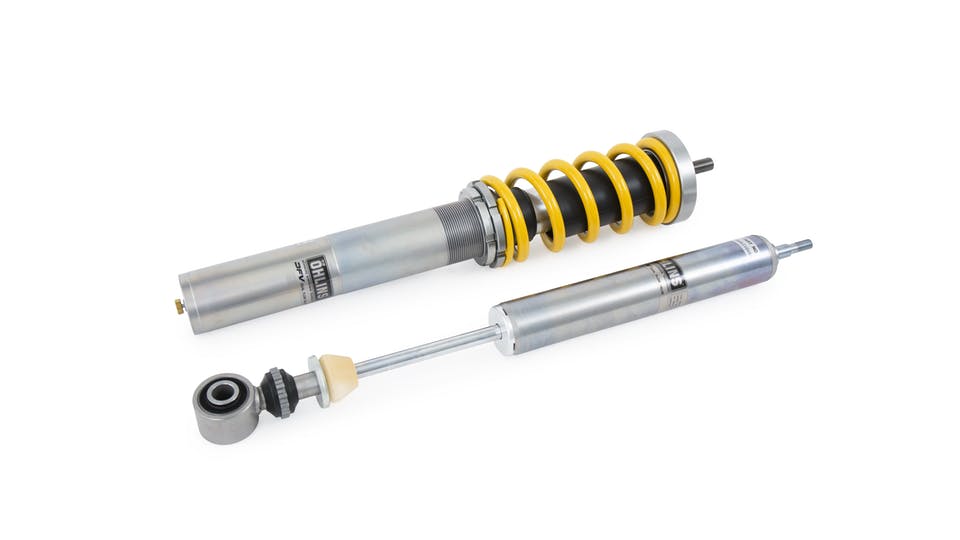

Ohlins MK5 / MK6 Golf GTI Coilover Suspension - Road & Track
The Öhlins Road & Track Coilover Suspension for the Volkswagen Golf GTI (MK5 and MK6) is engineered to deliver a precise balance between track-focused performance and everyday drivability. Built around Öhlins' Dual Flow Valve (DFV) technology, this system provides exceptional control over both compression and rebound damping, allowing the suspension to respond accurately to changing road and circuit conditions while maintaining consistent tire contact throughout.
Unlike conventional damper designs, the DFV system manages fluid flow across the full range of shaft speeds. At low shaft speeds, fluid passes through the bleed circuit for controlled, compliant damping. As shaft speed increases, flow transitions through the piston ports, and under high load or sudden impacts, the DFV opens to allow additional flow. This results in improved bump absorption, increased traction, and reduced harshness — making the most of the Golf GTI's nimble, front-wheel-drive chassis without compromising ride quality.
Öhlins compensates for heat-induced changes in fluid viscosity using a temperature-reactive needle bleed valve, which adjusts flow as damper temperatures rise during extended track use. This ensures consistent, predictable handling from street driving through sustained circuit sessions, regardless of ambient or operating conditions.
Ride height adjustment is handled independently from spring preload through a threaded lower mount design. This allows precise lowering without altering spring characteristics or reducing suspension travel, preserving the engineered balance of the system across all driving conditions.
Product Details
- SKU: VWS MT10S1
- Öhlins Dual Flow Valve (DFV) technology
- Single external adjuster with 25 clicks controlling compression and rebound (1-way)
- Lowering range: approximately 10–20mm front and rear
- Spring rates: 70 N/mm front, 70 N/mm rear
- Separate ride height adjustment independent of spring preload
- Monotube damper construction
- Rebuildable and serviceable dampers
- Designed for both street and track use
Front Suspension Features

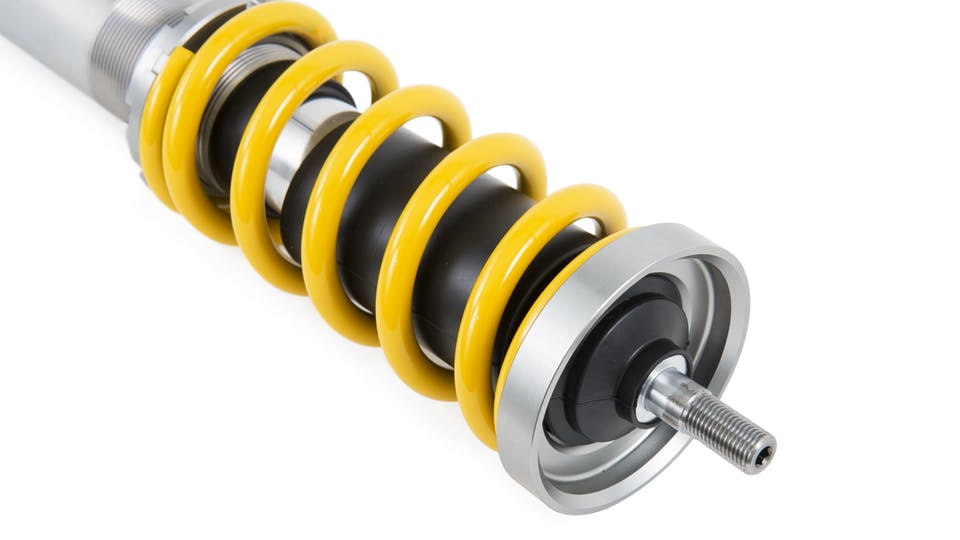

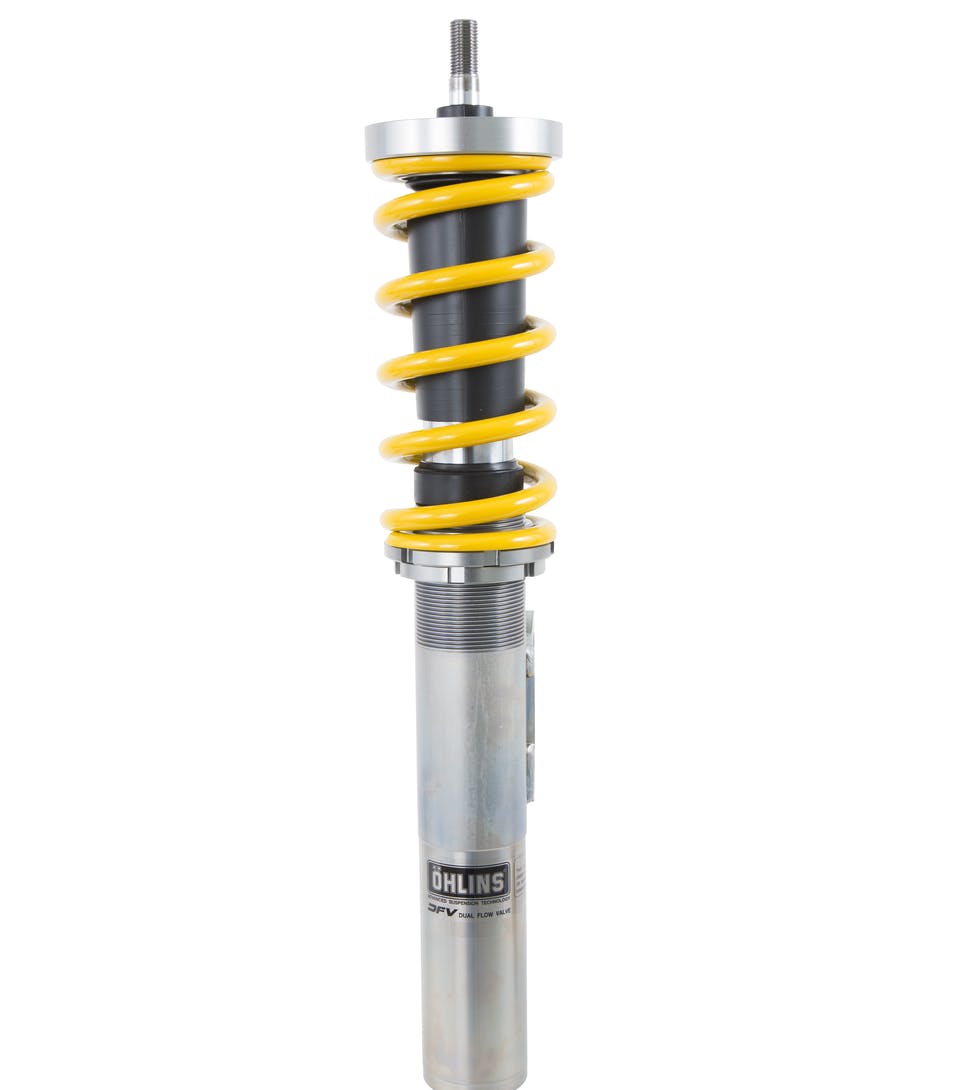

- McPherson strut design with inverted monotube construction
- Spring preload adjustment
- Separate damper length adjustment for ride height
- Compatible with factory top mounts
Rear Suspension Features

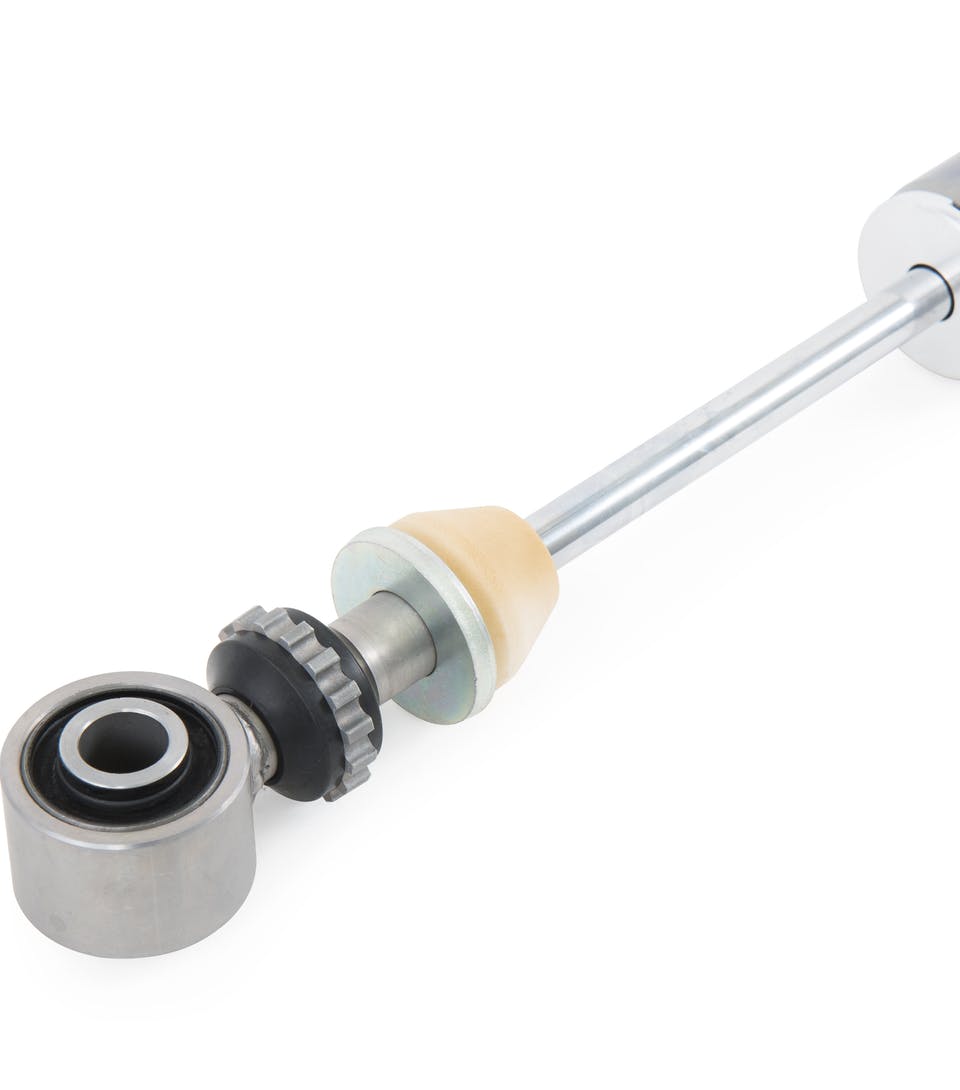

- Monotube shock absorber
- Spring preload adjustment
- Independent ride height adjustment
- Compatible with factory top mounts
Vehicle Applications
- Volkswagen Golf GTI (MK5)
- Volkswagen Golf GTI (MK6)
Technical Resources
Notes
- Suspension components are non-returnable once installed
- The Volkswagen Golf GTI (MK5) and (MK6) were not equipped with factory electronic dampers — no cancellation kit is required
