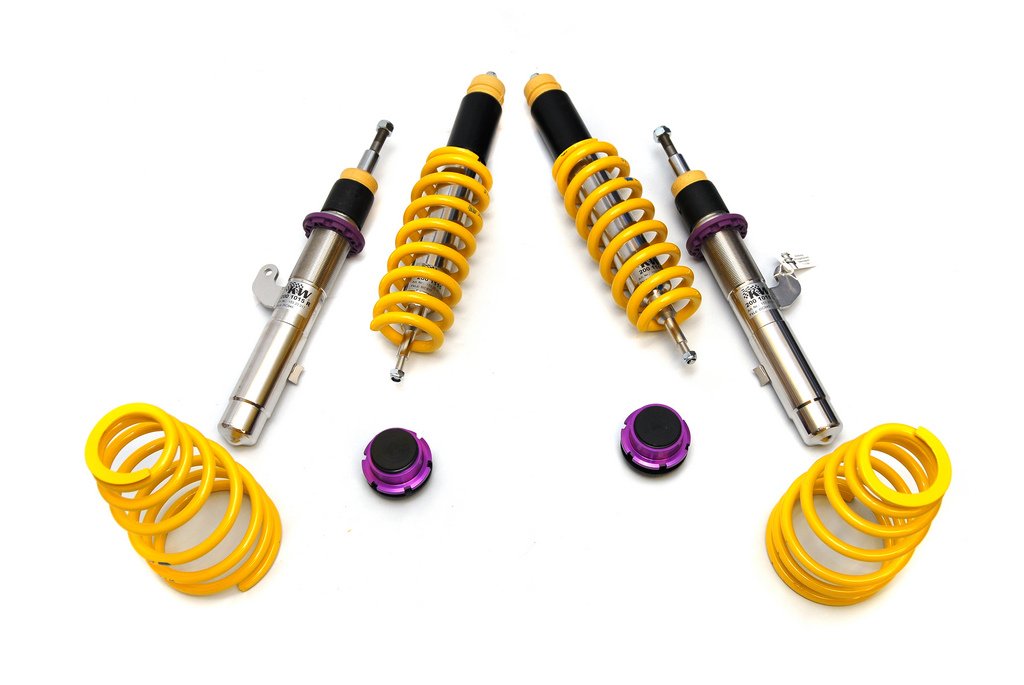

BMW E53 X5 KW V3 Coilover Kit

KW Coilover BMW X5 (E53) - Variant 3

SKU: 35220053
$3,594.00
Manufactured in Germany using advanced engineering processes.
Adjustable ride height for a personalized setup.
Adjustable compression and rebound damping settings.
Developed for precise fitment on supported vehicles.
KW limited lifetime warranty with unlimited mileage for the original purchaser. Exclusions apply.
Rebuildable and serviceable suspension damper icon
Designed to be rebuilt and serviced.

KW Variant 3: Race technology for the road, with adjustable compression and rebound dampening.
State of the art motorsport technology enables better performance on the streets. The independently adjustable compression and rebound dampening allows for custom driving setups.
The exclusive KW patented system has dual level valves that allow for adjustment of the rebound dampening for your road comfort and the compression dampening that controls the driving dynamics.

Feature

  • Rebound and compression damping adjustable damper technology
  • Stainless steel technology inox-line
  • Individual, continuous lowering
  • Tested adjustment range
  • High-quality components for a long life
  • Complete documentation for an easy handling
  • Adjustable rebound damping with 16 exact clicks
  • Adjustable compression damping with 12 exact clicks
  • Unique, independent from each other working damping force adjustment

Lowering adjustment ranges

Front from 1.4" to 2.5"

Rear from 1.4" to 2.5"

Springrates in lbs/inch

Front Progressive

Rear Progressive

Lowering Front 1.4–2.5 in. / Rear 1.4–2.5 in.
Damping 16-click rebound and 12-click compression, adjusted independently.
Stainless Stainless steel inox-line strut technology.
KW V3 coilover with independent rebound and compression damping adjustment

Dialed In, Click by Click

The KW V3 features independently adjustable rebound and low-speed compression damping, with 16 clicks of rebound adjustment to fine-tune ride comfort and handling, and 12 clicks of compression adjustment to help manage body movement. Stainless steel inox-line construction and continuously adjustable ride height allow drivers to tailor their suspension setup to their vehicle and driving preferences.

Precision Damping Control

The KW V3 inox-line coilover system features independently adjustable rebound and compression damping, allowing drivers to fine-tune ride comfort, handling, and stability. Each system is developed with vehicle-specific damping characteristics, providing a precision-engineered foundation that can be further refined to suit individual driving preferences and road conditions. Stainless steel construction, durable composite spring seats, and adjustable ride height provide lasting durability and versatility for everyday driving and more demanding performance applications.

KW coilover rebound damping adjuster

Adjustable Rebound Damping

Rebound damping controls how quickly the damper extends after it compresses. The V3 offers 16 precise clicks of low-speed rebound adjustment, letting the driver tune how the car settles after bumps and weight transfer and tailor the response to their driving style.
KW V3 coilover low-speed compression damping valve cross-section

Low-Speed Compression Damping

KW's patented compression valve uses two separate spring-preloaded valves for low and high flow. The 12-click low-speed compression adjustment refines body control and handling response independently of the rebound setting, giving the driver a second, separate dimension of tuning.
KW coilover stainless steel damper housing and valve cross-section

Stainless Steel inox-line Housing

KW builds the V3 damper body in stainless steel, which it calls inox-line. The housing encloses KW's valve technology, and stainless construction gives it strong resistance to corrosion from road salt, moisture and debris, which matters for a coilover driven on the street year-round.
KW V3 coilover composite spring seat and trapezoidal thread

Composite Spring Seat and Trapezoidal Thread

KW's precision-engineered trapezoidal thread and wear-resistant composite spring seat allow smooth, continuously variable ride height adjustment. Constructed from a friction-optimized polyamide composite with a stainless steel insert, the spring seat is designed for durability, precise adjustment, and long-term performance.
