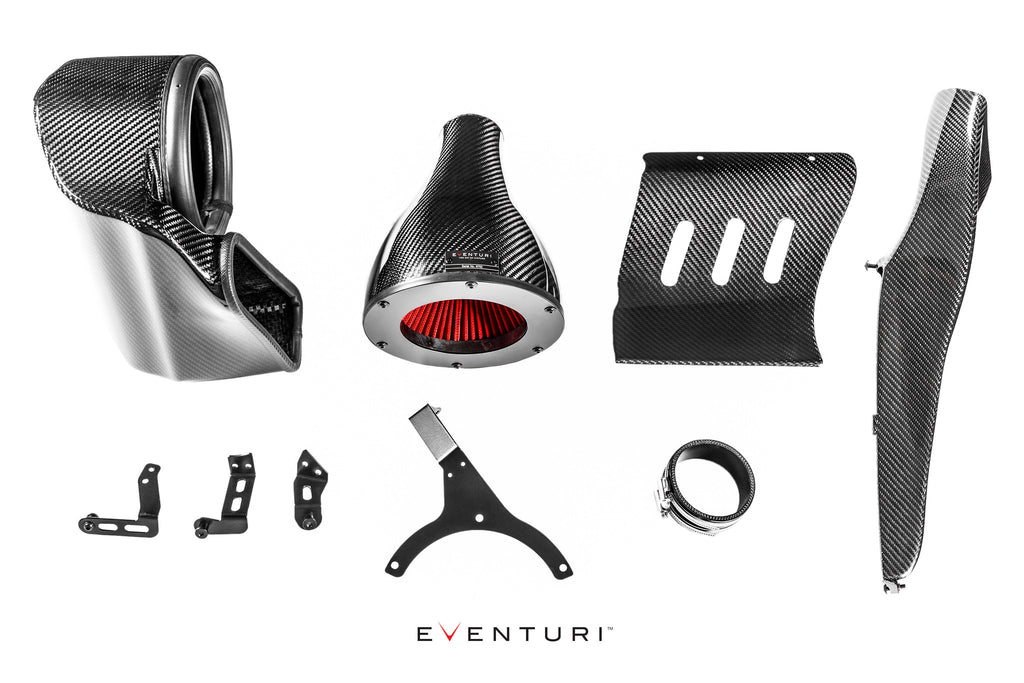

Audi B9 RS4 RS5 Eventuri Black Carbon Intake System kit components on a white background with the housing, scoops and hardware

Eventuri Audi B9 RS4 / RS5 Black Carbon Intake System

SKU: EVE-B9RS5-CF-INT
$1,750.00

5 IN STOCK

Hand assembled in the United Kingdom icon
Designed and hand-assembled in the United Kingdom.
Pre-preg carbon fiber construction.
Developed for precise fitment on supported vehicles.
Independently dyno tested performance icon
Performance verified through independent dyno testing.
Venturi effect intake airflow design icon
Funnel-shaped carbon housing acts as a large velocity stack to accelerate and smooth intake airflow.
Bespoke intake filter design icon
Filter developed specifically for the housing to maximize available filter area and optimize airflow.

The Eventuri Audi B9 RS4 / RS5 Black Carbon Intake System is engineered to reduce intake restriction while maintaining a controlled supply of ambient air to the 2.9-liter twin-turbocharged V6. Replacing the factory airbox and convoluted inlet connection, the system incorporates a pre-preg carbon fiber Venturi filter housing with an integrated intake tube, a sealed carbon air duct, and dedicated front and secondary carbon ducts. Eventuri reports independently measured gains of 11–16 wheel horsepower and 12–17 lb-ft of torque at the wheels on an otherwise stock Audi B9 RS5.

The factory RS4 and RS5 intake arrangement incorporates a flexible, convoluted inlet section between the airbox and turbocharger intake tube. Eventuri replaces this transition with a rigid carbon fiber housing and integrated tube that extends directly to the factory turbo inlet connection. The internal geometry gradually reduces the cross-sectional area from the reverse-mounted Generation 2 filter toward the outlet, providing a continuous airflow transition without the abrupt changes in section associated with the original ducting.

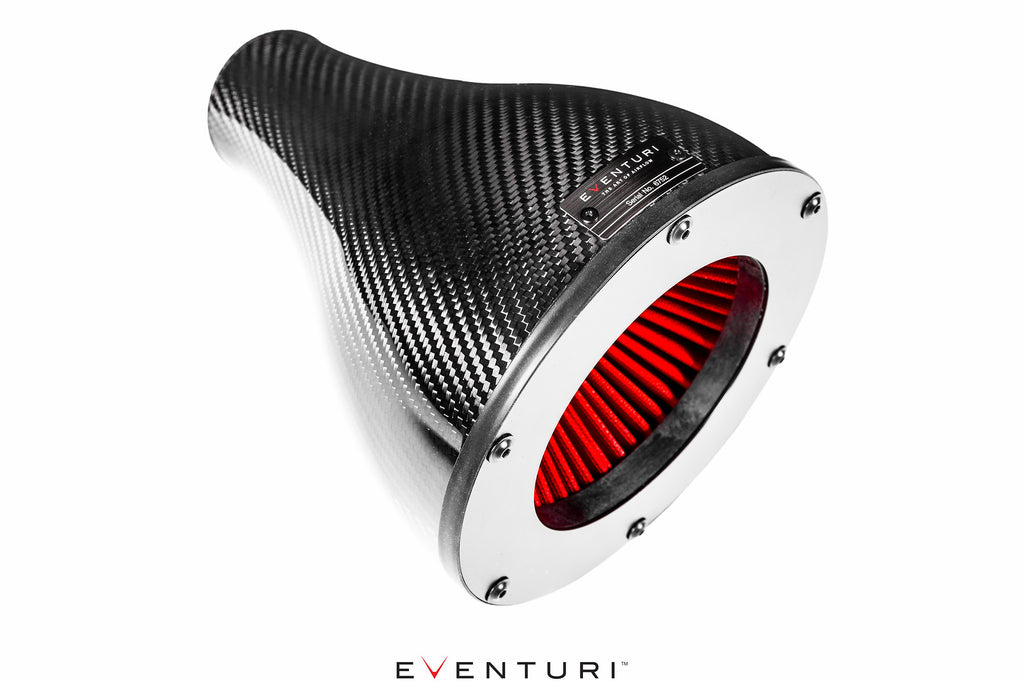

At the center of the system is Eventuri's Venturi filter housing, which surrounds a bespoke reverse-mounted dry air filter. The housing profile is designed to distribute incoming air around the filter and guide it through a progressively narrowing passage toward the turbocharger inlet. This geometry is intended to reduce flow separation and turbulence while providing a consistent airflow path through the intake assembly.

Managing intake air temperature is particularly important in the B9 RS4 and RS5 engine compartment, where the turbochargers and associated exhaust components generate substantial heat. Eventuri addresses this with a sealed carbon fiber intake duct that receives ambient air from the front grille region. Flexible rubber sealing edges interface with the filter housing and factory air entry location, helping separate the incoming air supply from the surrounding engine compartment.

The carbon intake duct also incorporates a secondary opening positioned toward a cooler region of the engine compartment. This additional entry provides another source of incoming air while the primary front scoop directs airflow from the grille toward the main duct. The front scoop features a continuous bend radius designed to guide incoming air into the duct opening with minimal abrupt directional changes.

The Venturi housing and integrated inlet tube are mounted to the engine, allowing the assembly to move with the powertrain under acceleration. A flexible sealing interface between the housing and stationary carbon duct accommodates this movement while maintaining the intended separation between the cold-air supply and engine compartment.

All primary intake housings and ducts are manufactured from pre-preg carbon fiber with a high-gloss black finish. Application-specific laser-cut stainless steel brackets and CNC-machined mounting stubs interface with the factory rubber airbox mounts, while silicone couplers and OEM-specification hose clamps complete the intake connections.

Independent back-to-back dynamometer testing on an otherwise stock Audi B9 RS5 recorded gains of 11–16 horsepower and 12–17 lb-ft of torque at the wheels. Testing was performed on the same day with the hood closed and intake temperatures monitored to maintain consistent conditions. Eventuri attributes these improvements to the combined effects of the revised airflow geometry, reduced intake restriction, and controlled cold-air supply.

Product Details

  • Designed for Audi B9 RS4 Avant, RS5 Coupe, and RS5 Sportback applications
  • Pre-preg black carbon fiber construction with high-gloss finish
  • Eventuri Venturi filter housing with integrated rigid intake tube
  • Reverse-mounted high-flow Generation 2 dry air filter
  • Gradually reducing internal housing geometry designed to minimize airflow restriction
  • Eliminates the convoluted factory inlet connection between the airbox and turbocharger intake tube
  • Sealed carbon fiber primary intake duct with flexible rubber sealing interfaces
  • Carbon fiber front air scoop with continuous-radius airflow transition
  • Carbon fiber secondary duct connecting the primary duct to the factory front air entry region
  • Additional air entry opening positioned toward a cooler region of the engine compartment
  • Engine-mounted filter housing designed to accommodate powertrain movement
  • Laser-cut stainless steel mounting brackets
  • CNC-machined mounting stubs utilizing factory rubber airbox mounts
  • High-quality silicone couplers and OEM-specification hose clamps
  • Independent dyno results: 11–16 wheel horsepower and 12–17 lb-ft of torque at the wheels
  • Replacement filter: Eventuri Type B Generation 2, EVE-661-G2-FTR
  • Manufacturer part number: EVE-B9RS5-CF-INT
Independent Dyno Performance Back-to-back testing on an otherwise stock Audi B9 RS5 recorded gains of 11–16 wheel horsepower and 12–17 lb-ft of torque at the wheels, with the hood closed and intake temperatures monitored.
Venturi Housing & Filtration Prepreg carbon fiber Venturi housing with integrated rigid intake tube and reverse-mounted Generation 2 dry filter, engineered to provide a gradual airflow transition toward the factory turbo inlet tube.
Sealed Cold-Air Architecture Carbon fiber primary intake duct, front air scoop, and secondary duct with flexible sealing interfaces and an additional air entry opening to help maintain a controlled ambient-air supply.
Audi B9 RS4 RS5 Eventuri 2.9 TFSI Black Carbon Intake System installed in the engine bay

Housing and Tube in One Piece

The factory arrangement uses a flexible, convoluted section between the airbox and the turbo inlet tube. Eventuri replaces it with a rigid carbon housing and an integrated tube running directly to the factory connection.

No Rubber Hose in the Path

The B9 RS system removes the convoluted rubber hose between airbox and engine. Its filter housing carries an integrated carbon tube right through to the factory turbo inlet and bolts to the engine, so the two move together, while an expanding seal on the duct face keeps the joint ahead of it closed. A carbon secondary duct and front scoop complete the feed.

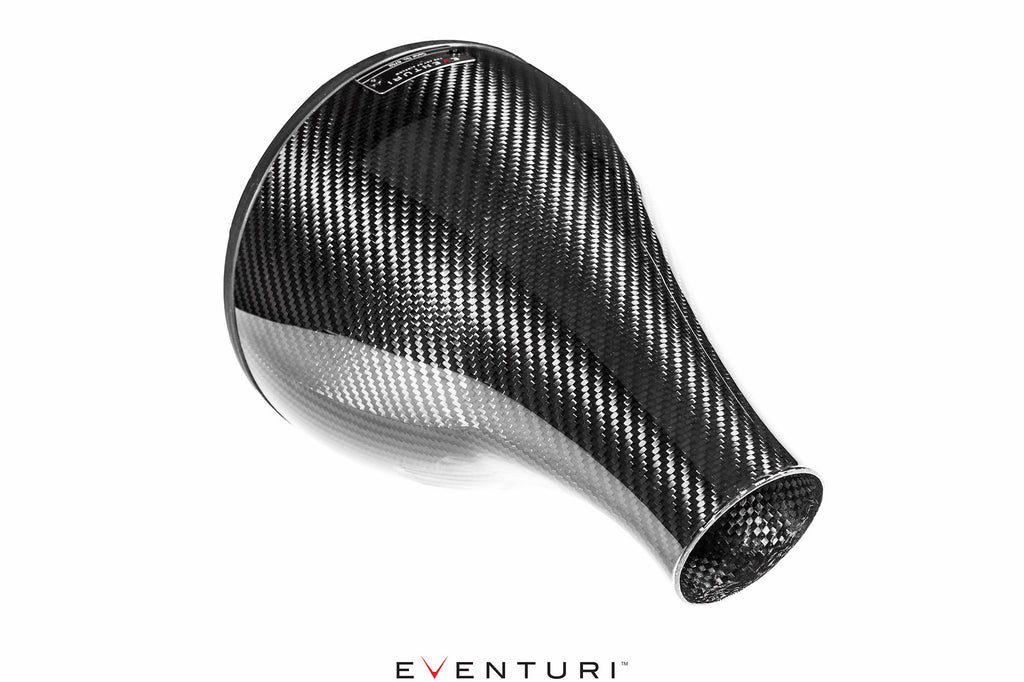

Audi B9 RS4 RS5 Eventuri carbon intake housing with integrated tube

Where the Hose Used to Be

The pod encloses a reverse-mounted Generation 2 filter and draws in until it matches the diameter of the turbo tube it meets. Because the carbon tube is formed as part of the housing, there is no flexible section in between: the join Eventuri removed is the one that used to sit right here.

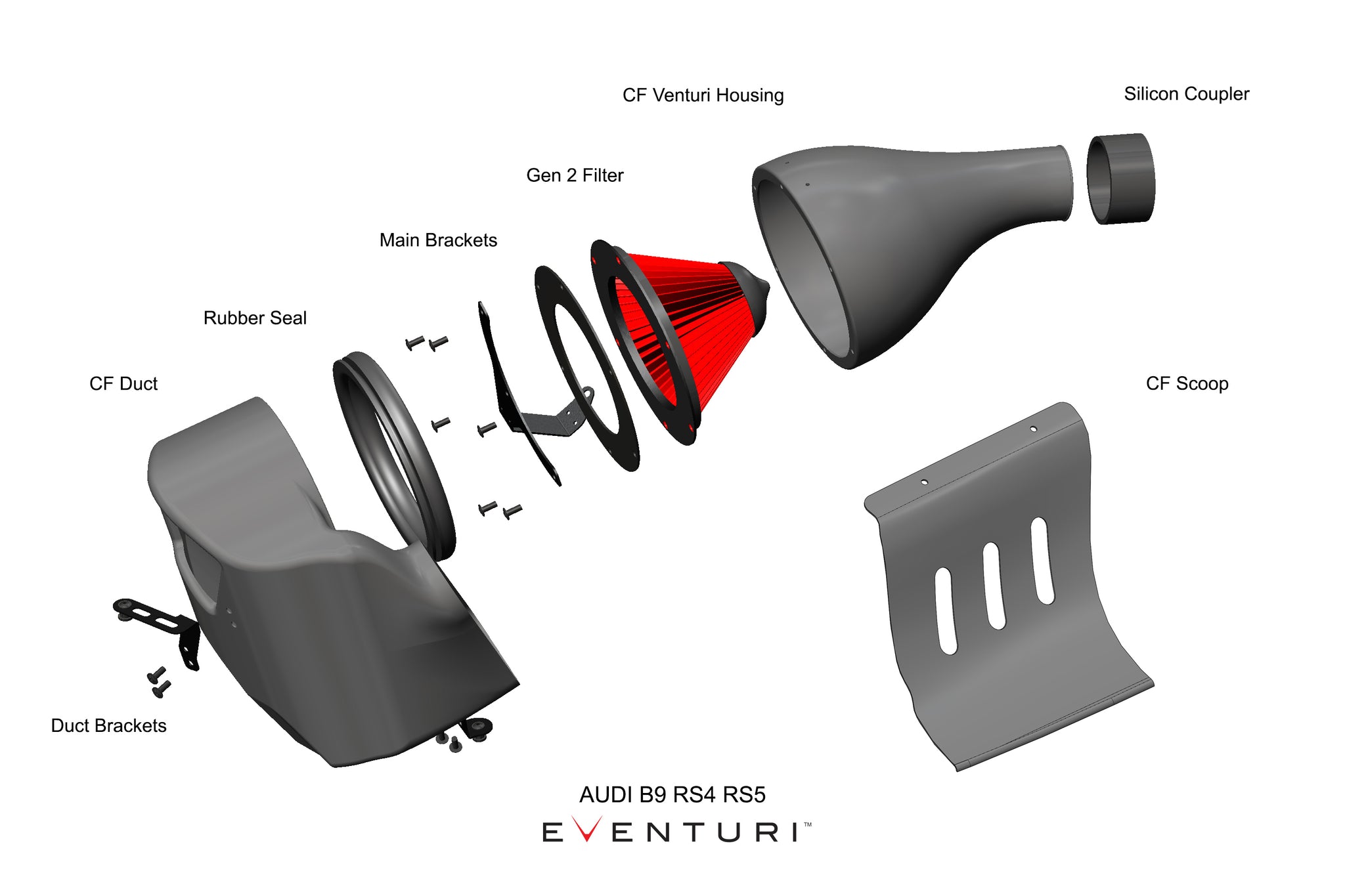

Audi B9 RS4 RS5 Eventuri carbon intake system exploded assembly view

The Complete RS Assembly

The exploded view takes the system apart: the carbon housing with its integrated tube and Generation 2 filter, the intake duct, the carbon secondary duct and front scoop, silicone couplers with OEM-specification clamps, and laser-cut stainless brackets carrying CNC-machined mounting stubs.
Audi B9 RS4 RS5 Eventuri carbon fiber secondary duct

Carbon in Place of the Factory Part

The secondary duct links the main carbon duct to the air entry at the slam panel. On the RS system Eventuri makes it in carbon rather than leaving the factory plastic section in place, closing off the openings that part carries and matching the finish of everything around it.
Audi B9 RS4 RS5 Eventuri installed intake component diagram

How It Sits in the Bay

The labeled path runs duct, expanding seal, filter housing, integrated tube, turbo inlet tube. The seal is the piece that makes a solid carbon connection workable: it takes up the movement between a housing fixed to the engine and a duct fixed to the car, without a flexible hose in the airflow.
