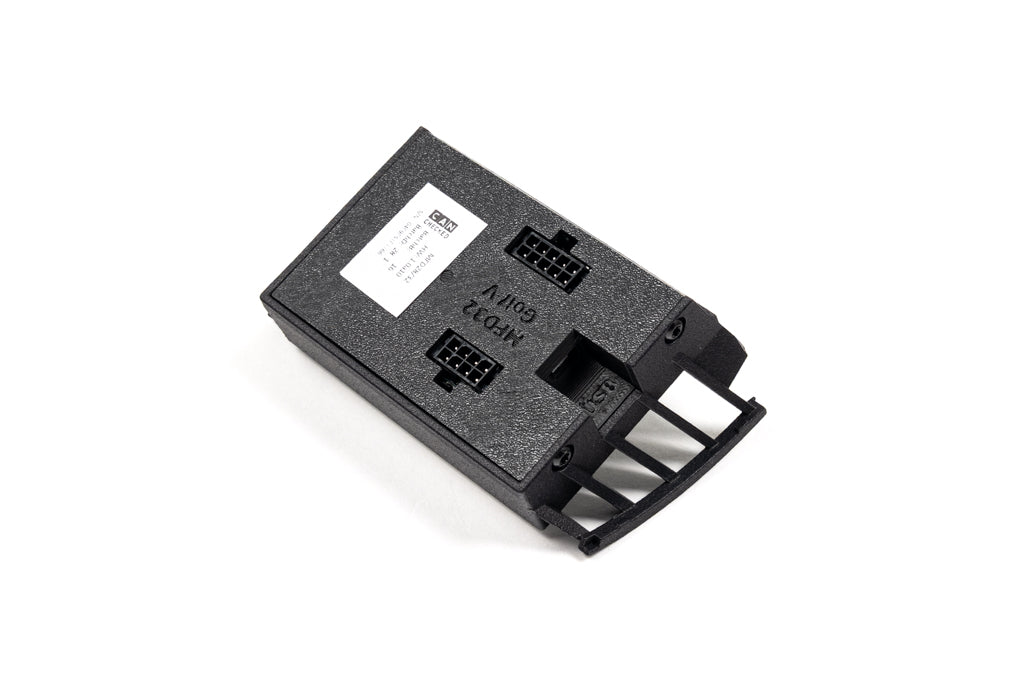

  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.

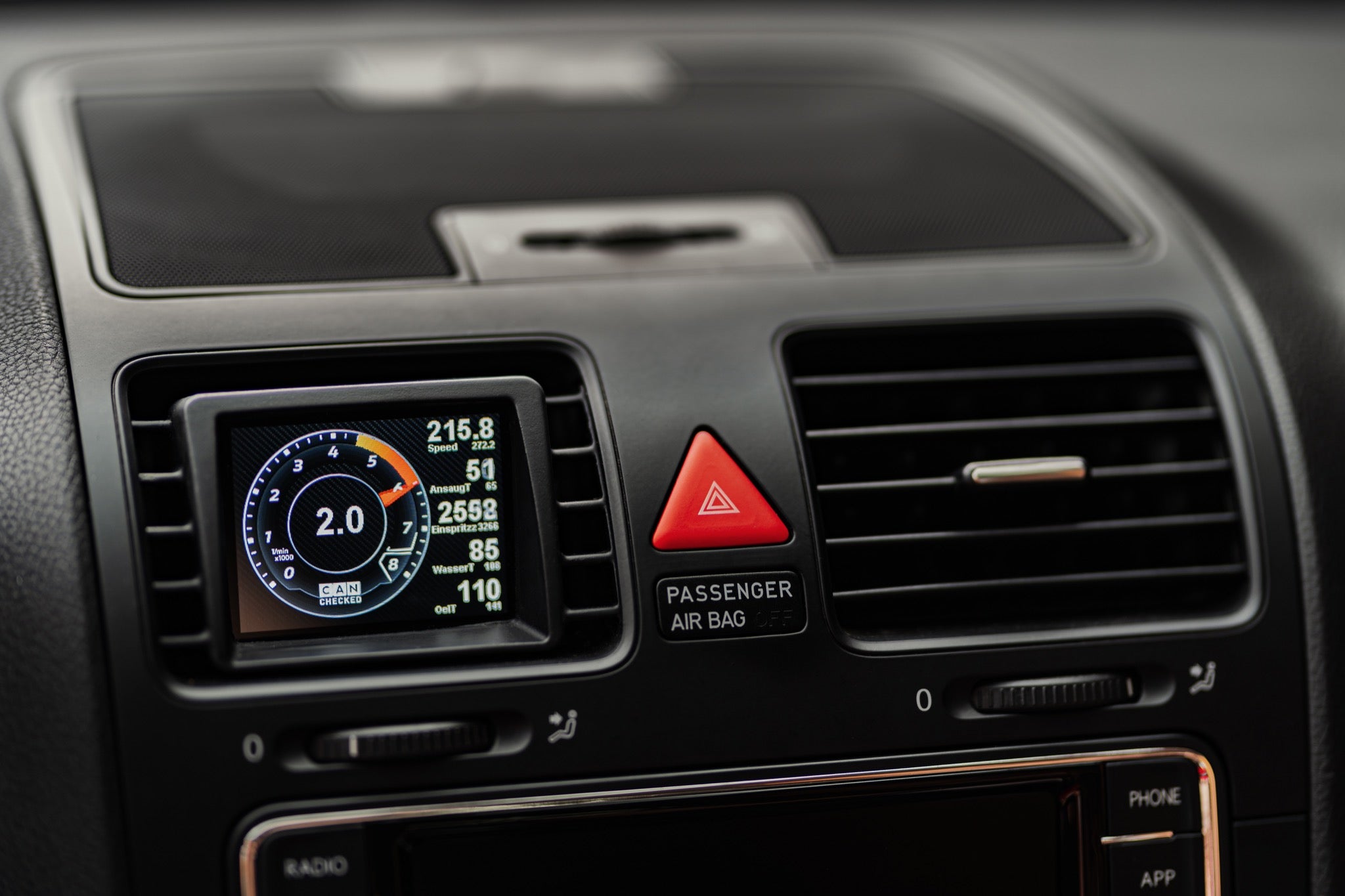

  • CANchecked MFD32 Gen2 3.2-inch multi-function display installed in the factory air vent of a Volkswagen MK5 Golf, providing touchscreen control, vehicle diagnostics, performance monitoring, and real-time CAN bus data through an OEM-style integration.

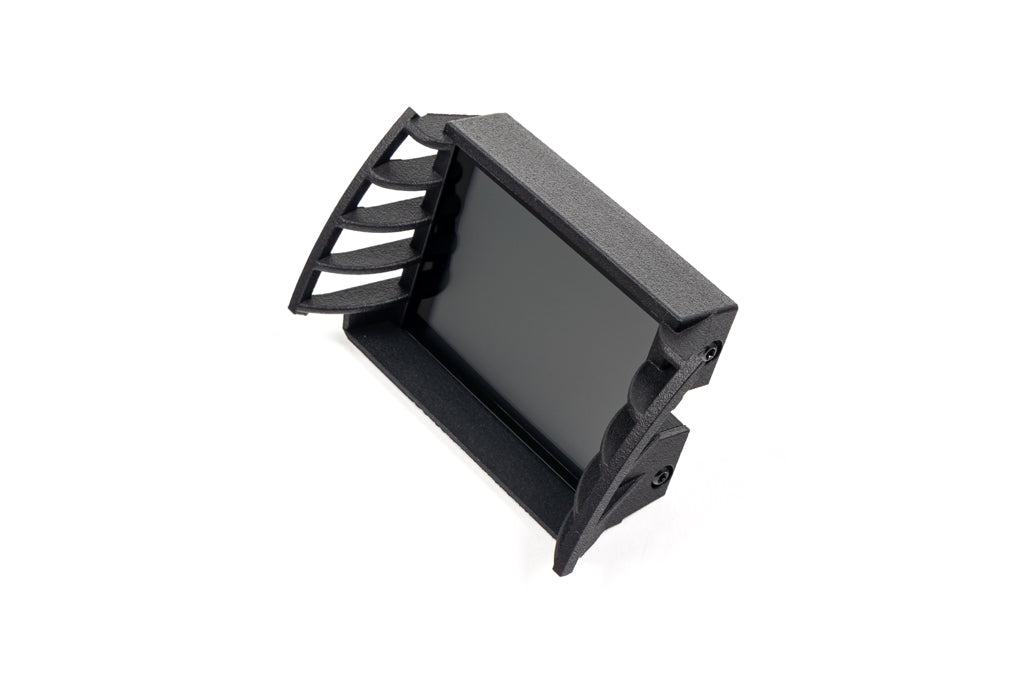

  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.

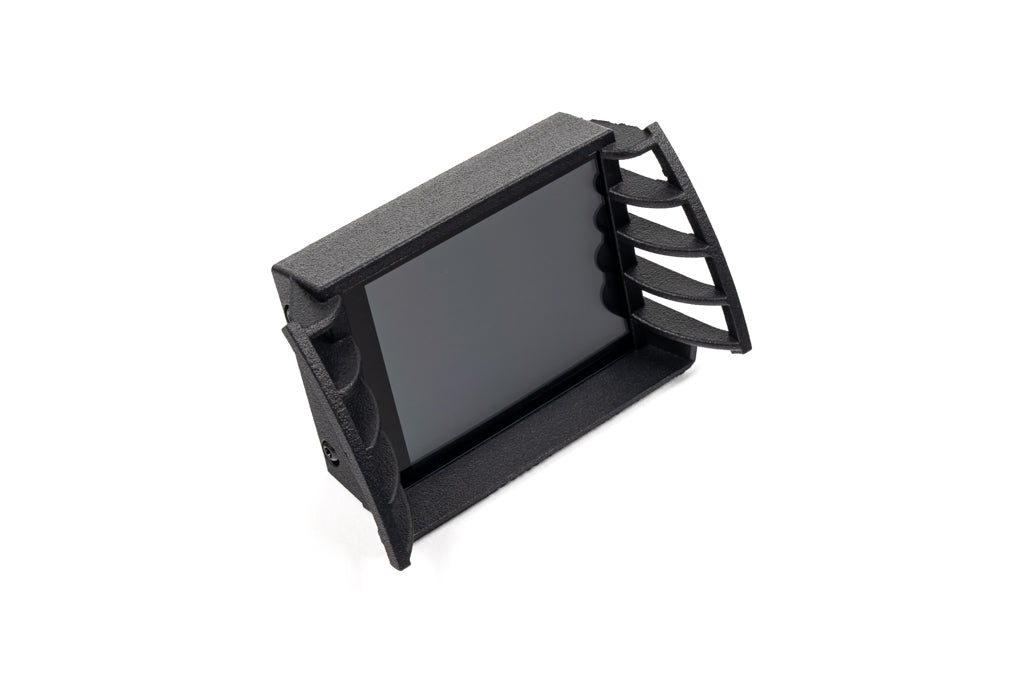

  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.
  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.
  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.

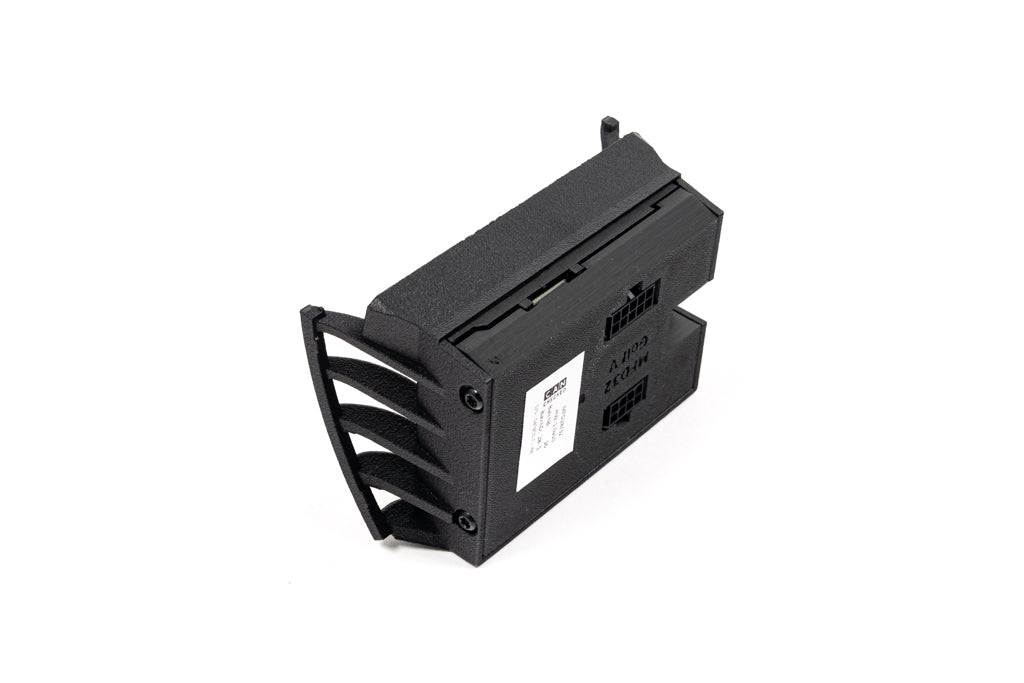

  • CANchecked MFD32 Gen2 3.2-inch multi-function display for Volkswagen MK5 Golf shown on a white background, featuring a vehicle-specific air vent integration, touchscreen interface, and real-time vehicle data monitoring.
CANchecked VW MK5 Golf MFD32 Multi Function Display | 3.2" Gen2 (LHD)

CANchecked VW MK5 Golf MFD32 Multi Function Display | 3.2" Gen2 (LHD)

SKU: CC32042
$564.99

1 IN STOCK

Manufactured in Germany using advanced engineering processes.
CAN bus integration icon representing real-time ECU communication and digital vehicle data monitoring.
Direct ECU communication with real-time vehicle data monitoring and configurable CAN bus support.
Touchscreen display icon representing the CANchecked digital interface with customizable vehicle data controls.
Capacitive touchscreen with intuitive controls.
CANchecked Custom Display Layouts feature icon showcasing personalized pages with configurable widgets, colors, graphics, and performance data displays on a white background.
Create personalized pages with configurable widgets, colors, graphics, and performance data displays.
CANchecked Fault Code Reader feature icon displaying diagnostic trouble code reading and clearing functionality for quick vehicle troubleshooting and maintenance on a white background.
Read and clear diagnostic trouble codes directly from the display for quick troubleshooting and maintenance.
CANchecked Performance Tracking feature icon showing acceleration timing and vehicle performance measurement tools for benchmarking and performance analysis on a white background.
Measure acceleration times and benchmark vehicle performance with built-in timing tools and performance metrics.

The CANchecked MFD32 Gen2 Multi Function Display for the Volkswagen MK5 Golf transforms a factory air vent into a fully integrated digital monitoring and diagnostics center. Designed specifically for the MK5 chassis, the MFD32 Gen2 delivers OEM-like fitment while providing access to extensive vehicle data, performance metrics, and advanced customization features directly within the driver's field of view.

Unlike conventional gauge solutions, the MFD32 Gen2 utilizes a high-resolution touchscreen interface that allows users to navigate through multiple pages using intuitive swipe gestures. The vehicle-specific vent assembly maintains usable airflow while seamlessly integrating the display into the interior. Through CAN bus communication and manufacturer-specific protocols, the MFD32 Gen2 can access a wide range of vehicle parameters, providing diagnostic-level data directly from the vehicle's control modules.

Built for enthusiasts who demand more than basic monitoring, the MFD32 Gen2 supports custom page creation, data logging, analog sensor integration, ethanol content monitoring, performance timing functions, and CAN bus switching capabilities. Whether used on a daily driver, track car, or heavily modified build, the display can be configured to present the exact information most relevant to your application.

Product Details

  • Vehicle-specific display system for Volkswagen MK5 Golf models
  • Integrated air vent design maintains functional airflow
  • High-resolution touchscreen display with swipe navigation
  • Direct CAN bus communication and advanced vehicle data monitoring
  • Supports manufacturer-specific diagnostic protocols
  • Customizable display layouts and user-created pages
  • Up to 10 configurable display pages
  • Supports up to 64 widgets per page
  • Integrated performance meter for acceleration testing
  • Internal SD card data logging functionality
  • Read and clear diagnostic trouble codes on supported protocols
  • Automatic display dimming with vehicle illumination on supported applications
  • Supports direct ethanol content and temperature monitoring
  • Supports external shift light modules
  • Four analog sensor inputs for expanded monitoring capability
  • CAN switching and custom CAN message functionality

Monitored Parameters

  • Oil temperature
  • Coolant temperature
  • Exhaust gas temperature
  • Intake air temperature
  • DSG transmission temperature
  • Boost pressure
  • Fuel pressure
  • Rail pressure actual and target
  • Lambda values and fuel trims
  • Engine RPM
  • Vehicle speed
  • Throttle position
  • Ignition timing and cylinder correction values
  • Torque output
  • Gear position
  • Battery voltage

Customization Features

  • Create custom display pages
  • Drag-and-drop widget placement
  • Adjustable widget sizing and positioning
  • Fully customizable colors
  • Upload custom graphics and startup animations
  • Integrated DSS software support
  • Built-in CAN logger and data viewer
  • User-configurable alarms and warning notifications
  • Math channels and advanced sensor calculations
  • 2D and 3D user mapping functions

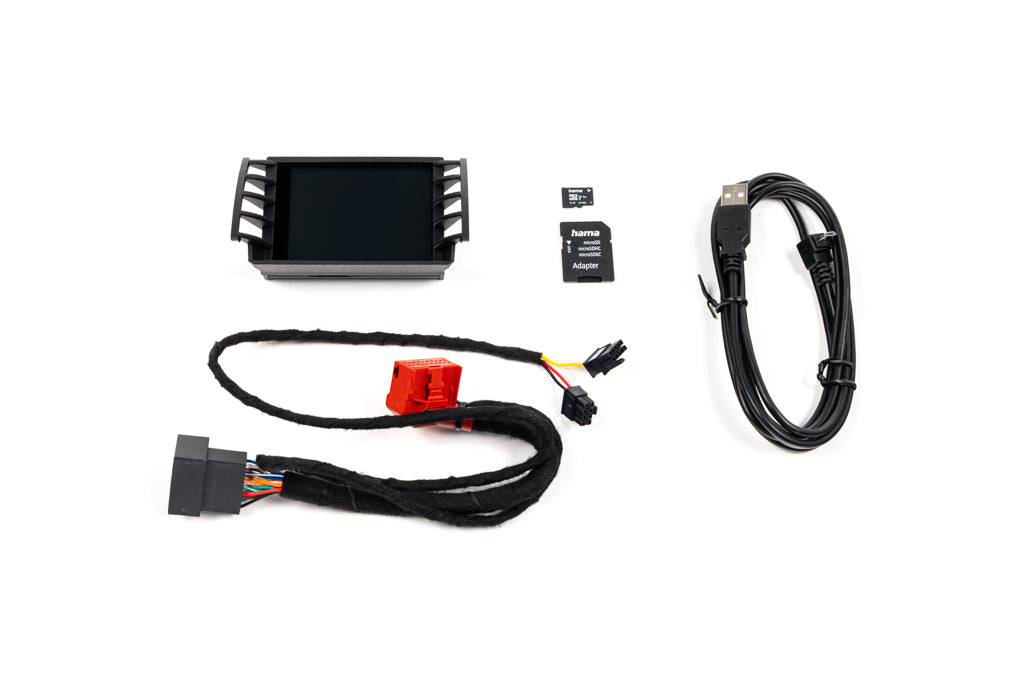

What's Included

  • CANchecked MFD32 Gen2 Display Integrated into Vehicle-Specific Vent Assembly

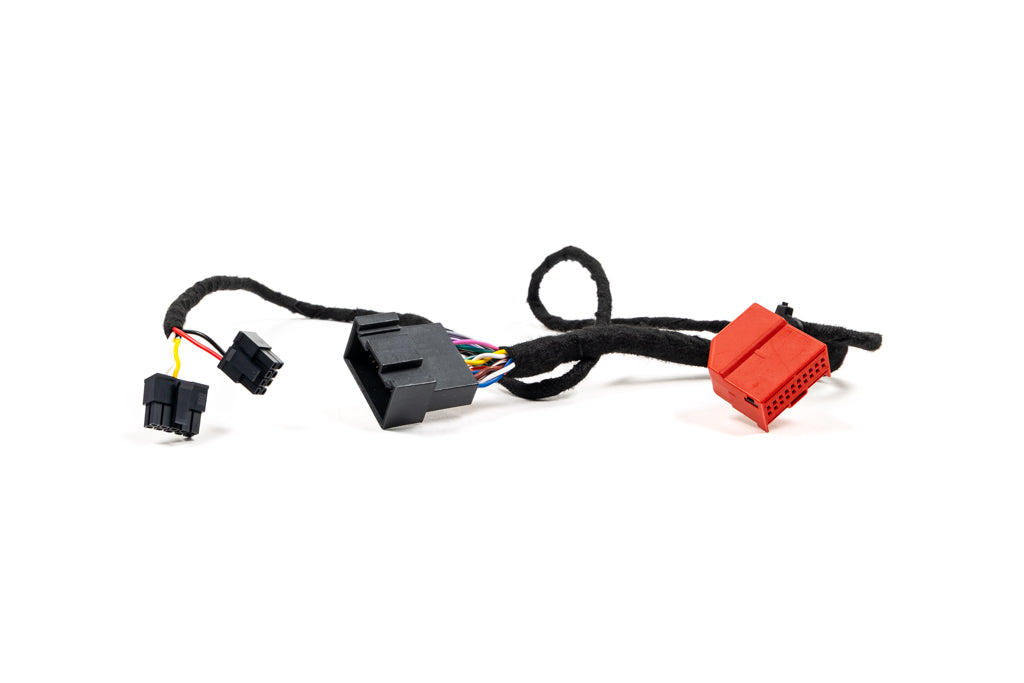

  • Vehicle-Specific Connection Harness
  • Quick Start Guide
  • USB Data Cable
  • Pre-Installed SD Card
  • SD Card Adapter
  • Anti-Reflection Display Film

Compatible CANchecked Accessories

  • SLM08 External Shift Light Module
  • ANC04 Analog Input Harness
  • CBD08 CAN Distribution Hub
  • NTC01 Temperature Sensor
  • TCC01 Type-K Temperature Converter
  • FLP01 Pressure Sensor
  • BST10 Boost Pressure Sensor
Technology 3.2-inch Touchscreen Display
Origin Designed and manufactured in Germany
Interface Seamless CAN bus integration

Precision Data. 3.2" Touchscreen Display

The compact CANchecked Gen2 Multi Function Display integrates cleanly into the cockpit while delivering real-time vehicle data in layouts designed for both street and track use.

CANchecked MFD32 Multi Function Universal Display Gen2 installed inside BMW G87 M2 Racing showing integrated 3.2-inch motorsport data display mounted within the factory interior cockpit.

Precision Data. 3.2" Touchscreen Display

Monitor key vehicle parameters including boost, oil temperature, coolant temperature, ethanol content, exhaust gas temperatures, and more through a fully customizable motorsport-inspired interface.

Engineered for Seamless Installation

The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.

German Manufacturing

OEM quality display bezels designed, manufactured, and assembled in Germany.

CANchecked Engineering

Software and hardware developed entirely by CANchecked for seamless system integration.

Complete Installation Kit

Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).

Display Setup Software

Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
