SKU: CC03303

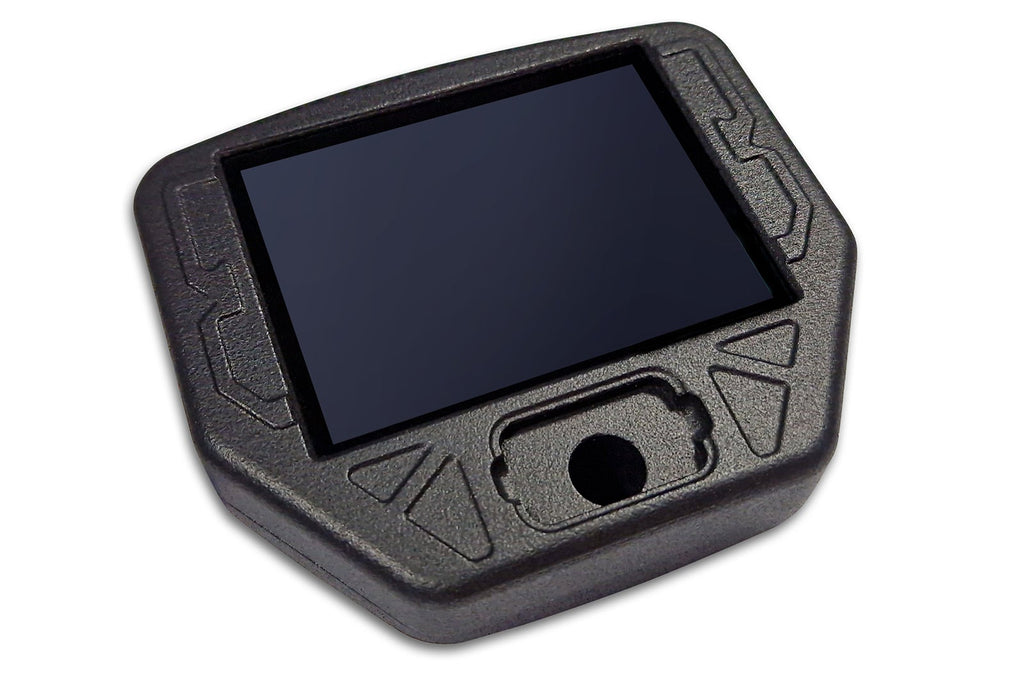

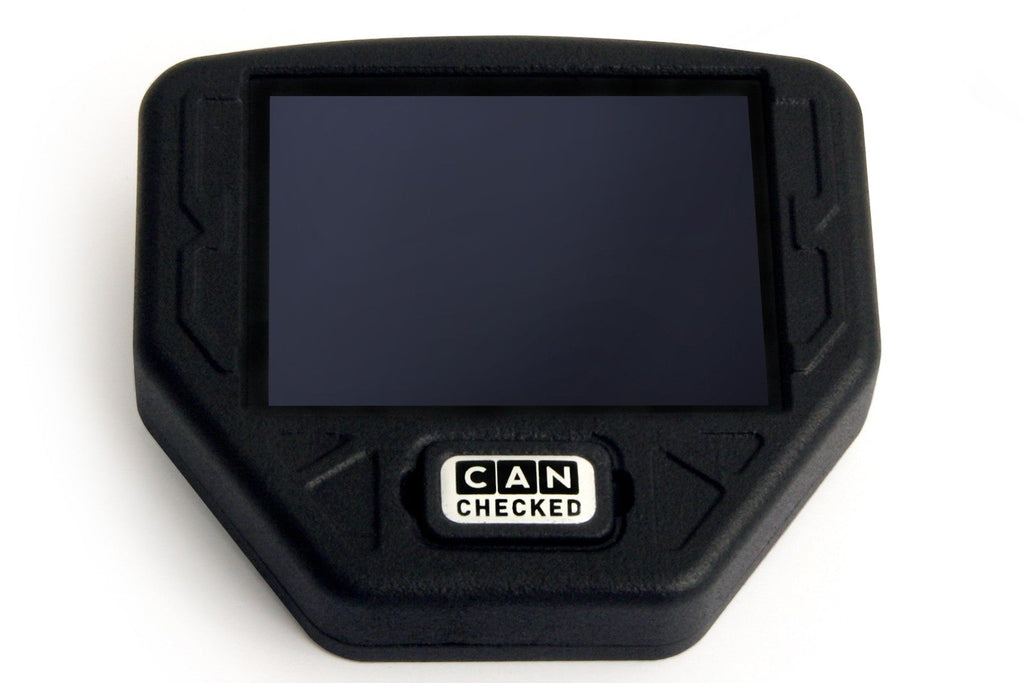

CANchecked SWD32 Multi Function Display | 3.2" Gen2 - For Dished Steering Wheels
$534.99
AVAILABLE TO ORDER
The CANchecked SWD32 display for dished racing steering wheels is a high-performance motorsport solution for displaying real-time vehicle data directly in the driver's field of vision. Based on the proven CANchecked platform, the SWD32 combines state-of-the-art CAN integration, extensive customization options, and professional data analysis in a compact system.
Based on the proven MFD32 display, it is mounted directly to dished steering wheels and offers maximum control over all relevant engine data – ideal for motorsport and performance applications. The MFD32 supports communication through CAN bus protocols including ISO 11898-2 and SAE J2284, allowing users to retrieve extensive ECU data depending on manufacturer support and CAN documentation availability. CANchecked’s system supports up to 128 sensors across CAN bus and internal inputs, while offering configurable pages and widget layouts through the integrated touchscreen interface or CANchecked’s Display Setup Software (DSS).

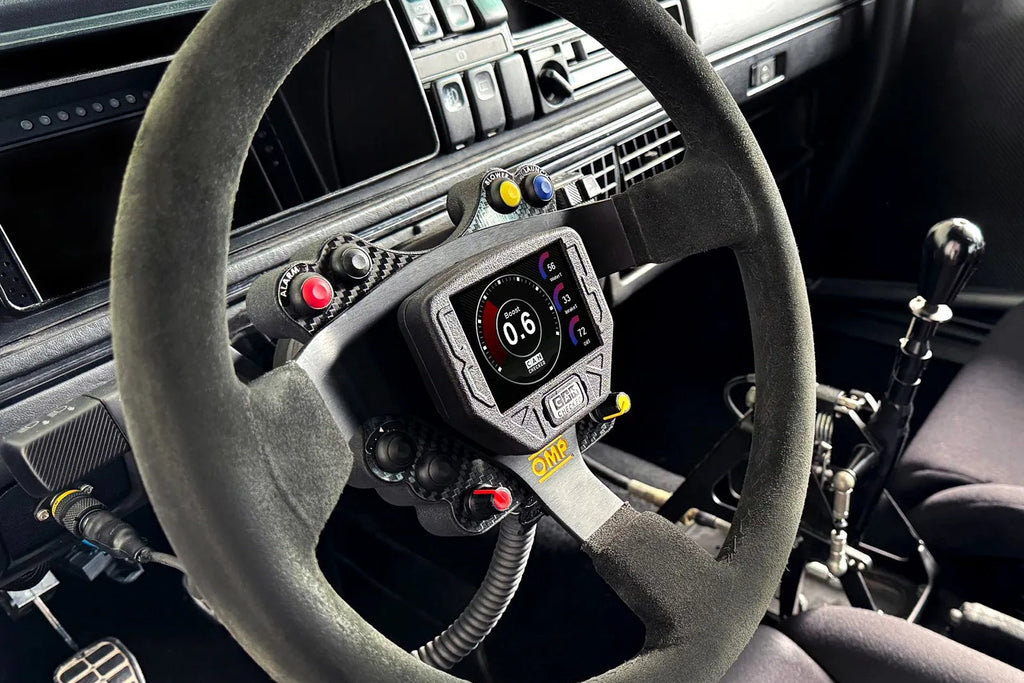

The SWD32 transforms your steering wheel into an intelligent cockpit. Thanks to its direct integration into the steering wheel, you have all important vehicle data in view at all times – without taking your eyes off the road. Use the analog inputs from the display as trim pots or the digital inputs to switch between pages via external buttons.
Key Features
- Steering wheel display for real-time display of vehicle data
- Mounts directly to the sports steering wheel (6x70 bolt circle)
- Variants for flat and dished steering wheels
- 3.2" touchscreen with intuitive operation
- Up to 10 layout pages with customizable widgets
- Up to 64 widgets per page
- Automatic display dimming
- Compatible with CAN bus systems and many control units
- Includes MicroSD and MicroUSB support
- 4x analog inputs
- Integrated speed input support
- Optional external shift light support
- CAN bus switching functionality supported
- Supports OBD2 CAN communication (11-bit and 29-bit)
- Supports TP2.0 and UDS communication protocols
- High quality 3D-printed display surround manufactured in-house by CANchecked

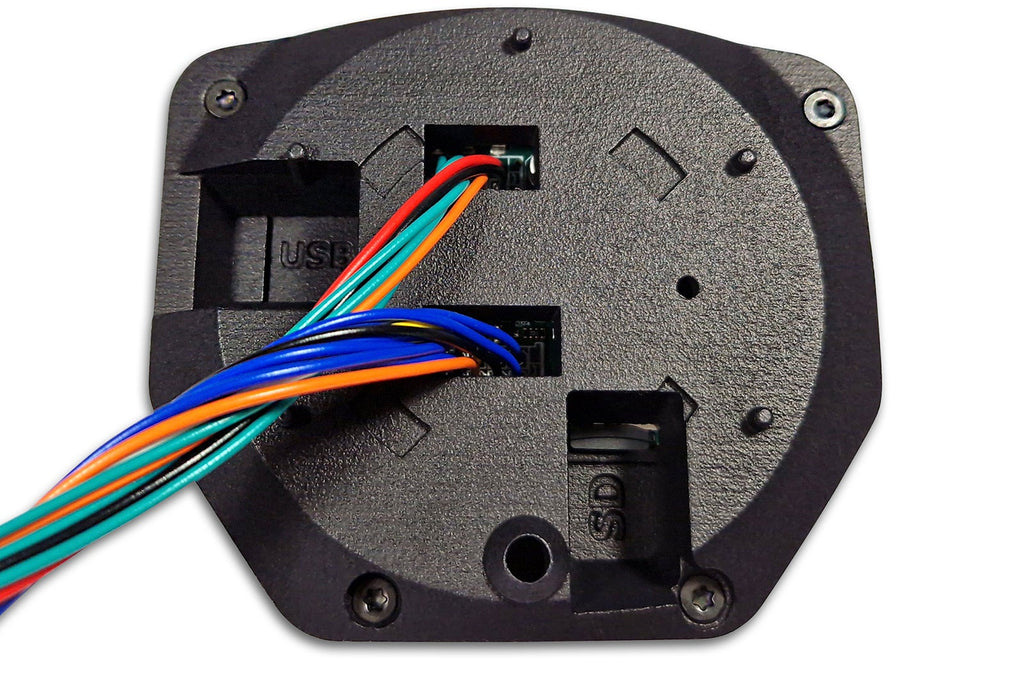

- Includes wiring, connectors, and wire harness for display installation
Technology
3.2-inch Touchscreen Display
Origin
Designed and manufactured in Germany
Interface
Seamless CAN bus integration
Vehicle Applications
- Universal application
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.
Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
Product Support Documents
Notes
- Supported values vary depending on vehicle platform and manufacturer ECU compatibility/CAN bus data output.
- If specific values are missing, additional sensors or data channels may be added later depending on the setup.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
Technical Resources
- MFD28 and MFD32 Gen2 Downloads and Documentation
- DSS Display Software Downloads and Connection Guide
- Add-Ons Components - Guides and Technical Information
- Manufacturer Product Page
- CANchecked Support Portal
SKU
- SKU: CC03303
Engineered for Seamless Installation
The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.
German Manufacturing
OEM quality display bezels designed, manufactured, and assembled in Germany.
CANchecked Engineering
Software and hardware developed entirely by CANchecked for seamless system integration.
Complete Installation Kit
Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).
Display Setup Software
Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
