SKU: CC59050
CANchecked Nissan 200SX S13 MFA2.0 Multi Function Display | 1.5" Gen2 Cluster Install (LHD/RHD)
$414.99
AVAILABLE TO ORDER
The CANchecked Nissan 200SX S13 MFA2.0 Multi Function Display - 1.5" Gen2 (LHD) is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.
It is well suited for projects that require CAN Bus integration, OBD-based data access, wireless configuration, and expandable sensor inputs. The MFA2.0 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight.
This kit is supplied with a vehicle-specific dash insert and a connection kit.
Product Details
- Perfect integration: The MFA2.0 Gen2 integrates OEM like to your dash
- Faceplate-mounted LED: The LED on the front of the display can be used as a shift light and/or as a warning LED
- Can Bus: Support of Can Bus ECUs, own Can streams and from 2008 on OBD2 and deep values
- WiFi: connect to your smartphone or PC and configure it using our Web App
- Additional inputs: connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display
- Preset Alarms: predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees.
- Customization: Use your own startup logo and color scheme to make it your MFD15 Gen2
- Online logging*: Log your data with your smartphone or PC and save the log to your device for later analysis
- Flex Fuel*: View ethanol content and temperature on your display
- Can Switching*: Switch can switches using the buttons on your display and forward the readings from your analog inputs to the can bus
What’s Included

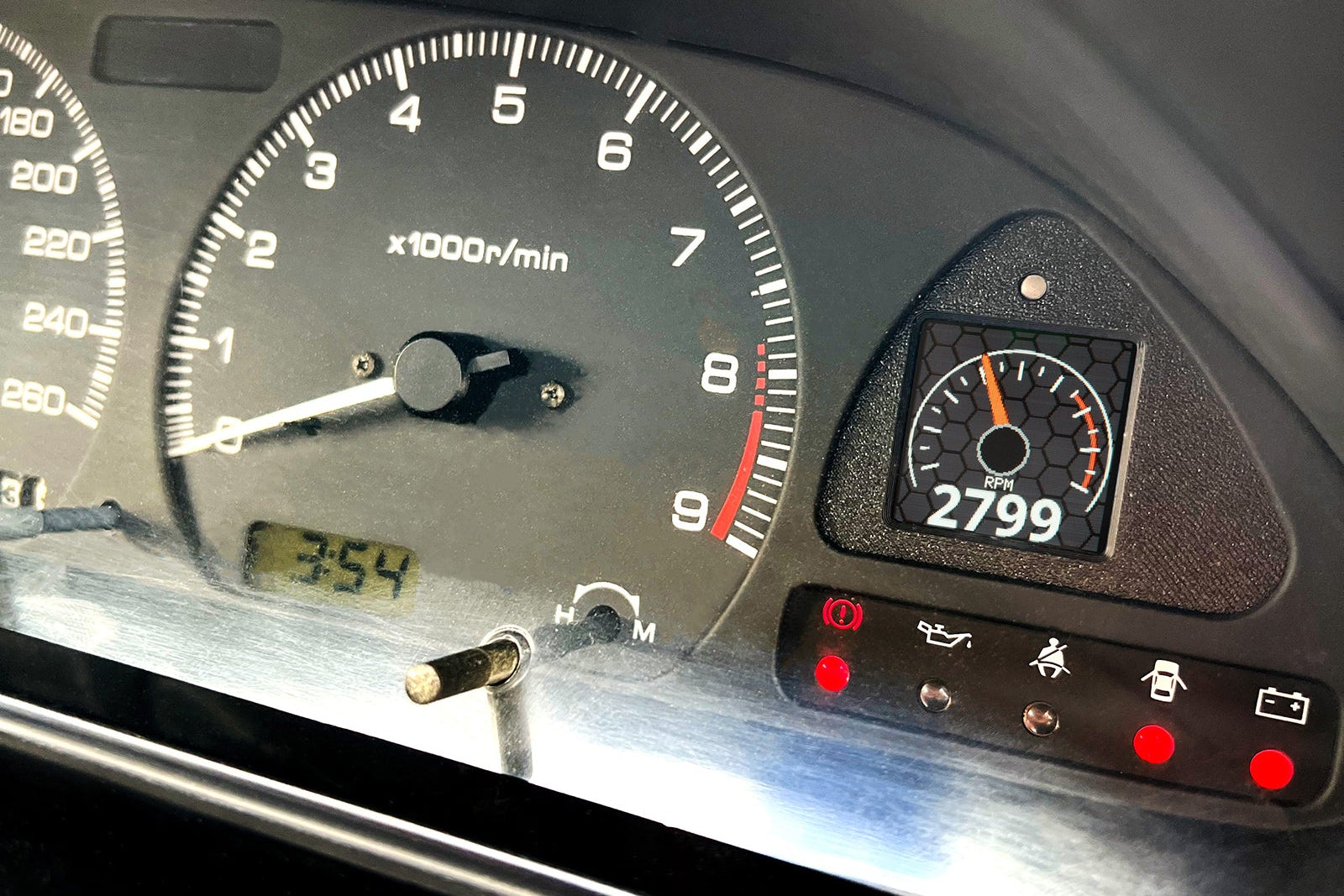

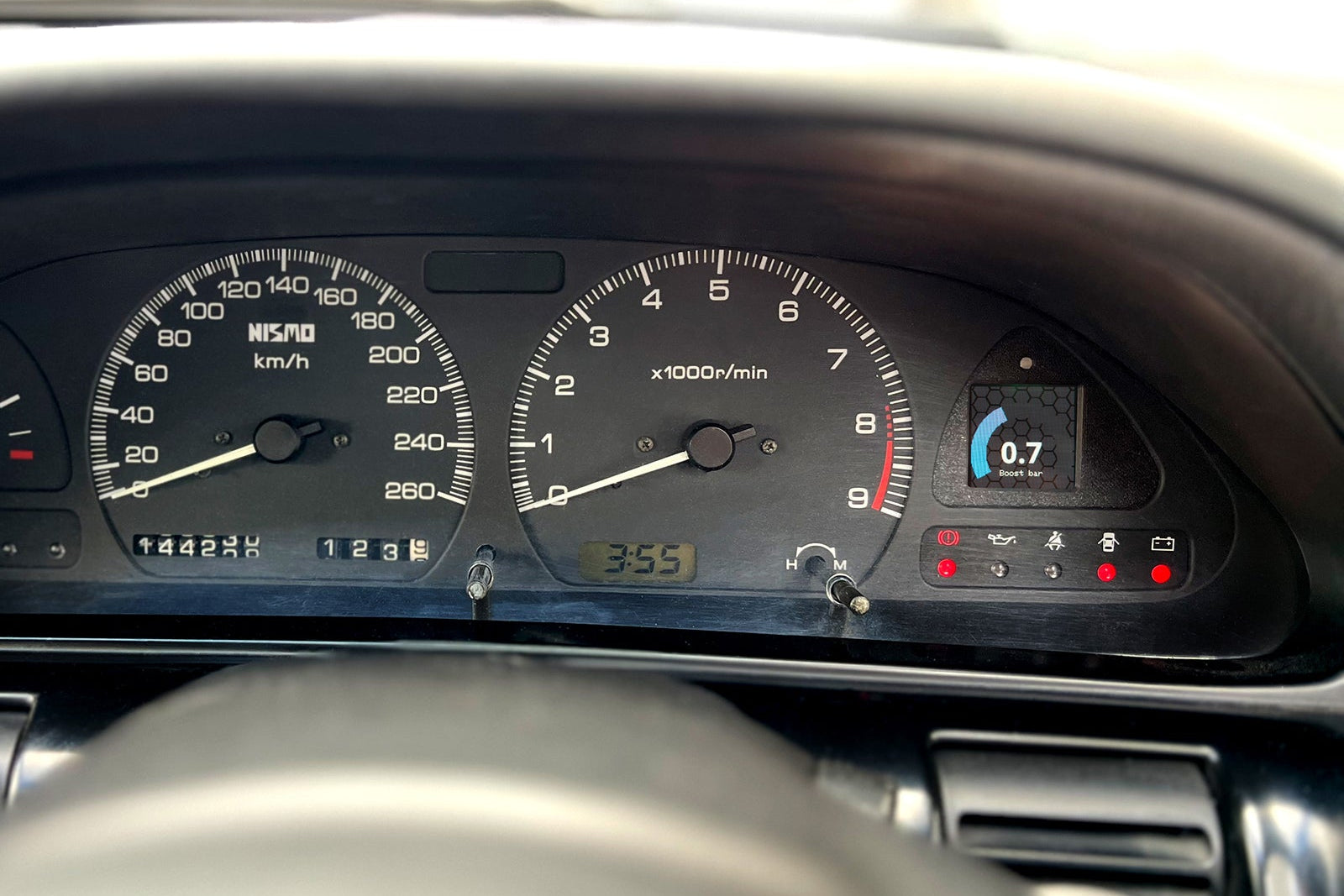

- MFA2.0 Gen2 Datadisplay integrated in a bezel to fit your OEM dash
- Quickstart Guide
- Connector B (6-way Molex)
- Connector C (12-way Molex)
- Different colored pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
- pins to crimp by yourself
Technology
1.5-inch OLED Display
Origin
Designed and manufactured in Germany
Interface
Seamless CAN bus integration
Vehicle Applications
- Nissan 200SX S13 1989-1994
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.
Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
Product Support Documents
Notes
- Designed for left-hand drive and right-hand drive vehicles.
- Supported values vary depending on vehicle platform and manufacturer ECU compatibility/CAN bus data output.
- If specific values are missing, additional sensors or data channels may be added later depending on the setup.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
Technical Resources
- MFD15 Gen2 Downloads and Documentation
- DSS Display Software Downloads and Connection Guide
- Add-Ons Components - Guides and Technical Information
- Manufacturer Product Page
- CANchecked Support Portal
SKU
- SKU: CC59050
Engineered for Seamless Installation
The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.
German Manufacturing
OEM quality display bezels designed, manufactured, and assembled in Germany.
CANchecked Engineering
Software and hardware developed entirely by CANchecked for seamless system integration.
Complete Installation Kit
Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).
Display Setup Software
Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
