SKU: CC53040

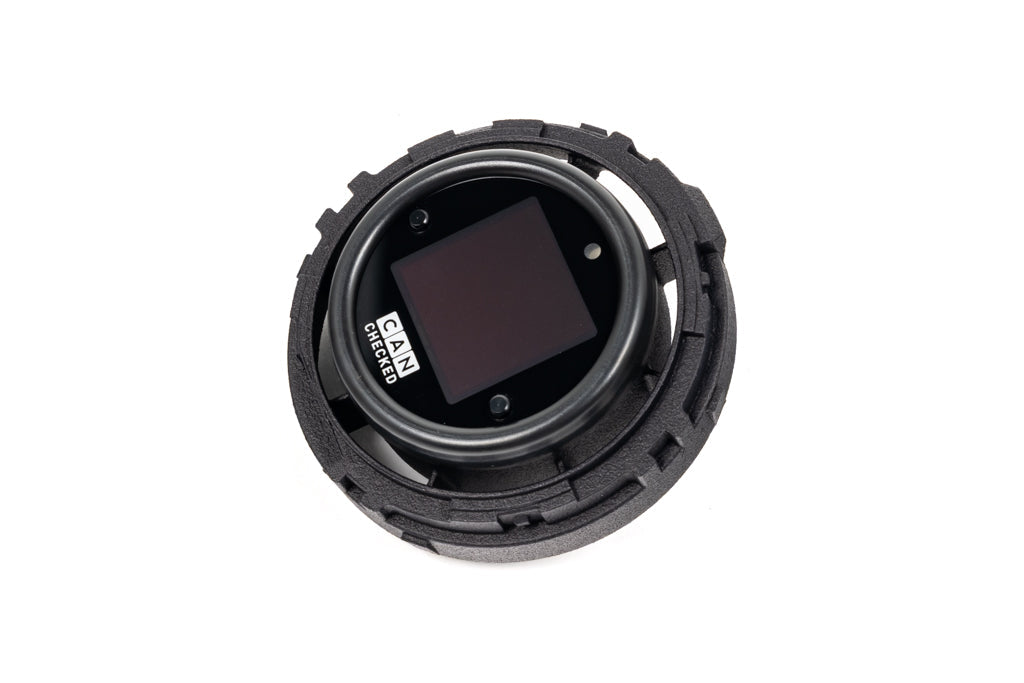

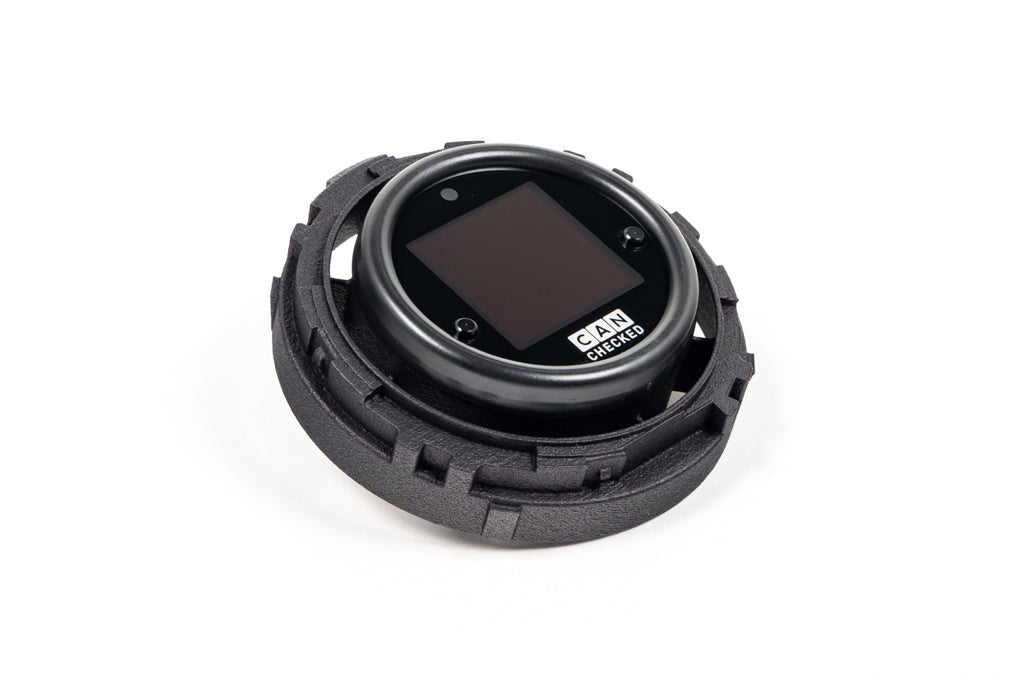

CANchecked Mazda ND Miata MX5 MFD15 Multi Function Display | 1.5" Gen2 (LHD)
$369.99
1 IN STOCK

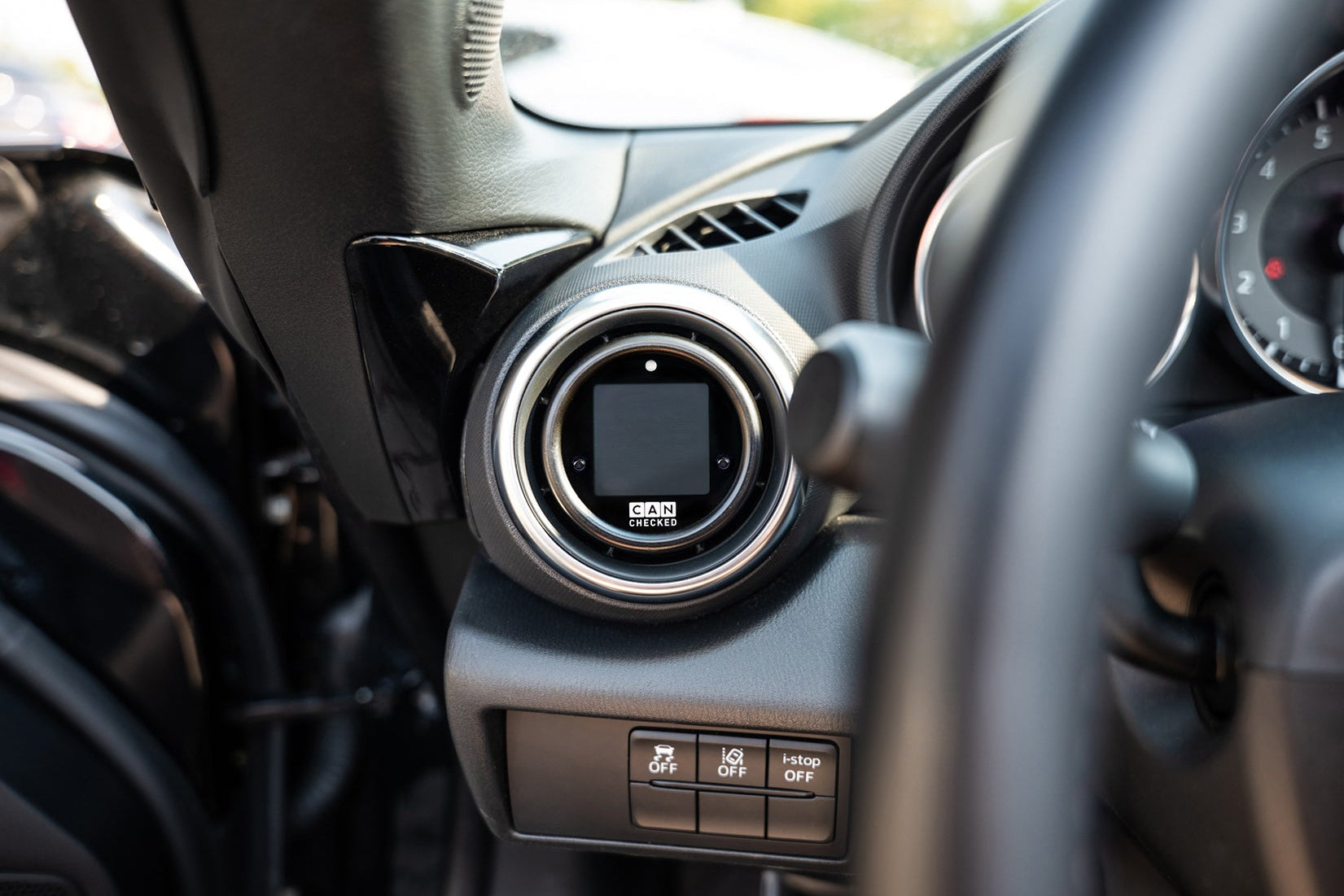

The CANchecked MFD15 Gen2 Data Display for Mazda MX-5 ND provides a fully integrated vehicle-specific monitoring solution designed to bring critical engine and vehicle data directly into the driver's line of sight. Supplied with a Mazda MX-5 ND-specific mounting bezel and plug-and-play connection harness, this package delivers OEM-style integration while unlocking extensive monitoring, diagnostic, and customization capabilities.
At the heart of the system is the compact MFD15 Gen2 display, featuring a high-contrast OLED screen engineered for exceptional visibility even in direct sunlight. The display supports CAN bus communication, OBD2 data acquisition, analog sensor inputs, and WiFi connectivity, allowing users to configure the display, update firmware, upload custom startup screens, and manage settings through CANchecked's Online Display Setup Software (oDSS).
Designed for both street and motorsport applications, the MFD15 Gen2 supports up to eight customizable display pages and can monitor a wide range of engine, performance, and diagnostic parameters. Whether you're tracking oil temperature, boost pressure, ethanol content, exhaust gas temperatures, or ECU data, the system provides a highly configurable platform tailored to your specific requirements.
Product Details
- Vehicle-specific kit designed for Mazda MX-5 ND applications
- High-contrast OLED display with excellent daylight visibility
- Compact 52mm diameter design with 12.5mm installation depth
- Integrated shift light and warning LED functionality
- CAN bus and OBD2 communication support
- WiFi-enabled configuration and firmware updates through oDSS
- Supports up to 8 customizable display pages
- Monitors up to 64 ECU parameters depending on vehicle and ECU support
- Displays up to 128 OBD2 values simultaneously
- Compatible with ISO 11898-2 and SAE J2284 communication protocols
- Supports custom CAN streams and numerous aftermarket ECUs
- Connect up to 6 analog sensors directly to the display
- Direct ethanol sensor support with optional license
- Custom startup logo and display color customization
- Optional live data logging capability
- Optional CAN switching and analog input forwarding functionality
Display Modes
- Analog Gauge
- Dual Value Display
- Single Value Display
- Gear Indicator
- 4-Value Display
- 6-Value Display
- Bar Graph Displays
- Round Gauge Display
- Performance Meter
- Multi-Value Dashboard Views

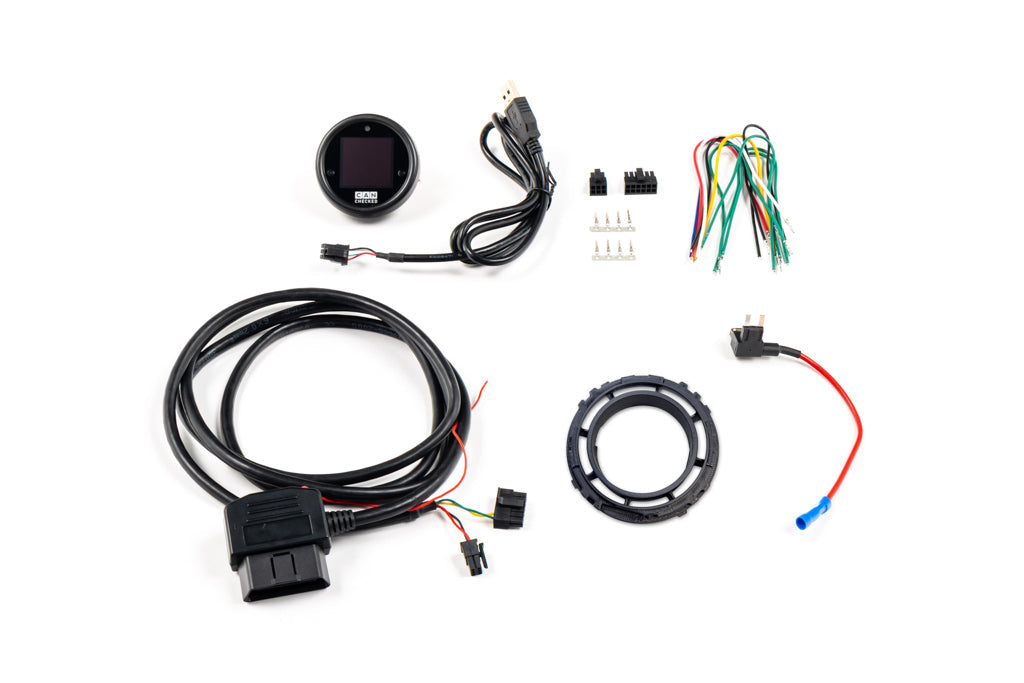

What's Included
- CANchecked MFD15 Gen2 Data Display
- Mazda MX-5 ND-specific mounting bezel
- Vehicle-specific connection harness
- Quick Start Guide

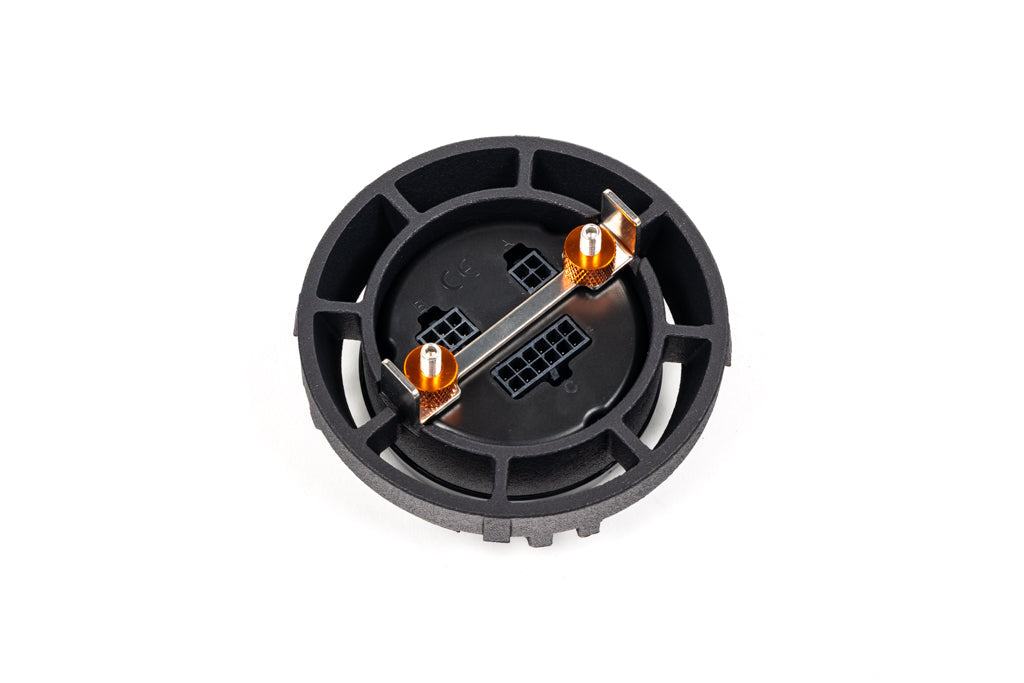

- Connector B (6-pin Molex)
- Connector C (12-pin Molex)
- Pre-assembled wiring leads
- Additional crimp pins
- Two 1K pull-up resistors for NTC sensors
Compatible CANchecked Accessories
- ETK01 External Rotary Controller
- CBD08 CAN Distribution Hub
- ANC04 Analog Input Harness
- NTC01 Temperature Sensor
- TCC01 Type-K Exhaust Gas Temperature Converter
- FLP01 Pressure Sensor
- BST10 Boost Pressure Sensor
Technology
1.5-inch OLED Display
Origin
Designed and manufactured in Germany
Interface
Seamless CAN bus integration
Vehicle Applications
- Mazda ND Miata MX-5
Notes
- Designed for left-hand drive vehicles.
- Supported values vary depending on vehicle platform and manufacturer ECU compatibility/CAN bus data output.
- If specific values are missing, additional sensors or data channels may be added later depending on the setup.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
Technical Resources
- MFD15 Gen2 Downloads and Documentation
- DSS Display Software Downloads and Connection Guide
- Add-Ons Components - Guides and Technical Information
- Manufacturer Product Page
- CANchecked Support Portal
SKU
- SKU: CC53040
Engineered for Seamless Installation
The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.
German Manufacturing
OEM quality display bezels designed, manufactured, and assembled in Germany.
CANchecked Engineering
Software and hardware developed entirely by CANchecked for seamless system integration.
Complete Installation Kit
Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).
Display Setup Software
Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
