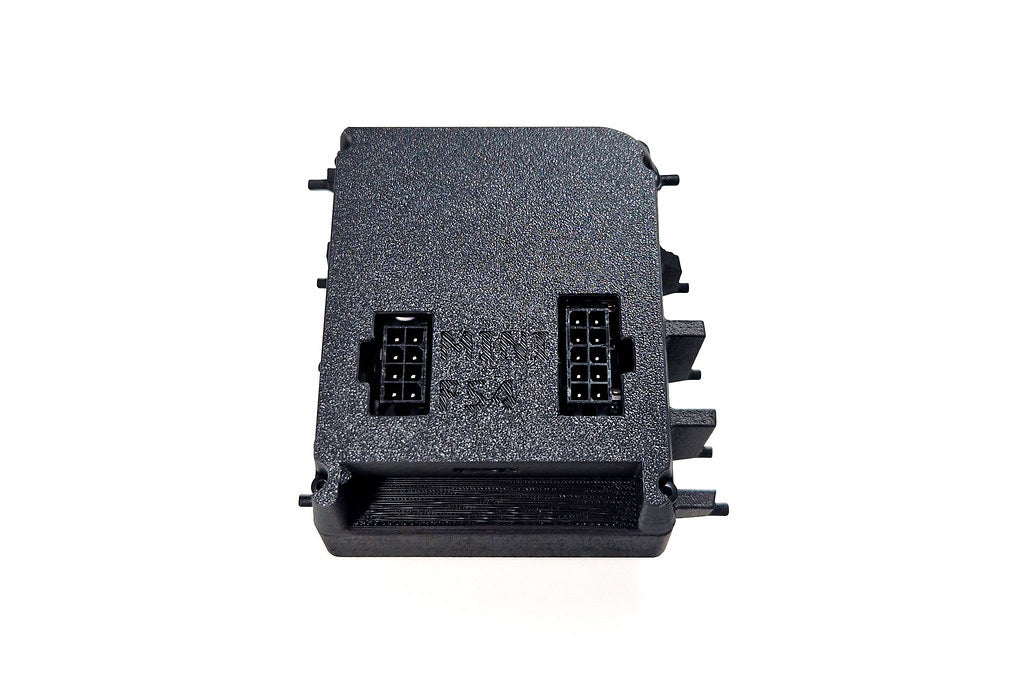

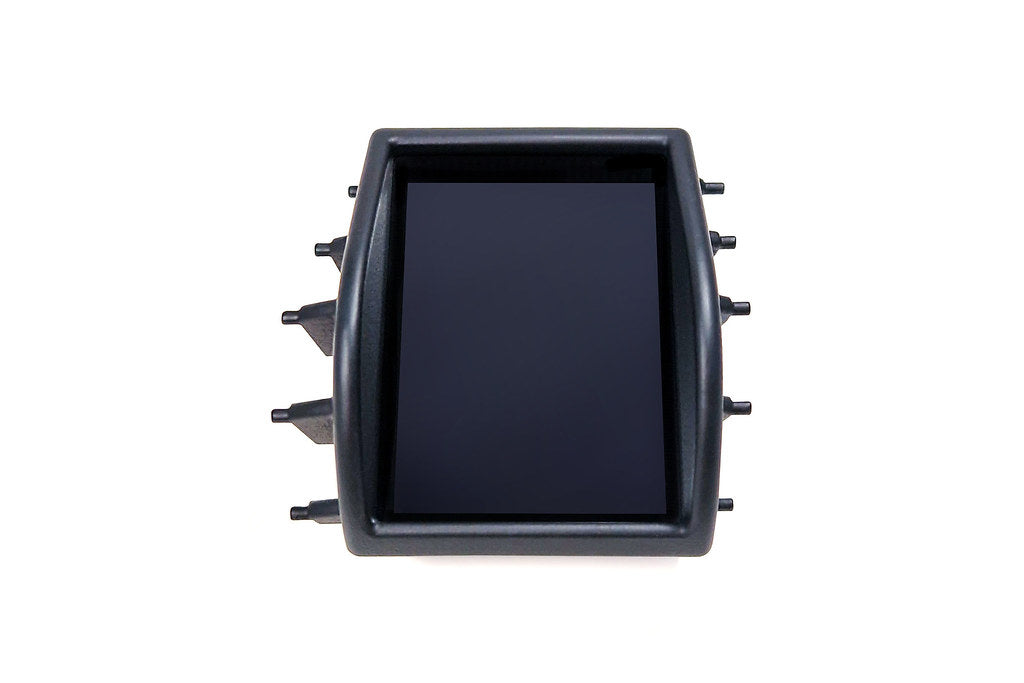

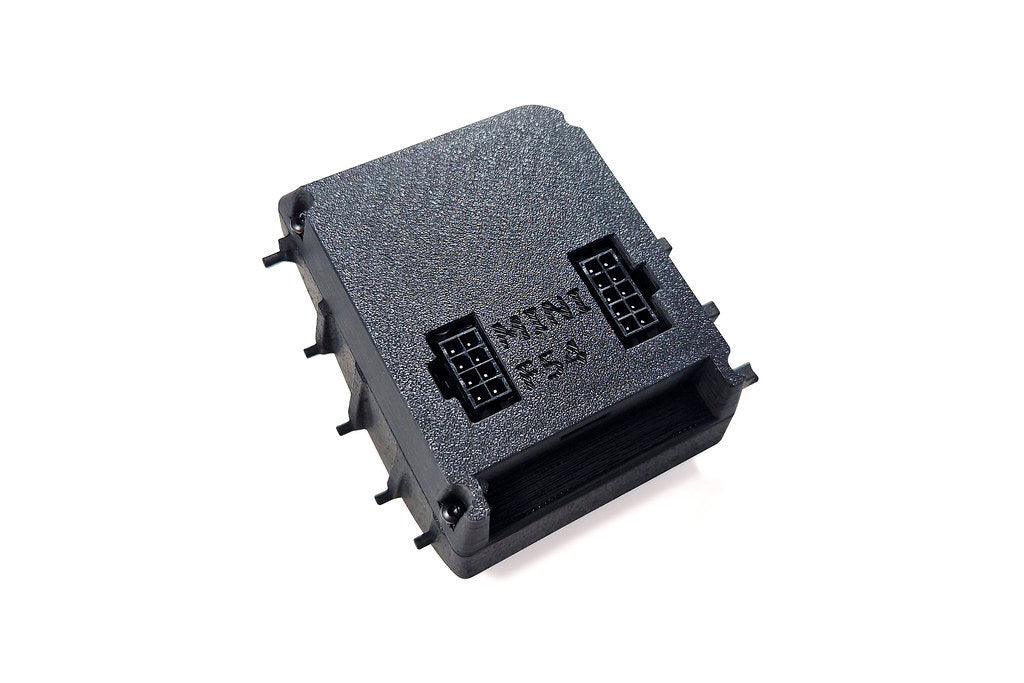

CANchecked F54 MINI Clubman MFD28 Multi Function Display | 2.8" Gen2 (LHD)
$564.99
AVAILABLE TO ORDER
The CANchecked F54 MINI Clubman MFD28 Multi Function Display - 2.8" Gen2 (LHD) is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.

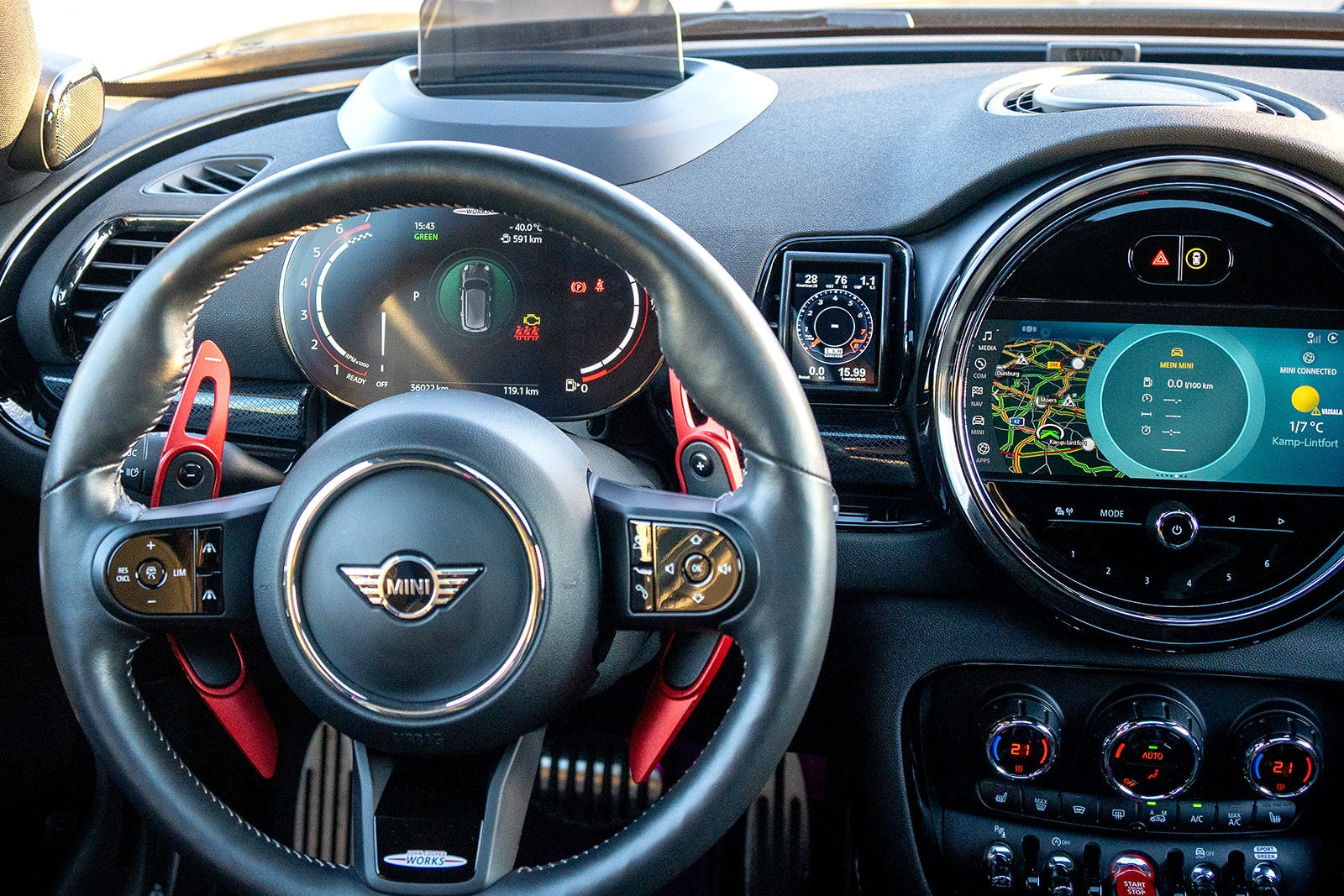

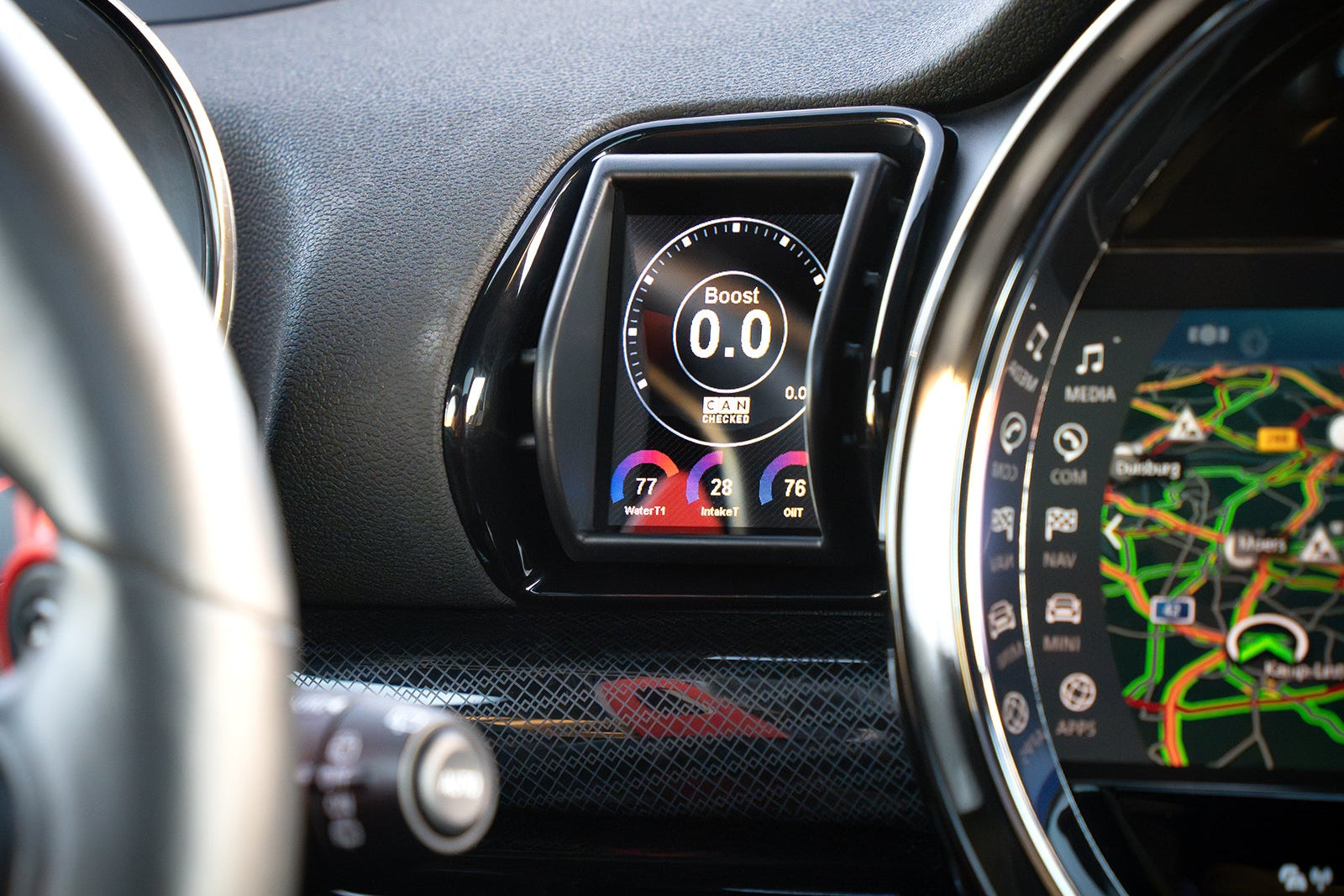

It is well suited for projects that require CAN Bus integration, expandable sensor inputs, integrated shift light functionality, and built-in warning functions. The MFD28 Gen2 transforms your air vent into an intelligent display with features you don't want to miss.
Our displays are designed so that they can be installed by anyone.
Product Details
- Perfect integration: The vehicle-specific bezel still allows airflow past the display
- Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
- Gear display: Directly via Can Bus or calculated from speed and rpm
- Touchscreen: Navigate through pages using intuitive swipe gestures
- Customization: Design your own pages, add your own pictures or start animation
- Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
- Can Switching: Use your display as a keypad and send your own can messages to the bus
- Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
- Logging: Log and save your data to the internal SD card for later analysis.
- Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
- DTC: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
- Dimming: Your display automatically dims along with the instrument panel
What’s Included

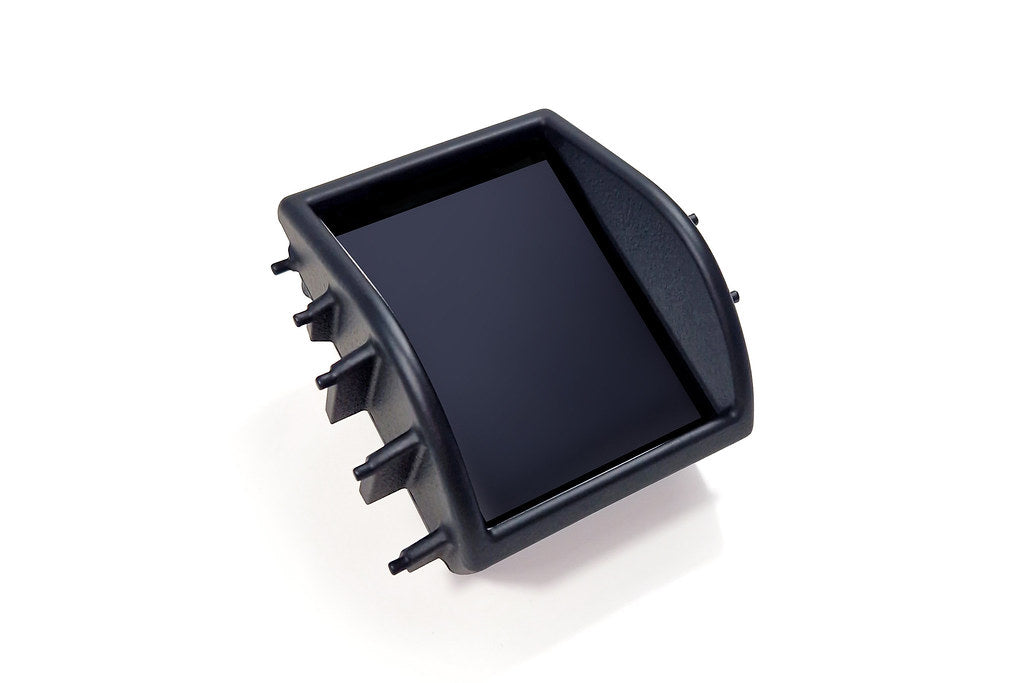

- MFD28 Gen2 data display integrated in the ventilation insert for LHD vehicles
- vehicle-specific connection cable
- Quickstart Guide

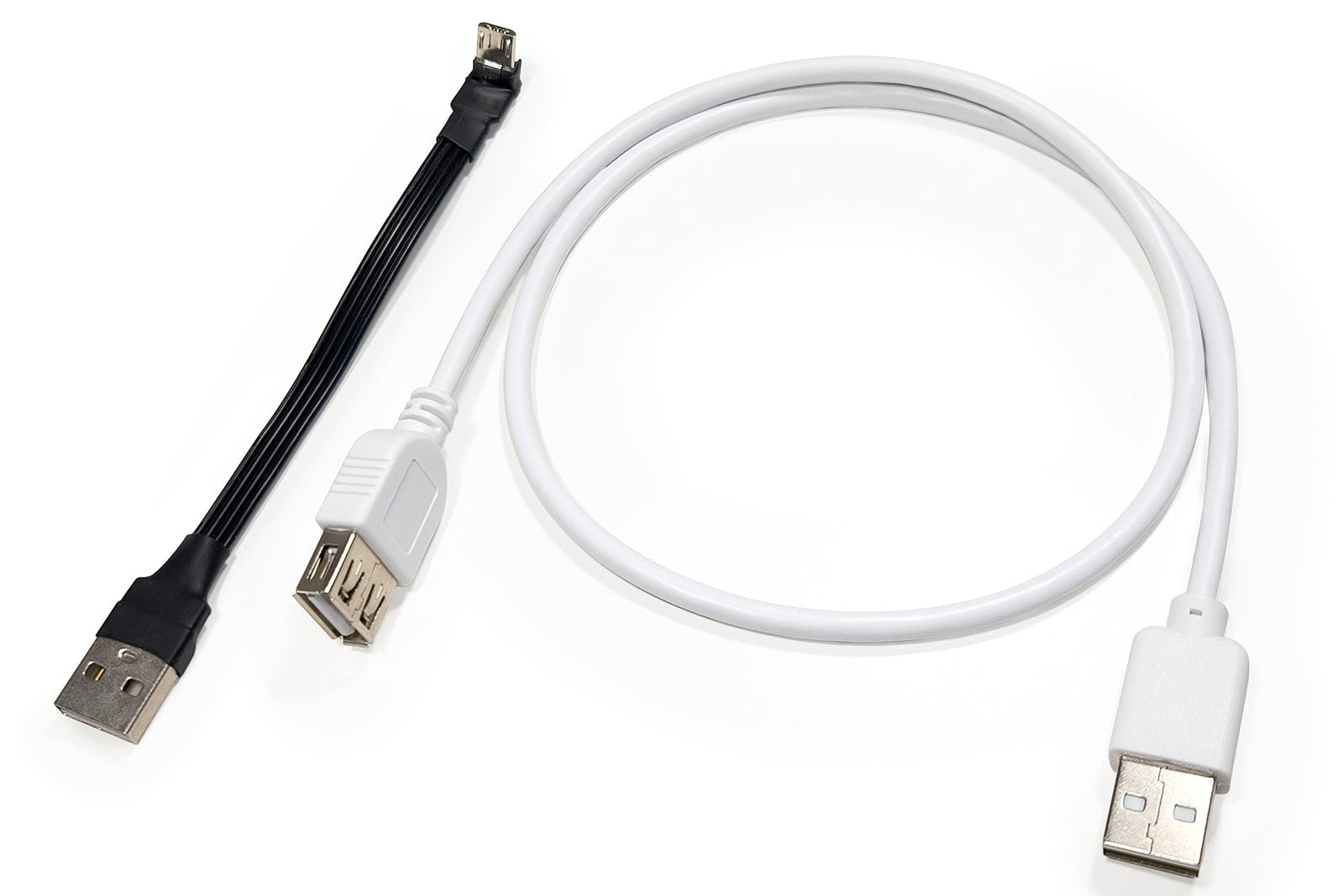

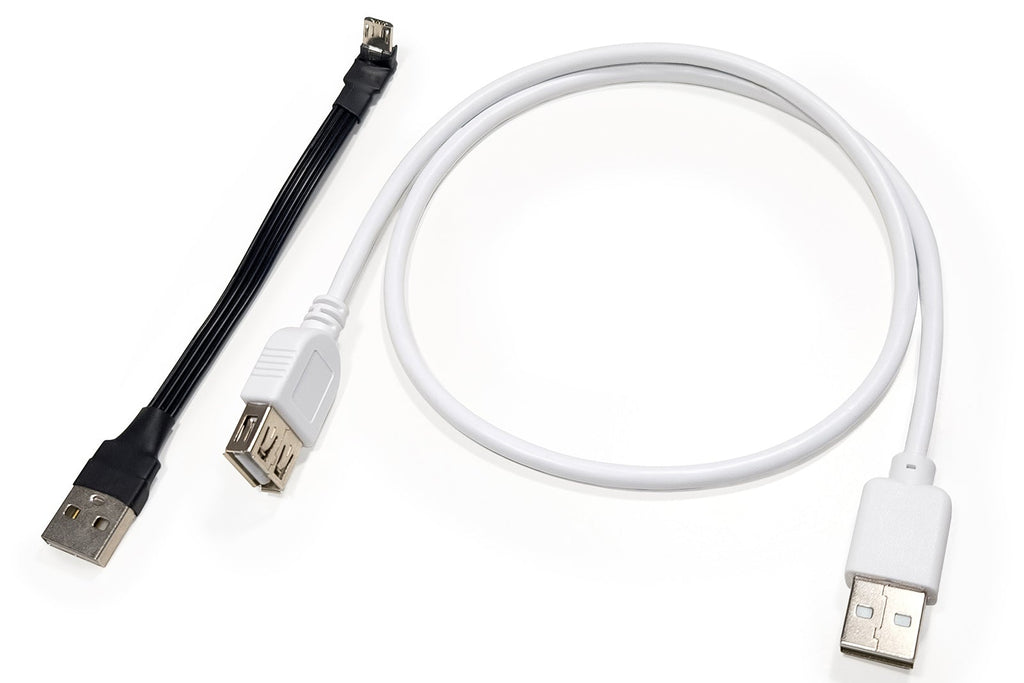

- USB data cable
- SD card (pre-installed to the display)
- SD card adapter
- Display foil (to prevent reflections)
Technology
2.8-inch Touchscreen Display
Origin
Designed and manufactured in Germany
Interface
Seamless CAN bus integration
Vehicle Applications
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.
Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
Product Support Documents
Notes
- Designed for left-hand drive vehicles.
- Supported values vary depending on vehicle platform and manufacturer ECU compatibility/CAN bus data output.
- If specific values are missing, additional sensors or data channels may be added later depending on the setup.
- Professional installation recommended for advanced CAN bus configuration.
Warranty
Includes a 12-month limited manufacturer warranty from the date of purchase covering defects in materials and workmanship under normal use. Warranty support is handled through the original authorized dealer or distributor.
Technical Resources
- MFD28 and MFD32 Gen2 Downloads and Documentation
- DSS Display Software Downloads and Connection Guide
- Add-Ons Components - Guides and Technical Information
- Manufacturer Product Page
- CANchecked Support Portal
SKU
- SKU: CC34202
Engineered for Seamless Installation
The CANchecked Gen2 Multi Function Displays combines compact packaging, premium manufacturing, and an OEM+ housing installation into a fully integrated display solution. Designed and engineered in Germany, every component has been developed to provide reliable performance, clean installation, and direct compatibility with your vehicle as well as universal applications.
German Manufacturing
OEM quality display bezels designed, manufactured, and assembled in Germany.
CANchecked Engineering
Software and hardware developed entirely by CANchecked for seamless system integration.
Complete Installation Kit
Includes all wiring, connectors, and harnesses required for installation as well as downloadable install guides (components differ depending on vehicle).
Display Setup Software
Customize gauge layouts and branding, manage sensor data, view diagnostic logs, and update firmware via PC or Mac with CANchecked's DSS.
