CANchecked E46 M3 / 3-Series MFD28 Multi Function Display | 2.8" Gen2 (LHD)

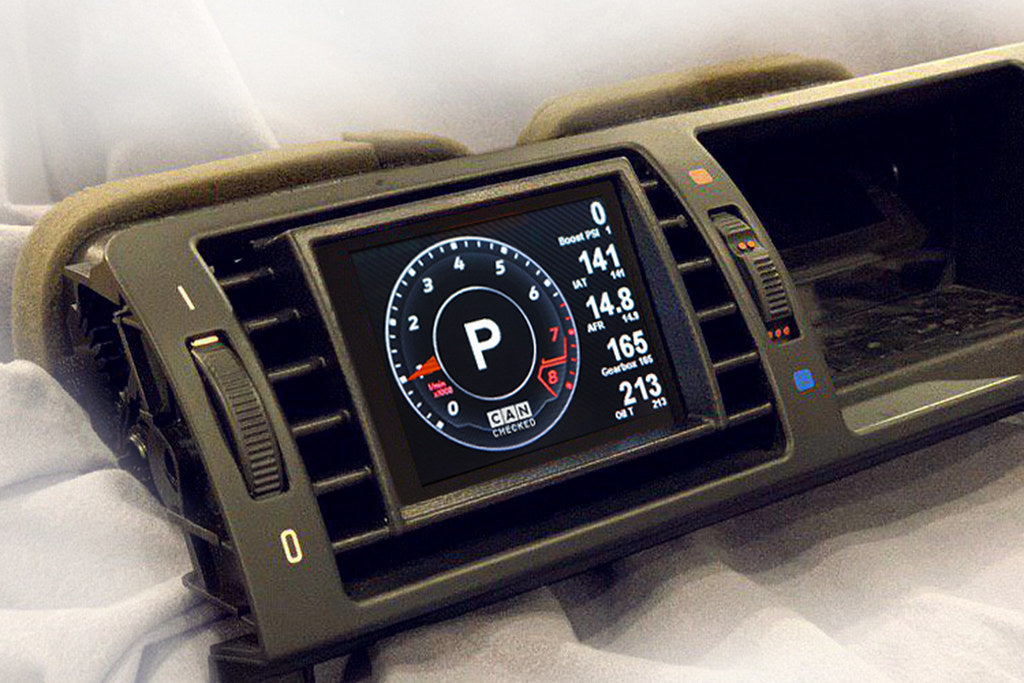

The CANchecked BMW E46 3-Series / M3 Multi Function Display - 2.8" Gen2 (LHD) brings modern data monitoring and motorsport-level functionality to one of BMW’s most iconic platforms. Designed specifically for the E46 chassis, this system integrates directly into the factory interior, replacing a dashboard vent with a high-resolution display that delivers real-time access to critical engine and vehicle data.

Unlike traditional gauge solutions, the CANchecked system taps directly into the vehicle’s CAN Bus network, allowing it to read the same data the ECU processes. This provides faster, more accurate data compared to OBD-based solutions while unlocking a significantly wider range of parameters. The result is a clean OEM+ installation paired with advanced performance monitoring typically reserved for dedicated race displays.

Built around a vibrant 2.8-inch touchscreen display, the system offers multiple configurable pages and layouts similar to a smartphone interface. Drivers can monitor key engine vitals, performance metrics, and diagnostic data in real time while also logging information for later review. Whether used for daily driving, tuning, or track applications, this display delivers the insight needed to better understand and push the limits of the E46 platform.

The CANchecked E46 display is far more than a simple performance meter. By accessing the CAN data stream directly through the vehicle, it opens up a wide range of ECU data channels and presents them in a format that is easy to read, customize, and use. With analog inputs for external sensors, fault code reading and clearing capability, warning functions, and configurable display layouts, this system gives E46 owners a powerful OEM-style solution for both street and performance use.

Product Details

• 2.8-inch high-resolution LCD touchscreen display
• Vehicle-specific vent integration for OEM-style fitment
• Direct CAN Bus data access for real-time ECU monitoring
• Faster and more comprehensive data than OBD-based systems
• Customizable display layouts, colors, and data views
• 4 analog inputs for external sensors such as oil pressure, exhaust gas temperature, and more
• Integrated data logging functionality
• Fault code reading and clearing capability
• Performance monitoring and driver data analysis
• Configurable alarms and warning thresholds
• USB and wifi connectivity for setup and configuration


Technical Overview

• Reads ECU data directly through CAN Bus for maximum speed and accuracy
• Provides access to a wide range of engine and vehicle parameters
• Supports both ECU data and external analog sensor inputs
• Customizable display pages with multiple layouts and data views
• Windows-based software used for configuration and customization
• Internal logging capability for performance review and diagnostics
• Designed as a vehicle-specific solution with integrated vent housing

Display Functions

• Multi-page customizable interface with user-defined layouts
• Real-time monitoring of engine vitals and performance data
• Graph and gauge-style display options
• Performance meter functions
• Integrated warning alerts with adjustable thresholds
• Custom startup screens including logos and images
• Fault code reading and reset functions

Performance & Data Monitoring

• Engine temperatures including oil, coolant, and intake air
• Throttle position and accelerator input
• Air/fuel ratio and lambda values
• Brake pressure and system voltage
• Engine speed, vehicle speed, and gear
• G-force and acceleration data
• CAN data stream from the vehicle ECU
• Additional external sensor monitoring through analog inputs
