CANchecked Dodge Charger LX Facelift MFD15 Multi Function Display | 1.5" Gen2 (LHD)

The CANchecked Dodge Charger LX Facelift MFD15 Multi Function Display - 1.5" Gen2 (LHD) is a CANchecked digital display solution designed for enthusiasts and tuners who need a compact, configurable way to monitor critical engine and vehicle data.

It is well suited for projects that require CAN Bus integration, OBD-based data access, wireless configuration, and expandable sensor inputs. The MFD15 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight.

This kit is supplied with a vehicle-specific bezel and a connection kit.

Product Details

• Compact design: 52 mm in diameter and only 12.5 mm deep
• Faceplate-mounted LED: The LED on the front of the display can be used as a shift light and/or as a warning LED
• Can Bus: Support of Can Bus ECUs, own Can streams and from 2008 on OBD2 and deep values
• WiFi: connect to your smartphone or PC and configure it using our Web App

• Additional inputs: connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display
• Preset Alarms: predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees.
• Customization: Use your own startup logo and color scheme; choose up to eight pages of different views and customize your display to best suit you and your vehicle
• Online logging: Log your data with your smartphone or PC and save the log to your device for later analysis (may require license)
• Flex Fuel: View ethanol content and temperature on your display (may require license)

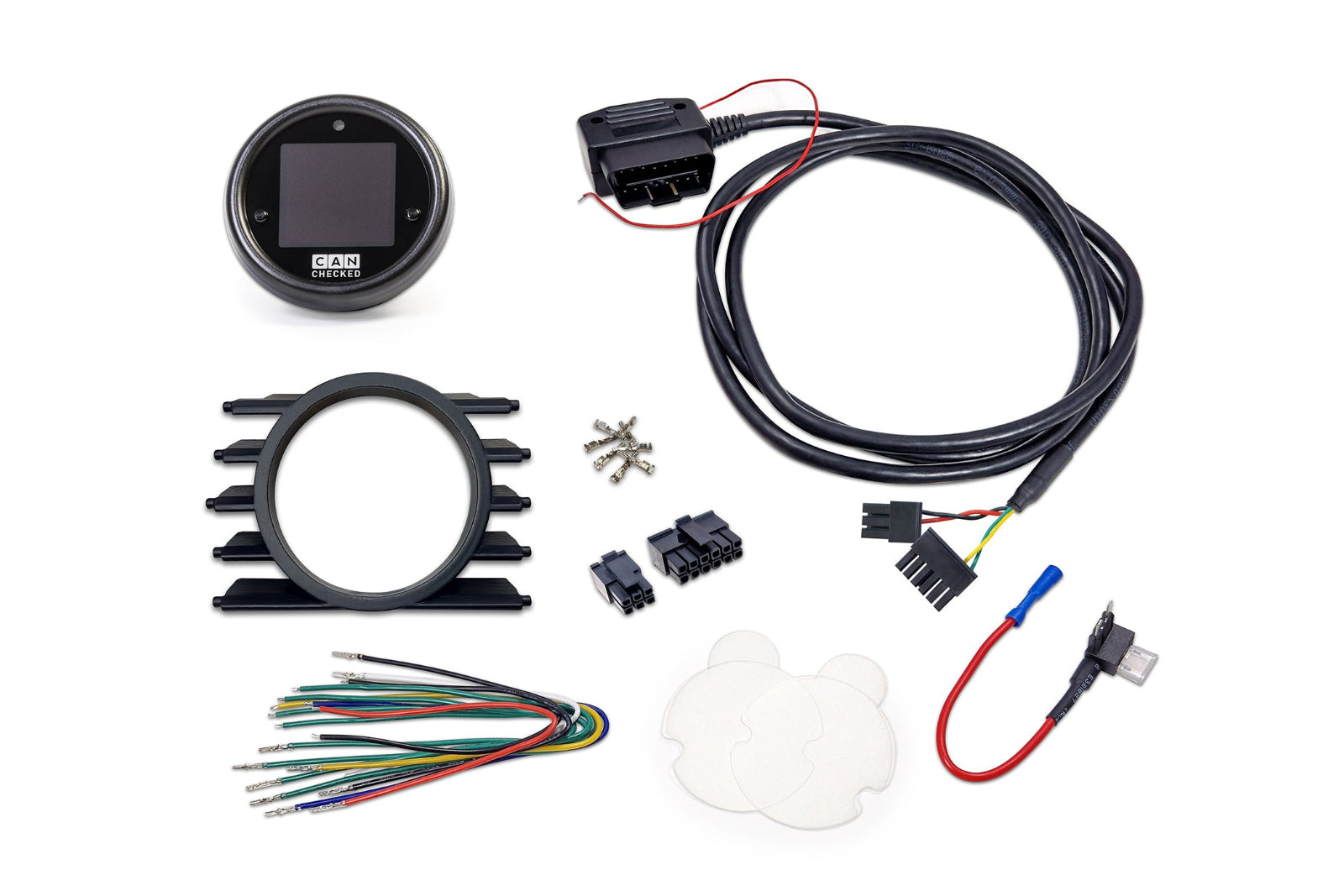

What’s Included

• MFD15 Gen2 Datadisplay
• Vehicle-specific bezel for LHD vehicles
• Vehicle-specific OBD connection cable
• Quickstart Guide
• Connector B (6-way Molex)
• Connector C (12-way Molex)
• Different colored pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins to crimp by yourself
