If you own a BMW G87 M2, one of the first visual upgrades enthusiasts pursue is removing the factory amber front reflectors. U.S.-spec reflectors interrupt the otherwise aggressive front-end design, and replacing them with painted units creates the seamless, European-inspired look many owners prefer. This step-by-step DIY guide walks you through safely removing the OEM reflectors and installing painted replacements without damaging your bumper or surrounding trim. Whether you are aiming for a cleaner aesthetic, preparing for a full appearance build, or simply refining the details, this is one of the highest-impact cosmetic upgrades you can complete in under an hour.
Why Replace the Factory Reflectors?
Factory reflectors serve regulatory purposes, but from a design perspective they often stand out against modern BMW paint finishes. Upgrading to painted reflectors allows you to:
- Achieve a color-matched OEM+ appearance
- Eliminate the bright amber contrast
- Enhance the front bumper’s sculpted lines
- Align the vehicle visually with European-market models
- Complete a subtle but high-value aesthetic modification
For many owners, this is considered a foundational upgrade before moving into carbon aero, spacers, or suspension work.
Tools Required
Before beginning, gather the following:
- 8mm socket
- Ratchet

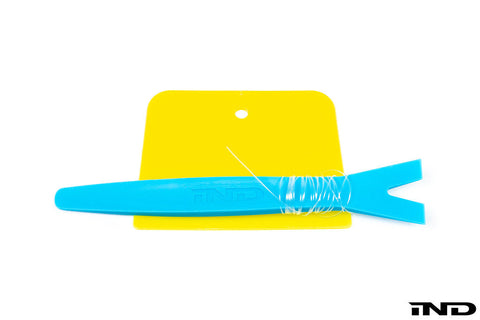

- Trim removal tool (recommended)
- Microfiber towel
- Painter’s tape (optional but helpful)
No cutting, drilling, or permanent modification is required.
Installation Time
Estimated time: 20–40 minutes
Difficulty level: Beginner-friendly
Perfect for first-time DIY enthusiasts.
Step 1 — Prepare the Vehicle
Park the car on a flat surface and turn the steering wheel to expose the inner fender liner on the side you are working on. This provides easier access behind the bumper. For additional safety, allow the vehicle to cool if it has been driven recently.
Step 2 — Access the Fender Liner
Locate the fasteners securing the front portion of the wheel liner. Remove the necessary screws using the 8mm socket and gently pull the liner back just enough to reach behind the reflector housing. Avoid forcing the liner, it should flex with minimal effort.
Step 3 — Release the OEM Reflector
From inside the bumper, identify the retaining tabs holding the reflector in place. Apply steady pressure to the tabs while pushing outward. The reflector will begin to release from the bumper.
Important:
Work slowly and evenly to prevent scratching the paint. Using a microfiber towel around your hand can provide extra protection.
Although using a heat gun is highly recommended to help loosen the factory 3M tape, please use extreme caution, as excessive heat can damage the factory paint.
Step 4 — Clean the Mounting Surface
Once removed, inspect the opening and wipe the area clean. Removing dust and debris ensures the new reflector sits flush and prevents trapped contaminants.

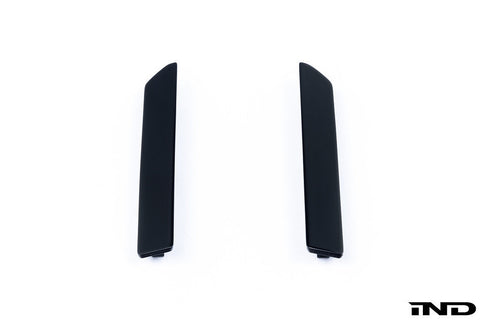

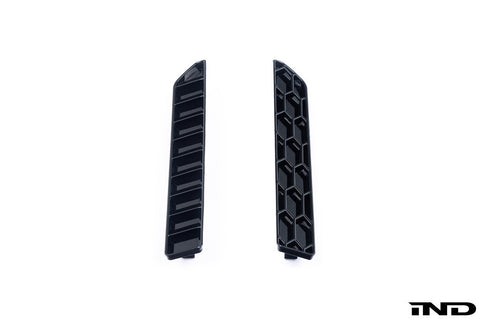

Step 5 — Install the Painted Reflector
Align the replacement reflector with the bumper opening and press firmly until you feel the tabs engage. You should hear or feel a subtle click when properly seated.
Check the edges to confirm:
- Flush fitment
- Even panel gap
- Proper alignment
The G87 M2 front reflectors arrive with 3M tape pre-installed. While it may not be immediately visible due to the painted outer film, carefully lift the edge to expose the adhesive before installation.
Step 6 — Reassemble the Fender Liner
Reposition the liner and reinstall the screws. Repeat the process on the opposite side. Step back and admire the transformation, the difference is immediate.
Pro Installation Tips
- Perform the install in a well-lit environment.
- Use painter’s tape around the reflector opening if you want added paint protection.
- Never pry from the exterior of the bumper. Always release from behind.
- Install both sides before evaluating alignment.
What to Expect After Installation
This modification does not affect vehicle electronics, sensors, or drivability. Instead, it delivers a purely visual upgrade that dramatically refines the front-end presentation. Many enthusiasts consider reflector replacement one of the highest ROI cosmetic upgrades available for the G87 platform.
Final Thoughts
Small details define premium builds. By replacing the factory reflectors, the G87 M2 gains a cleaner, more intentional appearance that better reflects BMW’s performance design language. It is a quick upgrade, requires minimal tools, and produces results that rival far more expensive modifications. For owners building toward a cohesive OEM+ aesthetic, this is an ideal place to start.
