MMX Performance G8X M3 / M4 Lowering Spring Set
The MMX Performance G8X M3 / M4 Lowering Spring Set is a model-specific spring kit developed to reduce ride height and improve driving dynamics without sacrificing ride quality. Separate spring sets are offered for the G80 / G81 M3 and the G82 / G83 M4, each with its own rear-wheel-drive and xDrive part number.
Ride height reduction differs by model. The G80 / G81 M3 is lowered approximately 35mm at the front and 15mm at the rear. The G82 / G83 M4 is lowered approximately 30mm front and 30mm rear in rear-wheel-drive form, or 25mm front and 20mm rear on xDrive cars.
Spring poundage is developed specifically for each model rather than shared across the platform, and the rates are set to work with the factory dampers, Adaptive M or non-adaptive. This matters when selecting a spring: going lower or stiffer than this set leaves the dampers mismatched to the spring rate and the springs themselves running out of travel.
Lowering the vehicle reduces the center of gravity and the factory wheel arch gap, which is the visual and dynamic change most owners are looking for from a spring kit on this platform.

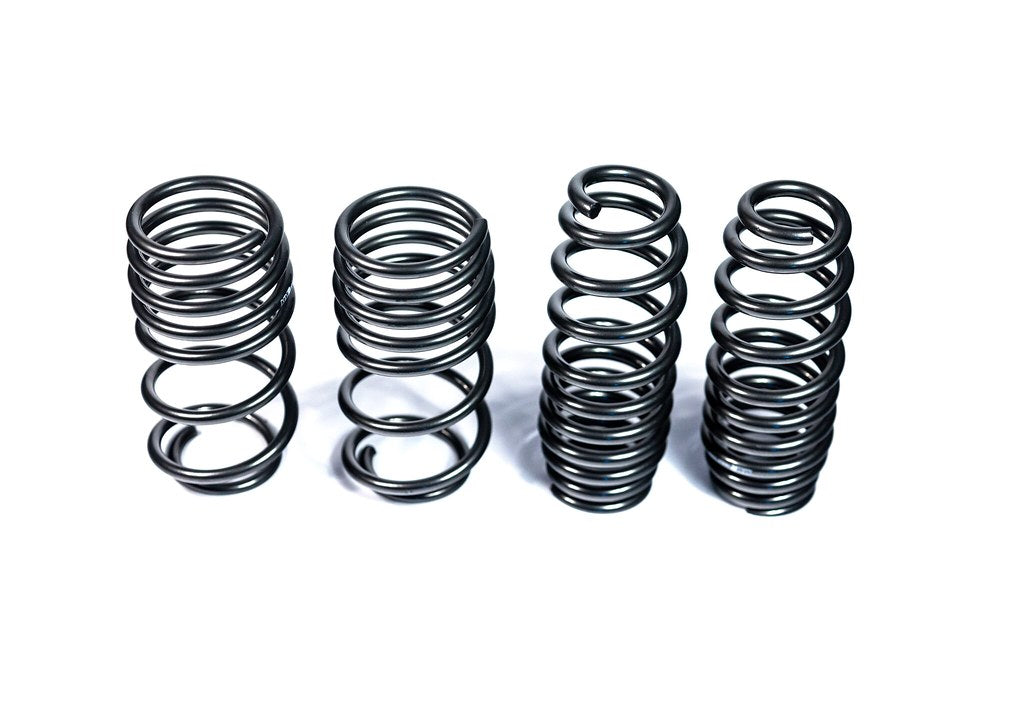

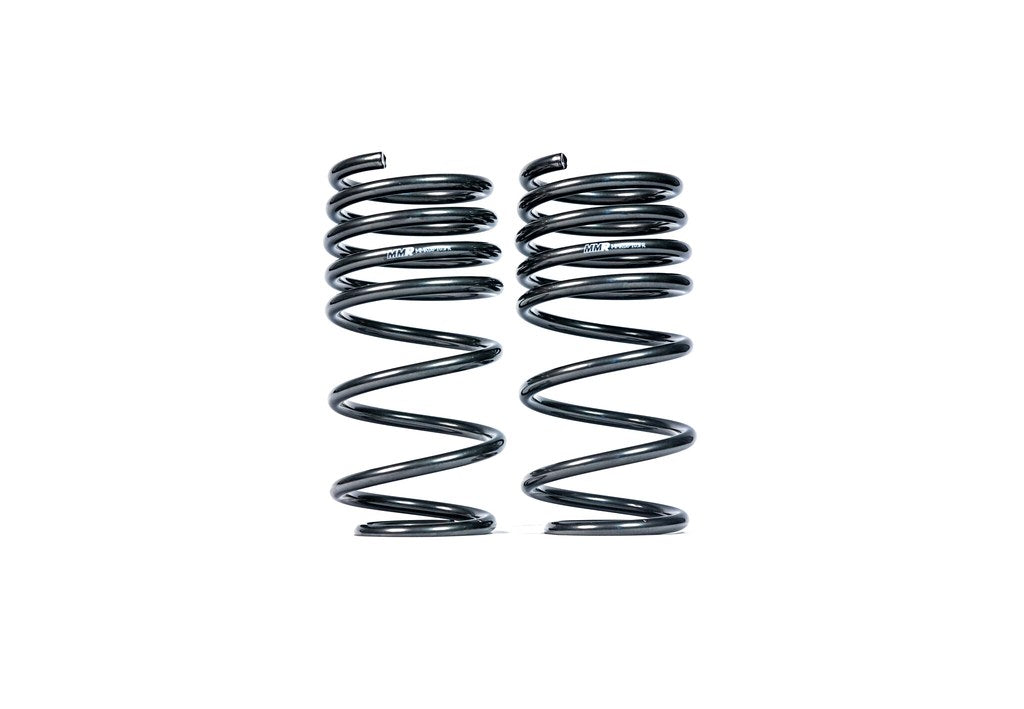

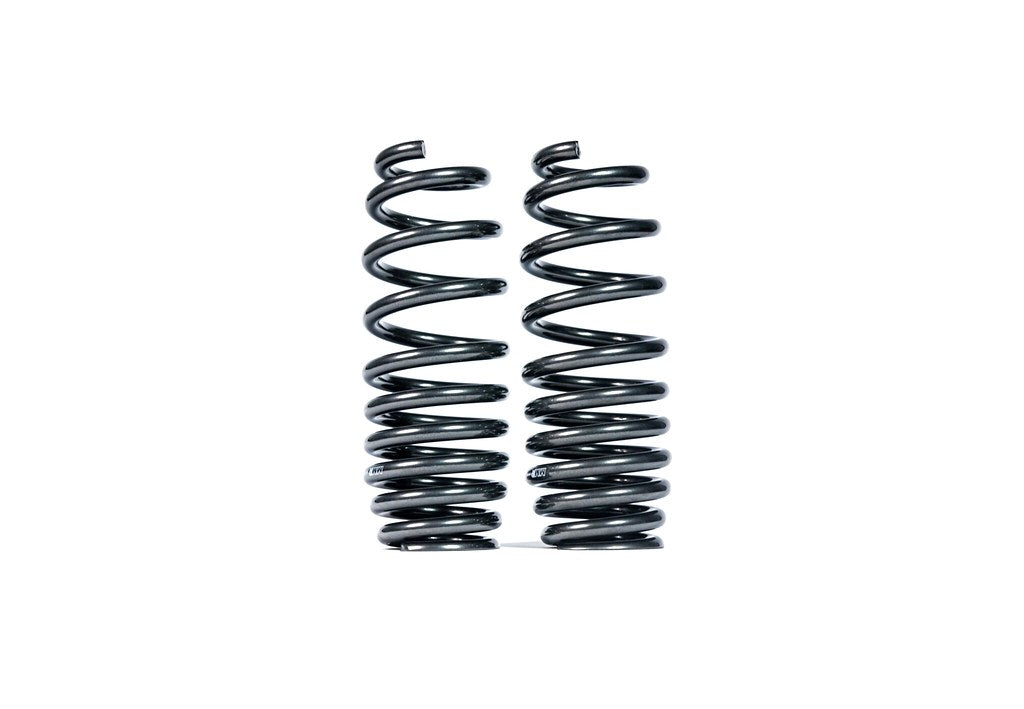

Each spring is powder coated in MMX Metallic Grey.
Product Details
- Model-specific spring rates developed separately for the M3 and the M4
- Individual part numbers for rear-wheel drive and xDrive
- G80 / G81 M3: approximately 35mm front and 15mm rear
- G82 / G83 M4 RWD: approximately 30mm front and 30mm rear
- G82 / G83 M4 xDrive: approximately 25mm front and 20mm rear
- Developed for use with factory Adaptive M and non-adaptive dampers
- Reduces ride height and the factory wheel arch gap
- Powder coated in MMX Metallic Grey
Available Configurations
- MMR08-1601: G80 / G81 M3 RWD
- MMR08-1604: G80 / G81 M3 xDrive
- MMR08-1602: G82 / G83 M4 RWD
- MMR08-1606: G82 / G83 M4 xDrive
Verified Vehicle Applications
Select By Model And Drivetrain
- MMR08-1601 — G80 / G81 M3, rear-wheel drive
- MMR08-1604 — G80 / G81 M3, xDrive
- MMR08-1602 — G82 / G83 M4, rear-wheel drive
- MMR08-1606 — G82 / G83 M4, xDrive
Ride Height Drop
- G80 / G81 M3: approximately 35mm front, 15mm rear
- G82 / G83 M4 RWD: approximately 30mm front, 30mm rear
- G82 / G83 M4 xDrive: approximately 25mm front, 20mm rear
Damper Compatibility
- Compatible with factory Adaptive M and non-adaptive dampers
What is the ride height reduction for each model?
The G80 / G81 M3 is lowered approximately 35mm at the front and 15mm at the rear. The G82 / G83 M4 is lowered approximately 30mm front and 30mm rear in rear-wheel-drive form, or 25mm front and 20mm rear on xDrive.
Are aftermarket dampers required?
No. The spring rates are developed for use with the factory dampers, both Adaptive M and non-adaptive.
Do the M3 and M4 use the same spring set?
No. Spring poundage is developed separately for each model, and each model has its own rear-wheel-drive and xDrive part number. Select the set that matches the vehicle.
Can a greater ride height reduction be achieved on the factory dampers?
No. Going lower or stiffer than this spring set leaves the dampers mismatched to the spring rate and the springs running out of travel.
Is an alignment required after installation?
Yes. Changing ride height alters camber and toe, so a four-wheel alignment should be carried out once the vehicle has settled. Professional installation is recommended.
What is the spring finish?
The springs are powder coated in MMX Metallic Grey.
Warranty
Includes a 1-year manufacturer warranty against defects in materials and workmanship.
Development
Designed and tested in the United Kingdom.
