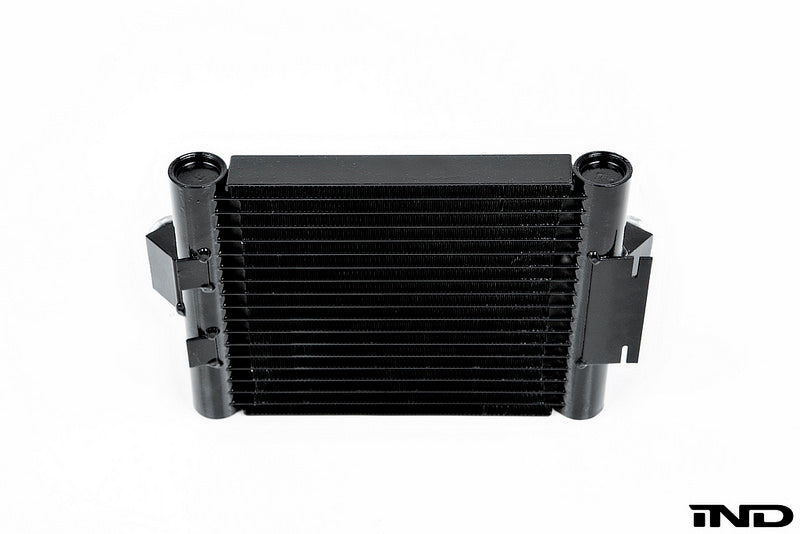

CSF BMW F-Chassis (N55) Race-Spec Oil Cooler

SKU: 8145

Regular price $399.00



  • Innovative 2-core in-series system.
    • Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a ~40% Increase in Heat Rejection
    • Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
    • High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
    • Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
    • “Drop-In Fit” Requiring No Modifications to Install – Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
  • World’s 1st and only true “plug-and-play” upgraded engine oil cooler for the BMW N55 engine
  • Track Tested and Proven by Hittman Racing’s M235iR Endurance Race Car
  • Requires Additional ½ Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF’s Upgrade Race-Spec N55 Oil Cooler: ~7.5 Quarts)
  • For a More In-Depth Look Please Check Out the CSF N55 Oil Cooler Press Release
  • Replaces OEM Part#: 17217618360
