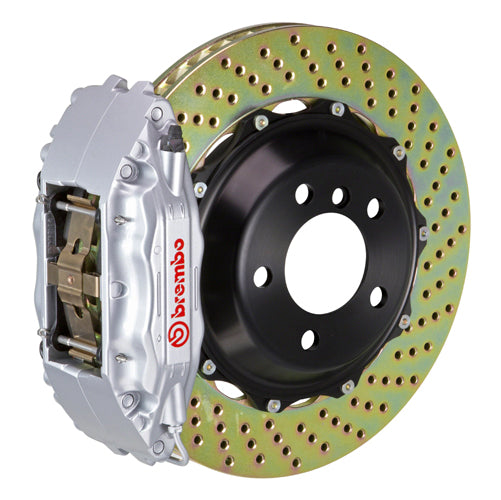

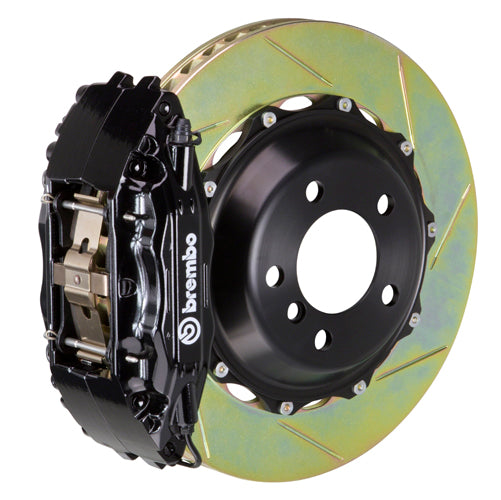

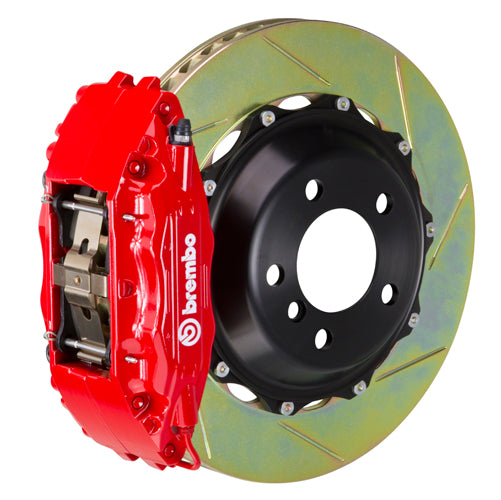

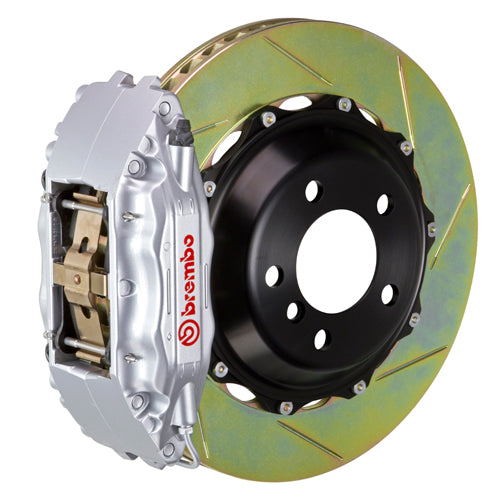

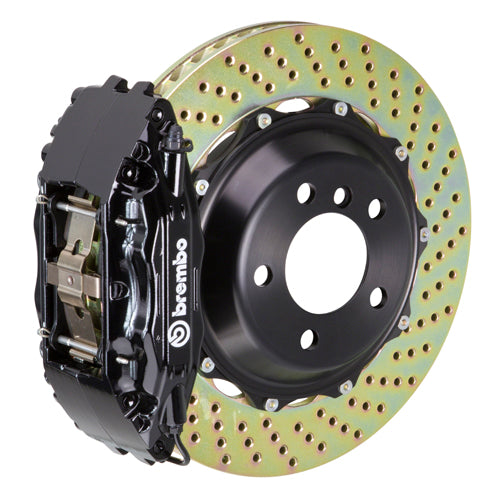

Brembo E36 M3 GT Big Brake Kit - 332x32mm 2-Piece Front

SKU: 1B1.7004A2

Regular price $3,895.00

Options:*Required

$3,895.00

Product Description:

  • (F) 4-Piston Calipers
  • 332x32mm (13.1") 2-Piece Discs
  • Complete Front Axle Set
  • Pre-Assembled
  • All Necessary Hardware Included

INTENDED USE

  Street   Track   Race

___ ___ ___ ___ ___



CALIPER

  • Body: Cast 2-Piece Radial Mount
  • Piston Configuration: 4-Piston
  • Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

DISC

  • Type: Cross Drilled
  • Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
  • Diameter: 332mm
  • Width: 32mm
  • Air Gap: 17mm
  • Annulus: 54mm
  • Construction: 2-Piece Disc Assembly
  • Vane Design: Vented Curved 48 Vane
  • Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

FRICTION MATERIAL

  • Brembo High Performance FM1000
  • Pad Volume / Surface Area: 76.4 | 62.1

NOTE: 1995 E36 M3 models require minor modification to the lower control arm outboard of the ball joint

INCLUDED HARDWARE

  • Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
  • Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

WHEEL FITMENT

Please contact us for custom color options.

Images are for representational purposes only. Actual product may vary.
