Performance Gain: 12-15hp, 12-18ft-lb

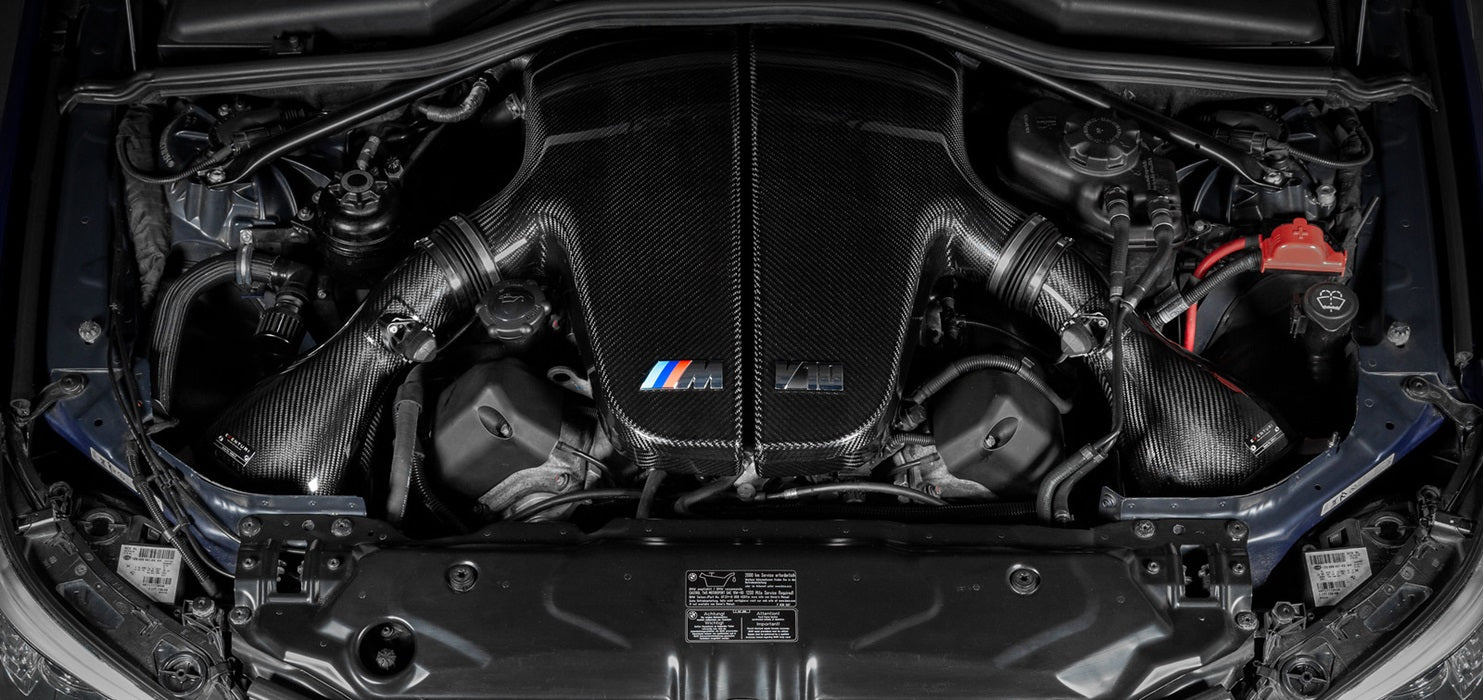

Our updated E60/E63 M5/M6 intake system retains the performance gains of our original system and benefits from the experience we have gained over the years to accomplish a more integrated design. By integrating the MAF tube into the carbon housing and replacing the OEM flexible hoses with our custom made shorter versions, the system now has a seamless aesthetic. This intake is designed to make a positive impact to the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimize the airflow, we have engineered an intake system which delivers on all fronts – sharpened throttle response, more torque and power, improving drive-ability and of course, an intoxicating V10 induction sound.

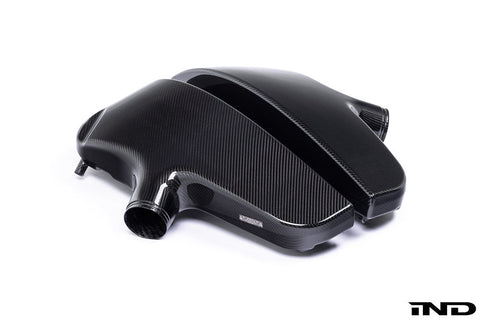

NOTE: Some photos show S85 Carbon Inlet Plenum, available separately.
Each kit consists of:
- 2 x 100% Pre Preg Carbon Fiber Housings with Integrated MAF Tubes
- Custom High Flow Air Filters
- 2 x Custom made EPDM Couplers
- CNC Machined Secondary Air Flow Breather Adapter
- Aluminum Intake Cowls
- Laser Cut Mounting Brackets
- Laser Cut and Neoprene Lined Heat Shields
- Coated Aluminum Upper and Lower Air Scoops
- OEM Spec Hose Clamps with High Quality Silicon Couplers
- OEM Quality Anti Vibration Mounts

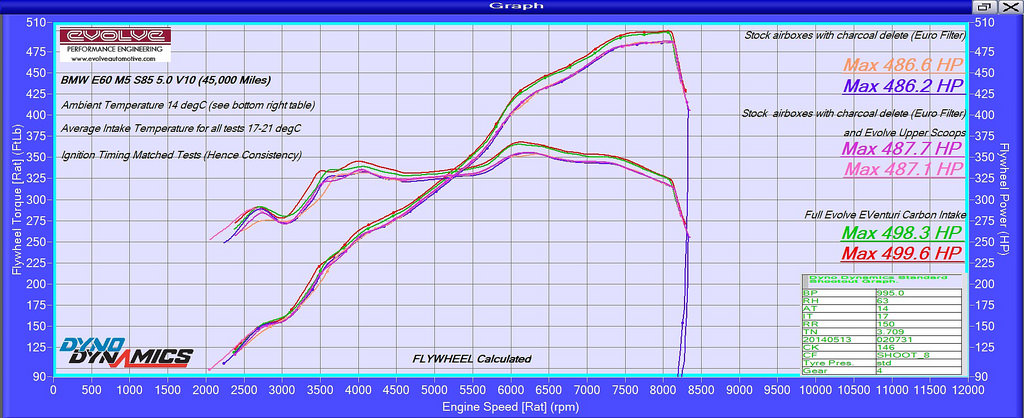

Dyno testing was carried out on a Dyno Dynamics DS450 Dynamometer. For the purpose of accurate testing all tests were matched based on: - Inlet Air Temperatures through in built IAT sensor in MAF via OBDII - Ignition Timing Matched (Ignition timing can vastly change from one run to the next) - Engine Temperature (Coolant and Oil) - Exhaust Gas Temperature - Two consistent runs recorded for each of the below tests Testing Procedure: - Test 1 : Stock car, stock tune, stock intake system and euro filters (equivalent to charcoal delete) - Test 2 : As above plus Eventuri Upper Intake Scoops - Test 3 : Stock car, stock tune, Full Eventuri VAi Kit
