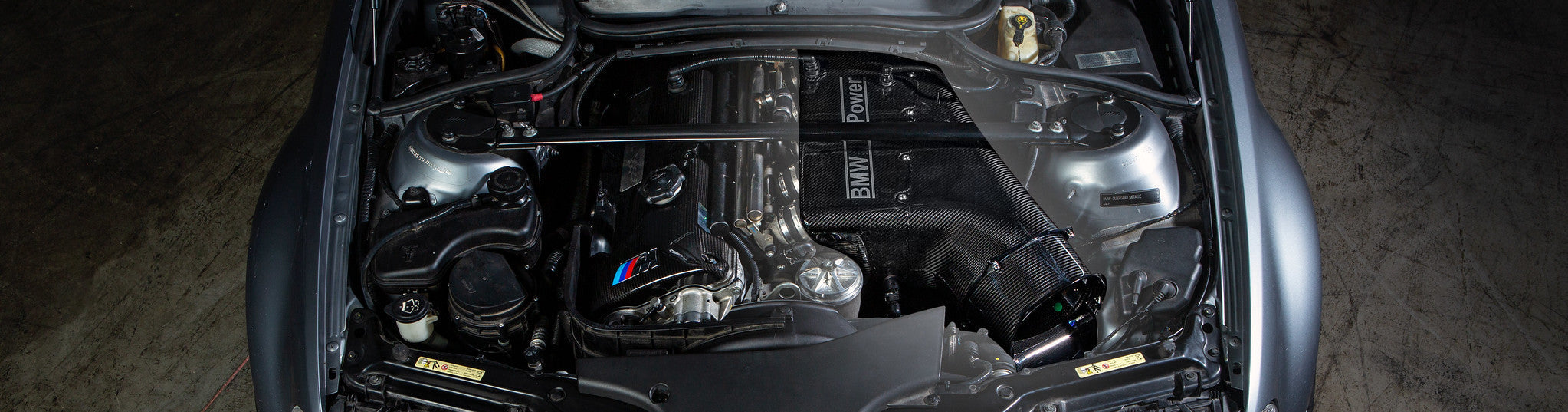

Karbonius E46 M3 CSL Carbon Airbox – S54 Induction Upgrade
Chris McGuire July 03, 2025
The BMW E46 M3 CSL is widely regarded as one of the most legendary M cars ever produced, and much of its mystique comes from the unmistakable sound and performance delivered by its carbon fiber airbox. While the CSL was never officially released in North America, its components—especially the intake system have become coveted upgrades among E46 M3 enthusiasts worldwide. That’s where Karbonius comes in. Based in Spain and renowned for their premium carbon craftsmanship, Karbonius has created what is arguably the most respected CSL-style airbox on the market. Constructed from 100% prepreg carbon fiber and cured in an autoclave at 125ºC, each airbox is hand-built under ISO 9001-certified quality standards, ensuring top-tier performance, precision, and reliability.
Introducing the Karbonius Carbon CSL Snorkel
To further enhance the performance of their intake system, Karbonius also developed a matching carbon fiber CSL-style snorkel, the perfect companion to either the Karbonius or OEM CSL airbox. Based on detailed 3D scans of the original plastic OE CSL snorkel, the Karbonius snorkel is constructed from 100% prepreg carbon fiber, cured in-house in the same ISO 9001-compliant autoclave facility. Weighing just 350 grams, it’s built for performance with form and function in mind. This snorkel directs cool air from the front lower bumper duct or foglight opening, significantly reducing intake temperatures compared to conventional setups that pull from inside the engine bay.
Performance Meets Precision Craftsmanship
The Karbonius airbox is based on a 3D scan of the original OE CSL unit but includes several enhancements:
- Carbon Fiber Trumpets: Lighter and more durable than the OEM plastic
- Optimized Trumpet Design: Larger 51.5mm diameter (vs. 50mm OEM) for better internal airflow
- Redesigned 6th Trumpet: Specifically engineered for improved air distribution
- Smoothed Internal Chamber: Sanded and clear-coated to reduce turbulence
- CNC-Machined & Anodized Aluminum Components: Including threads, hardware, and brackets for durability and fitment
- Perfect Weave Alignment: Seamless finish and airtight seal with neoprene foam gasket
This upgrade offers an appreciable gain in power with corresponding software and drastically enhances the intake sound, giving your S54 engine the exotic, high-pitched roar the CSL is known for.
Key Features
- Genuine power gains (up to 25hp, depending on tune and supporting mods)
- Signature CSL-style induction sound
- Lightweight – just 1.7 kg
- 100% prepreg carbon fiber
- Cured in autoclave
- Perfect fitment and OE-style appearance
- Individually numbered and authenticated
- 2-year manufacturer warranty
What’s Included
- Karbonius Carbon Fiber Airbox
- CNC Machined Aluminum Fittings
- Stainless Steel Hardware
- Ventilation Valve Bracket
- M Power Decal
- Certificate of Authenticity
Application Guide
- E46 M3 (S54)
- Z3M Coupe/Roadster (2001–2002, S54B32)
- Z4M Coupe/Roadster (E85/E86)
NOTE: To install on non-CSL models, an Alpha-N tune and additional conversion parts are required.
Recommended Installation Components
- IND CSL Install Kit (sold separately)
- BMW M3 CSL IAT Sensor
- Alpha N MAF-to-IAT Conversion Harness
- CSL Crankcase Vent Hose
- CSL Air Shut-Off Valve
- Optional SMG Reservoir & Bracket (for SMG-equipped models)
- BMW OE M3 CSL Air Filter by BMC
- Optional OE E46 M3 CSL Shortened Oil Dipstick*
- For 2005-06 models (and E8X Z4M), the larger pre-2005 throttle body to airbox boots are required
For SMG-equipped models, the fluid reservoir is mounted to the drivers' side strut tower.
*We recommend rotating the stock oil dipstick 180° instead of replacing it with the CSL-specific unit for better access.
This is more than a performance upgrade—it’s a piece of CSL heritage, engineered to deliver both form and function. For enthusiasts who demand the best in quality, sound, and performance, the Karbonius E46 M3 CSL-Style Carbon Airbox is second to none.
