The CSL Sound, Without the Compromise
For years, the BMW Z4M has been one of the most overlooked platforms to carry the legendary S54 engine. Sharing its DNA with the E46 M3, the Z4M delivers raw, analog performance, but when it comes to intake upgrades, owners have historically been forced to choose between sound and drivability.
The unmistakable CSL airbox sound has always been the benchmark. But achieving that sound typically required removing the MAF sensor and converting to Alpha-N tuning, often sacrificing cold-start behavior, throttle smoothness, and long-term reliability.
The Eventuri Hybrid Carbon Airbox System changes that completely.
This is not just another intake. It is a full re-engineering of the S54 intake path for the Z4M, delivering the induction sound enthusiasts want while preserving the drivability and refinement BMW originally engineered.
Why the Z4M Needed Its Own Solution
When Eventuri first introduced their Hybrid Airbox for the E46 M3, one of the most common questions was simple: will it fit the Z4M?
The answer was no.
The Z4M’s engine bay packaging and intake routing are fundamentally different. This meant a direct transfer of the E46 system wasn’t possible. Instead, Eventuri developed a completely new system from the ground up, specifically engineered around the Z4M chassis.
Unlike the E46 M3 version, the Z4M Hybrid Airbox is only offered as a complete system. The factory intake cannot be reused due to the airbox positioning and airflow path requirements. This led to the development of a bespoke intake system designed exclusively for the Z4M.
The result is a fully integrated package where every component works together, from the filter housing to the plenum, to deliver optimal airflow and fitment.
The Hybrid Concept: Sound Meets Function
Traditional CSL-style airboxes focus on sound and peak airflow, but they often compromise real-world drivability.
Eventuri approached the problem differently.
The Hybrid Airbox concept combines:
- The resonance and airflow characteristics of a CSL airbox
- The precision and stability of a MAF-based intake system
By retaining the OEM MAF sensor, the system maintains factory ECU control strategies. This eliminates the need for a tune while preserving smooth throttle response, cold starts, and consistent fueling.
At the same time, the carbon airbox is engineered to resonate under load, producing the aggressive, high-RPM induction sound that defines the CSL experience.
This balance between performance and usability is what makes the system unique.
Engineering the Airflow: The Eventuri Difference
At the core of the system is Eventuri’s patented Venturi carbon fiber housing. This is not a traditional open cone filter or heat shield design.
Instead, the housing is shaped to progressively reduce in cross-sectional area, accelerating airflow while maintaining laminar flow conditions.
This design achieves several key advantages:
- Increased airflow velocity into the plenum
- Reduced turbulence and pressure loss
- Improved volumetric efficiency
The result is a smoother, more direct airflow path from the filter to the engine.
Eventuri systems are extensively developed using CFD simulations and real-world testing to optimize airflow, intake temperatures, and overall performance. For additional technical reference, you can also view the official Eventuri product page.

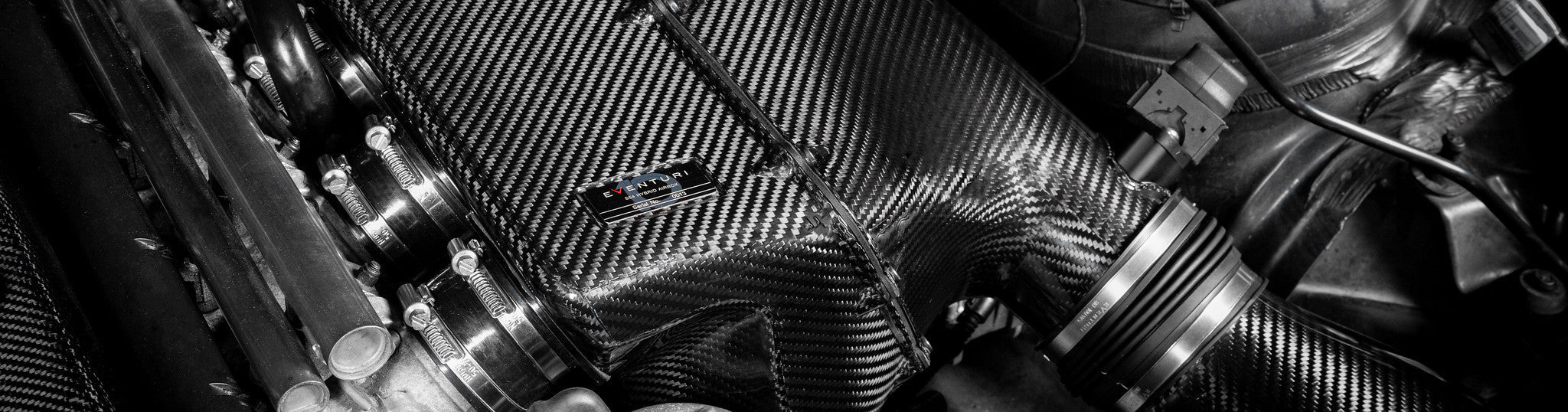

Carbon Airbox Design and Acoustic Tuning
The main airbox assembly is constructed from prepreg carbon fiber and designed not only for airflow but also for sound.
Under load, the airbox resonates in a way that amplifies the induction tone of the S54. This creates the signature CSL-style sound that builds as RPM increases.
Inside the airbox:
- Six precision-formed intake trumpets ensure even airflow distribution
- Thermoplastic construction allows for perfect internal geometry
- Stainless steel reinforcement rings prevent deformation under load
This ensures consistent performance over time, even under repeated heat cycles and aggressive driving conditions.

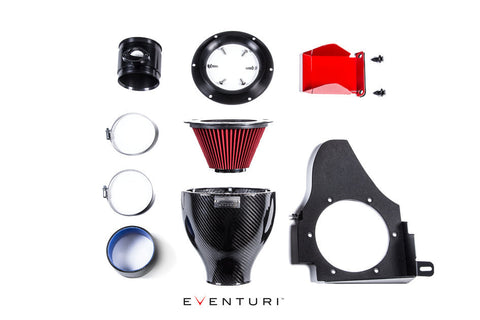

Integrated Intake System: Built for the Z4M
Because the Z4M cannot reuse its factory intake, Eventuri engineered a completely new intake system to pair with the airbox.
This includes:
- A carbon fiber filter housing utilizing the Venturi design
- A bespoke high-flow dry filter
- A custom MAF tube for precise sensor placement
- A cold air scoop that channels ambient air directly into the intake
The intake housing removes the restrictive and turbulent airflow path found in the OEM airbox, replacing it with a smooth, continuous transition into the plenum.
Additionally, the system is fully sealed, helping to reduce heat soak and maintain lower intake air temperatures during repeated pulls or spirited driving.
True Plug-and-Play Performance
One of the most significant advantages of the Eventuri Hybrid Airbox System is its simplicity.
Unlike traditional CSL conversions, this system:
- Requires no ECU tune
- Retains the OEM MAF sensor
- Includes all breather hoses and hardware
- Installs using factory mounting locations
This makes it a true plug-and-play upgrade, delivering performance and sound without the complexity or cost typically associated with airbox conversions.
Based on E46 M3 data, similar systems have demonstrated gains of approximately:
- 20-22 horsepower
- 8-13 ft-lb of torque
These gains come not just from peak airflow, but from improved efficiency and reduced restrictions throughout the intake system.
Cold Air Delivery and Heat Management
To support consistent performance, Eventuri includes a dedicated cold air scoop.
This component feeds ambient air directly into the intake opening, ensuring the system is constantly supplied with cooler, denser air.
The effectiveness of this design is evident even after aggressive driving, where the intake components remain significantly cooler compared to traditional exposed filter setups.
By combining a sealed housing with directed airflow, the system minimizes heat soak while maximizing air density.

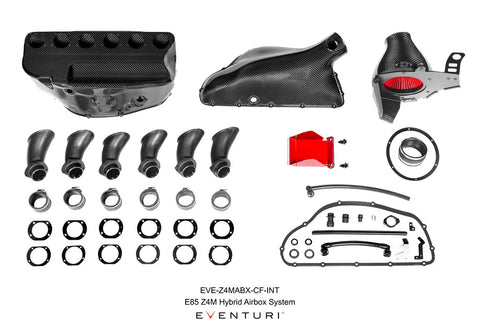

A Complete System, Engineered as One
The Eventuri Z4M Hybrid Airbox is not a collection of individual parts. It is a fully integrated system where each component is designed to complement the others.
From the airbox resonance characteristics to the intake airflow path, every detail has been engineered to work together.
This is why the system is only offered as a complete kit.
It ensures:
- Proper fitment within the Z4M engine bay
- Optimized airflow from start to finish
- Consistent performance and reliability
Transforming the Z4M Driving Experience
The Z4M has always been a driver’s car, defined by its high-revving S54 and raw connection to the road.
With the Eventuri Hybrid Airbox System, that experience is elevated to a new level.
The induction sound becomes more pronounced, building into an aggressive, race-inspired tone as RPM climbs. Throttle response feels sharper, and the engine breathes more freely across the rev range.
At the same time, the car retains the refinement and drivability expected from a factory-calibrated system.
Final Thoughts
For Z4M owners, this system solves a problem that has existed for years.
It delivers:
- The sound of a CSL airbox
- The drivability of a factory intake
- The performance of a fully engineered airflow system
Without compromise.
This is not just an upgrade in sound or aesthetics. It is a complete redefinition of how the S54 breathes in the Z4M platform.
