BMW Floating Center Caps: Sizing, Fitment, and Custom Options

BMW’s floating center caps are one of the most elegant features inspired by the brand’s ownership of Rolls-Royce. These caps use a weighted internal mechanism to keep the BMW roundel upright—even while driving—adding a premium touch to your wheels.

Unlike traditional caps that spin with the wheel, BMW floating center caps stay level, offering a subtle, high-end visual detail. But before purchasing, it’s essential to understand sizing, compatibility, and available custom options—especially for those looking to stand out.

Standard floating cap vs. IND’s gloss black floating cap

Official Sizes: BMW Floating Center Caps

BMW offers two floating center cap sizes:

• 56mm – For most modern BMWs with a 5x112 bolt pattern and 66.6mm center bore
• 68mm – For older BMWs using a 5x120 bolt pattern and 72.6mm center bore

Measured dimensions differ slightly:

• 56mm caps: ~53.2mm
• 68mm caps: ~64.45mm

Important Note: These caps do not fit all OEM wheels—even within the supported size groups—and rarely work with aftermarket wheels. The only confirmed exception is Titan7 wheels.

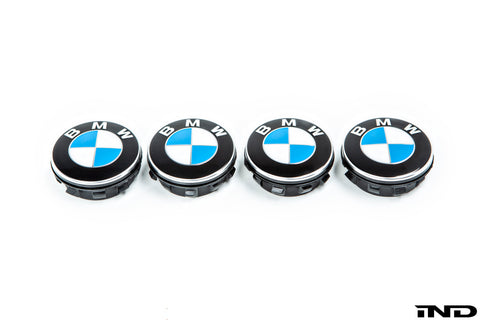

BMW 56mm and 68mm floating caps with the chrome edge

Custom Floating Center Caps by IND

At IND, we take things a step further. Using genuine BMW cores, our in-house paint shop offers exclusive floating cap customizations:

🔹 Gloss Black Floating Caps

Standard 56mm and 68mm caps, professionally masked and painted with gloss black outer edges. Each set takes over 30 minutes of precise tape work before paint is even applied.

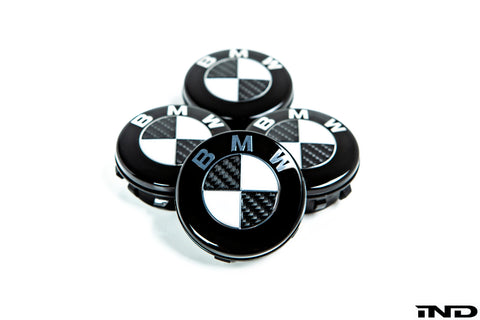

🔹 Carbon Fiber Floating Caps

We overlay carbon fiber onto the blue section of the BMW roundel and add a gloss black outer edge. Available in both 56mm and 68mm sizes for an OEM+ carbon look.

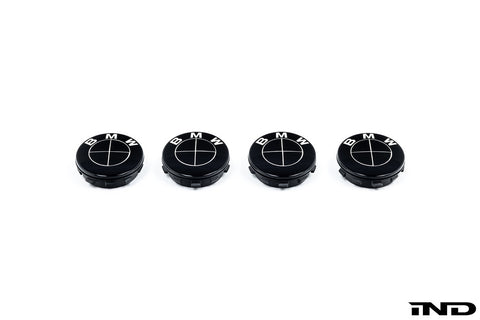

🔹 Black Series Floating Caps

Our most stealthy option. The inner chrome and lettering are taped off, and the entire cap is refinished in BMW gloss black. Each cap is hand-sanded, painted, clear-coated, and polished in-house.

🔹 Heritage Floating Caps (56mm Only)

BMW never released a floating version of the iconic 50th Anniversary roundels—but we did. We bond a standard heritage cap to the floating base using brand-new OEM parts, creating the only 56mm floating heritage center cap on the market.

Benefits of BMW Floating Center Caps

• BMW logo stays level while driving
• Premium OEM+ appearance
• Available in 56mm and 68mm for wide model coverage
• Genuine BMW quality and IND-exclusive custom options

56mm OEM Fitment (5x112 Bolt Pattern | 66.6mm Center Bore)

Fits OEM wheels on:

• F39 X2
• F44 2-Series Gran Coupe
• F48 X1
• F90 M5
• F92 / F93 M8
• F95 X5M / F96 X6M
• F97 X3M / F98 X4M
• G01 X3 / G02 X4
• G05 X5 / G06 X6 / G07 X7
• G11 / G12 7-Series
• G15 / G16 8-Series
• G20 3-Series
• G22 / G23 / G26 4-Series
• G29 Z4
• G30 5-Series
• G42 2-Series
• G80 M3 / G82 / G83 M4
• G87 M2
• G90 / G99 M5

68mm OEM Fitment (5x120 Bolt Pattern | 72.6mm Center Bore)

Fits OEM wheels on:

• E31 8-Series
• E36/7 Z3 & Z3M
• E38 7-Series
• E39 5-Series & M5
• E46 3-Series & M3
• E52 Z8
• E53 X5
• E60 M5 / E62 / E63 M6
• E6x 7-Series
• E82 1-Series & 1M
• E83 X3
• E84 X1
• E85 / E86 Z4 & Z4M; E89 Z4
• E90-E93 3-Series
• F0x 7-Series
• F06 / F10 M5 / F1x M6
• F15 X5 / F16 X6
• F25 X3 / F26 X4
• F20 1 Series
• F22 2-Series
• F30 3-Series
• F32 / F33 / F36 4-Series
• F80 M3 / F82 / F83 M4
• F85 X5M / F86 X6M
• F87 M2

Final Fitment Tips

BMW floating caps are a subtle yet standout detail for enthusiasts—but they aren’t universal. Before ordering:

• Confirm your BMW’s bolt pattern and center bore
• Verify compatibility with your OEM wheel design
• Avoid aftermarket wheels unless specifically confirmed

Have questions? Contact the IND team—we’re happy to help confirm fitment or walk you through our custom options.
