The release of the MMX Performance Aluminum BMW DCT Oil Pan represents a significant step forward in addressing one of the most common limitations within BMW’s dual-clutch transmission system. While the factory plastic sump meets basic requirements for daily driving, it falls short under sustained load, elevated temperatures, and aggressive driving conditions. MMX set out to engineer a complete solution that not only replaces the OEM unit, but meaningfully improves performance, durability, and long-term reliability.
Developed and manufactured in the United Kingdom following extensive testing and validation, the MMX DCT oil pan is precision machined from 6061-T6 billet aluminum. This material choice alone provides a substantial increase in structural integrity compared to the factory plastic design, eliminating the risk of cracking, warping, or deformation over time.
Increased Capacity and Thermal Control
One of the most notable improvements is the increase in oil capacity. The MMX pan adds up to 1.4 liters, or 1.48 quarts, over the OEM unit, which plays a critical role in maintaining stable operating temperatures and consistent lubrication under load. Increased fluid volume allows for better heat absorption and slower thermal saturation, which is especially important during track use or extended spirited driving.

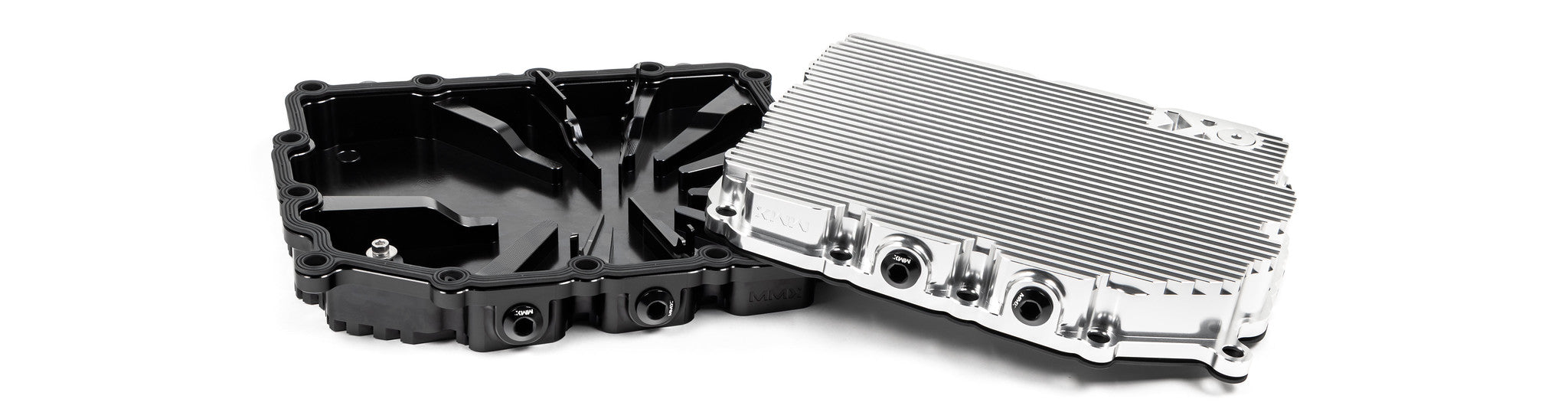

To further support thermal management, the external design incorporates aggressively machined cooling fins. These fins significantly increase surface area, allowing for improved heat dissipation and helping to maintain optimal transmission temperatures. This is a key advantage over the smooth plastic surface of the factory pan, which offers minimal thermal efficiency.
Internal Engineering and Oil Control

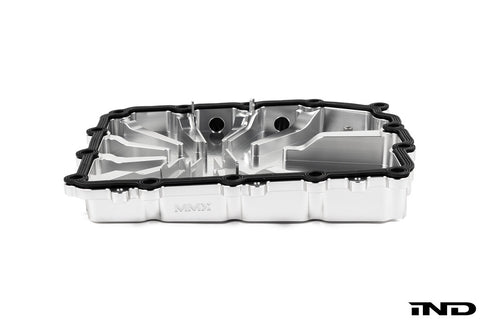

Internally, the MMX oil pan is engineered with an integrated baffling system designed to control fluid movement under high lateral and longitudinal forces. During aggressive driving, uncontrolled oil movement can lead to momentary starvation, resulting in inconsistent pressure and potential long-term damage.
The internal architecture of the MMX pan ensures consistent oil pickup and stable hydraulic pressure, both of which are critical for proper DCT clutch operation and overall gearbox longevity.
OEM Integration and Installation
Installation has also been carefully considered. Unlike some aftermarket solutions that require sealant, the MMX oil pan is supplied with an OEM-specification gasket. This allows for a clean, direct-fit installation while maintaining compatibility with the factory BMW DCT filter system and reusing the OEM magnet.
When compared directly to the factory plastic sump, the difference in material strength, cooling capability, and overall engineering approach is immediately apparent.
Track Capability and Expandability
For higher-performance applications, MMX has integrated three additional -8AN ports into the design. These ports provide the flexibility to add external oil cooling systems or temperature sensors, making the pan highly adaptable for track builds and high-output vehicles where thermal control is critical.
The oil pan is available in both clear anodized and black anodized finishes. Both options provide corrosion resistance while maintaining a refined OEM+ appearance that integrates seamlessly into the drivetrain.
Product Details
- Designed and manufactured in the UK
- Precision machined from 6061-T6 billet aluminum
- Increased oil capacity of up to 1.4 liters, or 1.48 quarts, over OEM
- Integrated external cooling fins for improved heat dissipation
- Internal baffling system to prevent oil starvation under load
- Retains compatibility with OEM BMW DCT filter
- Supplied with OEM-specification sump gasket for direct installation
- Three additional -8AN ports for external cooling or sensor integration
- Reuses OEM magnet
Available Finishes
- MMR40-1601: Black anodized
- MMR40-1602: Clear anodized
Vehicle Applications
- BMW 1 Series (E82)
- BMW 1 Series (E88)
- BMW M3 (E90 / E92 / E93)
- BMW M2 (F87)
- BMW M2 Competition (F87)
- BMW M3 (F80)
- BMW M4 & M4 GTS (F82 / F83)
- BMW M5 (F10)
- BMW M6 (F12 / F13)
- BMW M6 Gran Coupe (F06)
- BMW Z4 (E89)
Recommended Maintenance Components
Installation Notes
- Transfer the 14 steel inserts from the OEM plastic sump to the MMX aluminum sump prior to installation
- Ensure proper gasket alignment and correct torque sequence during installation
Torque Specifications
- Magnet: 4 Nm, or 2.95 ft-lbs
- Oil pan bolts: 10 ±1 Nm
- Fill plug: 35 Nm
- Drain plug: 8 Nm
About MMX Design
MMX takes a fully integrated approach to product development, with all design, scanning, and prototyping performed in-house in the UK. Using advanced 3D scanning and CAD technology, each component is engineered with precision before being validated through real-world testing.
This in-house process allows for complete control over quality, fitment, and performance, ensuring that every product meets the standards expected from a motorsport-driven engineering team.
Everything is engineered internally from concept to final production, with a focus on function, durability, and proper engineering without compromise.
